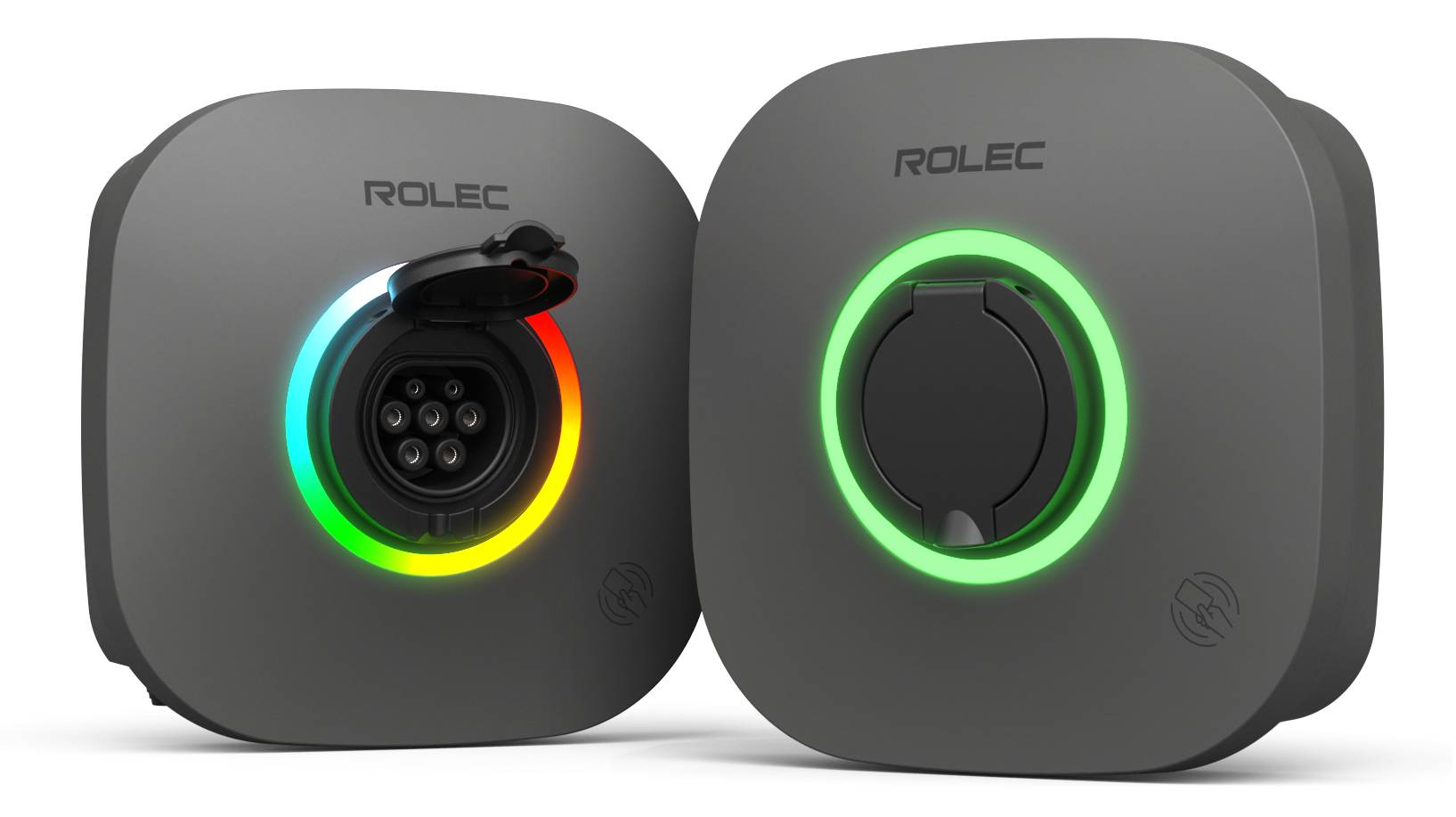

Rolec EVO – Universal Socket – EV Charging Unit - Electric Vehicle Charging Point

Name: Rolec EVO – Universal Socket – EV Charging Unit - Electric Vehicle Charging Point
Brand: Rolec EV
SKU: c7gVHiA5Uj52zqvS8HJQSk

Verified by manufacturer 2 days ago

EVO 1 x Up to 7.4 kW (32A) Universal Charging Socket (ROLEC5011) EVED-V01-R0

An intelligent electric vehicle charging unit for domestic and light commercial applications.

Jump to:

Application

Suitable for use externally for vehicle charging.

Universal electric vehicle charging point, available in single phase with 7.4 kW output or single/three phase with 22 kW output.

Features and benefits:

Plug and go, mobile app and radio-frequency identification (RFID) controlled charging.
Universal socket.
Two EVO RFID charging cards included.
Scheduled and off peak charging.
Solar charging integration suitable.
Protective multiple earthing (PME) fault detection (no earth rod required).
Dynamic load balancing.
Open charge point protocol (OCPP) 1.6 compliant.
30 mA a.c. Type-A and d.c. 6 mA protection.
LED charging status.
UK Smart Charge Point Regulations Compliant including tamper security.
4G (22 kW model only)/ Wi-Fi/ ethernet connectivity.
IP54 and IK10 rated.
Corrosion and fire resistant.
Wall or post mounting options.
OZEV grant fundable (UK only).

Color	Grey
Finish	Matt
Material	Aluminium Acrylonitrile butadiene styrene (ABS) Polycarbonate
Shape	Square
Length	260 mm
Width	112 mm
Height	260 mm
Warranty description	Five year

Uniclass	Pr_65_72_97_29 Electric vehicle charging pointsPrimary
CAWS	V90/445 Electric vehicle charging points

SKU Code	ROLEC5011
GTIN/EAN	5060723057342

Classification data
Standards	To BS EN IEC 61851-1.
Charging mode	3.
Input voltage	230 V a.c. single-phase.
Input current	32 A.
Rated frequency	50/60 Hz.
Power output	7.4 kW.
Outlet type	Single, Type 2 socket, to BS EN 62196 series.
Mounting	Surface-mounted. Pole-mounted.
Impact protection (minimum)	To BS EN 62262, IK10.
Ingress protection (minimum)	To BS EN 60529, IP54.
Circuit protection	Residual current protection (a.c. 30 mA Type A and d.c. 6 mA with test button). Lightning surge. Over temperature protection. PME fault detection (no earth electrode/ rod required). Supports automatic dynamic load balancing.
Accessories	EVFP0035 Rolec universal mounting post (fits up to 2 chargers). EVFP0120 EVO plate for mounting post. EVPP0100 5 m 32 A Type 2 to Type 2 charging cable. EVPP0107 10 m 32 A Type 2 to Type 2 charging cable. EVIN0010 20 A single-phase EV consumer unit with Type A RCBO. EVIN0015 40 A single-phase EV consumer unit with Type A RCBO. EVRS0030 Remote wall mount for Type 2 charge gun holster. ACSR5011 EVO single-phase solar CT clamp kit.
Connectivity	Wi-Fi and ethernet connectivity.
Dimensions	260 x 260 x 112 mm. Guidance for specification option: width x height x depth.
Weight	<3 kg.
Body	Unit: PC/ ABS alloy. Heat sink: Aluminium alloy.
Colour	Daytona grey.
