Roflex Airtight Grommets - Pipe Sealing Grommet

Name: Roflex Airtight Grommets - Pipe Sealing Grommet
Brand: Pro Clima
SKU: 43Zvis1g84G7etfSFof7g3

Verified by manufacturer 17 days ago

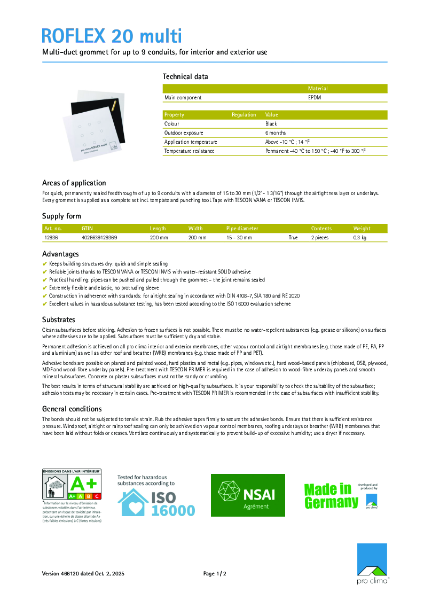

ROFLEX 20 multi (for nine 15–30 mm pipes)

Pro Clima

Third party certifications:

Passive House Institute - Certificate
Certificate type

A range of sealing grommets for pipes Ø 15–320 mm, for interior and exterior use.

Jump to:

+44 (0)1228 711511 Website

Application

Internal or external roofs, walls and floors on pipes and ducts of 20–300 mm diameter. When used with Tescon Vana airtight tape as the adhesive, Roflex will stick to any air or windtight membrane, smooth planed or painted timber, wood-based panel or board, concrete, metal and plastic. The end of the pipe or duct must be accessible so it can be fed through the grommet.

Description

Roflex grommets are heat-resistant EPDM rubber seals for airtight sealing around circular pipes and ducting. For 15–320 mm diameter pipes, Roflex is available as a single pipe grommet with self-adhesive backing or a multiple pipe grommet that needs to be taped. For pipes over 30 mm and up to 320 mm diameter, Roflex can seal one pipe per grommet and is sealed with Tescon Vana airtight tape. Tescon Vana is a tape that has been tested and proved to remain airtight for 100 years. Roflex of 30 mm and larger and sold in pack sizes of 10 or 15 grommets do not come with tape.

Features and benefits:

Does not stick to the pipe.
Highly adaptable.
Easily seal around all common pipe and duct sizes.
Stretchy EPDM rubber allows the user to easily seal around pipes and ducts with confidence in achieving a permanent airtight seal.
The grommet allows for pipes and ducts to be re-positioned after installation without affecting the airtight seal.
Highly versatile with multiple sizes available to seal any pipe/duct between 15–320 mm diameter.

General information

Color	Black
Material	Rubber
Shape	Square
Length	140 mm 200 mm 250 mm 300 mm 450 mm 500 mm Show more
Width	140 mm 200 mm 250 mm 300 mm 450 mm 500 mm Show more
Warranty description	Ten year

Uniclass	Pr_65_52_61_64 Pipe sleeve sealsPrimary
CAWS	P31/40 Sealing around services P31/710 Sealing J41/480 Pipe collars J42/480 Pipe collars J31/357 Pipe collars

Specification data - Pipe sleeve seals

Materials	-
Body	EPDM rubber.
Seal	EPDM rubber.
Size	200 x 200 mm.

Pipe diameter	Nine pipes with a diameter of 15–30 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	Not recyclable due to the risk of damage when removing at end of life
