ROCKWOOL® FIREPRO® Firestop Pipe Collars

ROCKWOOL® FIREPRO® Firestop Pipe Collars

ROCKWOOL Ltd

ROCKWOOL® FIREPRO® Firestop Pipe Collars provide a simple and effective method of firestopping plastic pipework where it passes through fire resistant walls and floors in a retrofit situation.

Jump to:
+44 (0)1656 862621 www.rockwool.co.uk
Description

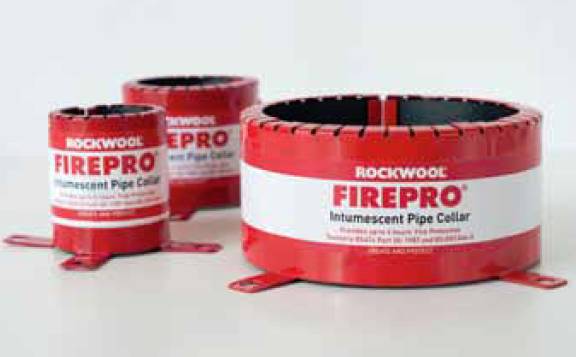

A powder coated steel sleeve containing a flexible graphite based intumescent liner manufactured to suit the pipework to be fire stopped and designed for sealing UPVC, polypropylene, HDPE and ABS plastic pipes.

Integral toggles are opened up and the collar is simply fitted around the plastic pipe. The toggles are closed and the collar is pushed flush to the surface of the wall or underside of the floor. The collar is then securely fastened to the structure by means of fire resistant fixings threaded through fixing tabs. Under fire conditions the intumescent material swells filling the void left by the burnt out plastic.

Where fire protection is required from both sides of the wall, a pipe collar will be required each side of the wall.

Advantages:

  • Simple to install.
  • Water resistant.
  • Maintenance free.
  • Available to suit pipe sizes ranging from 55 to 355mm O.D.
  • Available from order in 48 hours.

General information

Uniclass 2015

Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary

CAWS

P12/370 Pipe collar

P12/43 Pipe collar - concealed intumescent

Specification data - Concealed intumescent pipe collars

Product Reference

ROCKWOOL Firepro Pipe Collars

O/A Diameter

55 mm

63 mm

82 mm

110 mm

125 mm

160 mm

Accessories

ROCKWOOL Acoustic Intumescent Sealant

ROCKWOOL Firestop Compound

32 mm long steel self-tapping screws

Standard product features

Performance:

Tested to BS476 Part 20, Firestop Pipe Collars provides up to 4 hours fire protection.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 4 1.3
Revit
Revit 2016 5 2.0
AECOsim
- 1.0
Vectorworks
- 1.0
ARCHICAD
- 1.0
Download now from NBS National BIM Library
