Robusta Single Leaf - Gates

Application

  • Factories and workshops.
  • Administrative centres.
  • Public buildings.
  • Play and sport grounds.
  • Schools.
  • Parks.
  • Airports.
  • Military sites.

Description

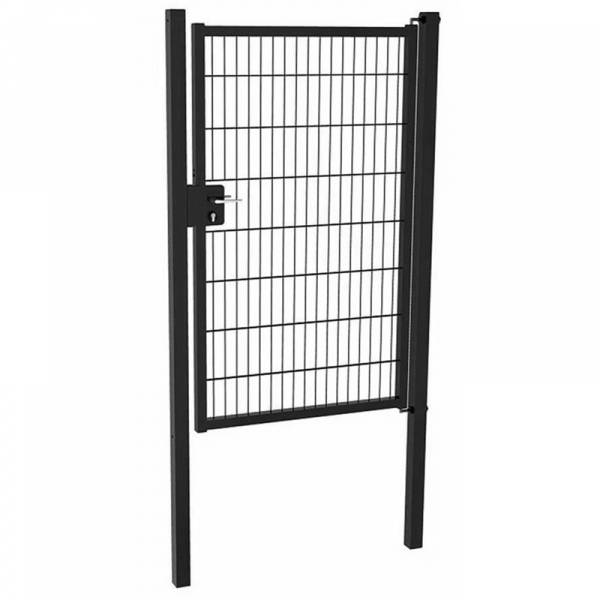

Perimeter security single leaf swing gate including welded mesh infill, adapted posts, hinges, and lock and ground bolt system.


Features and benefits:

  • Frame, square bars and post system are all of rigid construction.
  • Designed to minimize the number of components required for fence assembly.
  • The locking system allows optimal setting and is easy to install.
  • Adjustable hinges allow each gate wing to swing through 180°.
  • Finished with a high-quality coating.
  • Designed for quick installation.
  • Manual operation.
  • Free-standing.
  • Infills are available to match chosen fence, and will be fully welded to the gate.
  • Supplied with a profiled cylinder lock and three keys.
  • CE-marked and manufactured in accordance with 89/106/CE, and type tested according to EN 13241-1 for industrial, commercial and garage doors and gates.

General information

Finish

Polyester powder coated

Shape

Rectangular

Square

WarrantyDescription

Ten years

Uniclass 2015

Pr_30_59_34_14 Carbon steel gatesPrimary

CAWS

Pr_30_59_34_14 Loose laid gas retardant damp proofing

Primary

Q40/40 Steel

Q40/560 Steel

Specification data - Carbon steel gates Enhanced data

Standard

EN 13241-1, EN 10219-1, EN 10088-3, ISO 9227, ISO 16474-3, ISO 1461.

Dimensions

-

Span

1000 mm.

1200 mm.

1500 mm.

2000 mm.

2500 mm.

3000 mm.

4000 mm.

4500 mm.

5000 mm.

Special order.

Height

1030 mm.

1230 mm.

1530 mm.

1730 mm.

2030 mm.

Special order.

Gate leaves

Frame made of profile tube 60 x 40 x 1.5 mm (up to gate wing width 2000 mm) or 60 x 60 x 2 mm, with welded square bars 25 x 25 mm, welded in at a distance of 110 mm between the bars. Profiles of the gate wing miter welded.

Finish as delivered

-

Applied finish

Galvanized and polyester powder-coated.

Product Reference

Robusta Single Leaf - Gates

Type

All gate wings are exchangeable. Opening to the left or right, inwards and outwards is also possible – consult manufacturer for information.

Colour

Green.

RAL 6005.

Black.

RAL 9005.

Special order.

Consult manufacturer and insert requirements.

Infill

Consult manufacturer and insert requirements.

Operation

Handle-operated.

Key-operated.

Accessories/ Other requirements

Not required.

Concealed mortice lock.

Fully adjustable hinges.

Rear-hung to prevent tampering.

Lockable ground bolts.

Slip latch.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

1.3
Revit

Revit 2016

1

1.3
Download now from NBS National BIM Library
