RMG600+ - Raised Access Floor
Verified by manufacturer 3 months ago
Kingspan RMG600+ PSA medium grade steel encapsulated particleboard, loose-laid raised access floor panels, with -3.04kg of CO2e (A1-A3) and a minimum of 86% recycled content.
Application
Commercial office use
Description

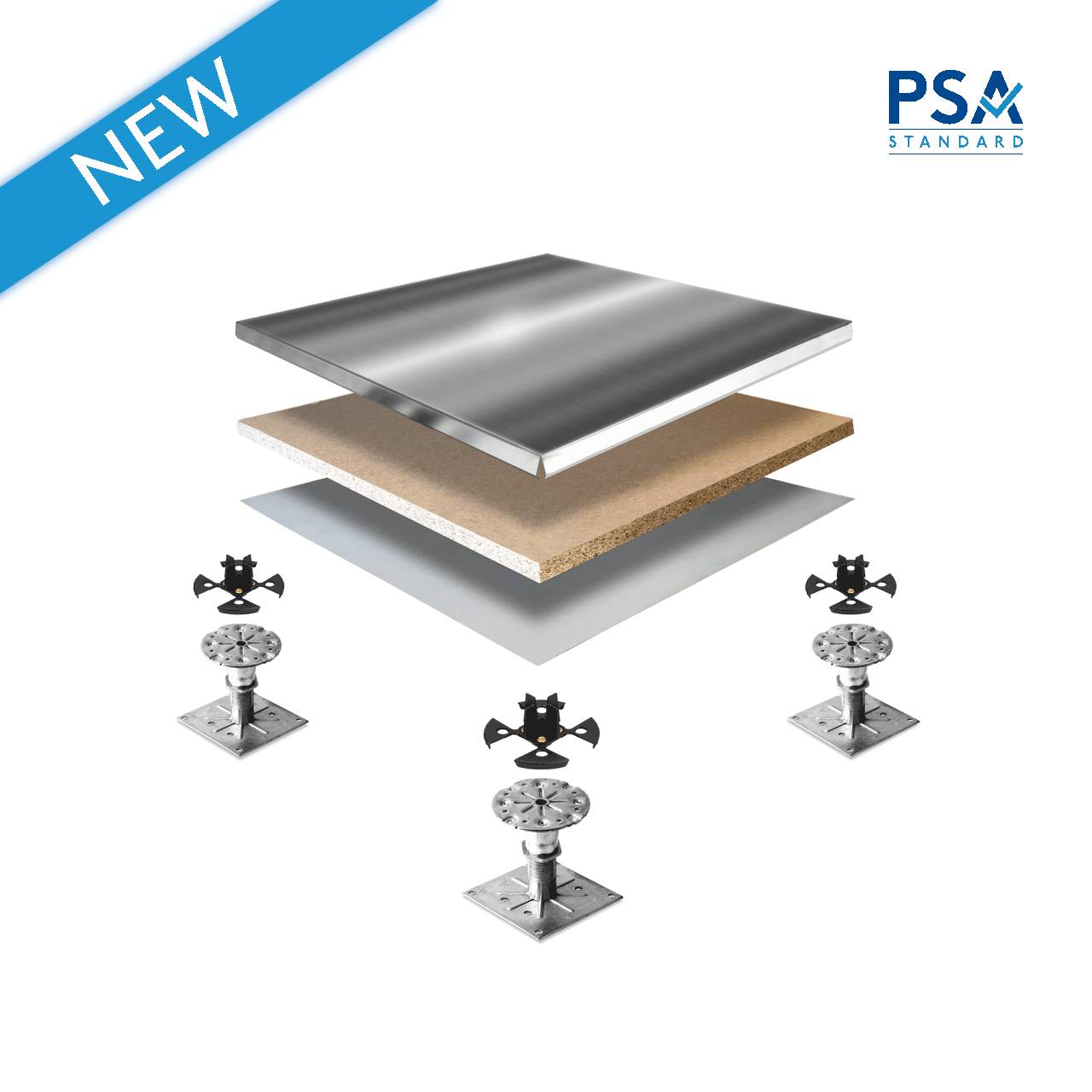

PSA MOB PF2 PS/SPU medium grade steel encapsulated particleboard, loose-laid raised access floor panels.
Features and benefits:
- Contains -3.04kg of CO2e (A1-A3), 57% reduction (A1-C) per panel compared to prior EPD verified to the EN15804+A2 : 2019 Standard.
- High shine finish.
- High edge strength reducing edge to edge deflection.
- Precision construction and location for an accurate floor grid.
- Solid underfoot.
- Steel wrap-around design ensures excellent electrical continuity is maintained.
- Good acoustic performance.
- Safe and easy access.
- Excellent lateral stability.
- 600 x 900 mm oversize panels available in order to minimize perimeter cutting.
- The system meets EN 13501 Parts 1 and 2 and also its construction provides Class 0 to BS476-6:1989 & BS476-7:1997 fire rating.
General information
Color | Silver |
Finish | Galvanized |
Material | Particleboard Steel |
Shape | Square |
Length | 600 mm |
Width | 600 mm 900 mm |
Height | 31 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels K41/315 Floor panels |
Specification data - Raised access floor systems
System performance | Structural grade to PSA MOB PF2 PS/SPU for raised access floors: 2021. |
Support structure type | Access floor pedestals - Alpha V, steel coated with clear passivatio.Guidance for specification option: For voids between 25–610 mm. Floor void heights from 25—1200 mm are available using standard pedestals. For heights outside of this range alternative pedestals are available. Consult manufacturer for details. |
Pedestal fixings | Acoustic adhesive.Standard adhesive. |
Raised access floor surface | Galvanized steel raised access floor panels. |
Barriers in floor void | |
Plenum barriers | Neoprene gaskets.Guidance for specification option: This system can be supplied with neoprene gaskets to minimise air loss through the raised floor surface from the underfloor plenum to aid air circulation, distribution and management. Not required. |
Fire classification | To BS 476-6 and BS 476-7, Class 0. |
Sound performance | Airborne Insulation (Dnfw): 43 dB, Impact Insulation (Lnfw): 67 dB. |
Fire resistance | REI30r. |
Reaction to fire | To EN 13501:1, Bfl-s1. |
Fixing | Not required. Simploc Screw Down. Guidance for specification option: This system is available with pre-drilled holes allowing the panels to be screwed down to the pedestals whilst still providing full access to the floor void. |
Panel size | 600 x 600 mm. 600 x 900 mm. Guidance for specification option: Oversize panels available in order to minimize perimeter cutting. |
Edging | Steel wrap. |
Core | 30 mm high density particle board. |
Panel Thickness | 31 mm. |
Weight | 32.34 kg/m² of system . |
System performance | Point load 25 x 25 mm: 3 kN. Load over 300 x 300 mm: 4.5 kN. Uniformly distributed 8 kN/m2 |
Stringers | Clip-on stringer. Guidance for specification option: < 610 mm void heights. Screw-down stringer. Guidance for specification option: > 610 mm void height. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Particleboard Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | -3.04 kg CO₂ eq/kg Self declared Guidance for specification option: per panel Manufacturer guidance-3.04kgco2e per panel |
Recyclability | 99 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 86 % Guidance for specification option: A minimum of 86% recycled content |
Literature
RMG600+ EPD
RMG600+ Material Passport

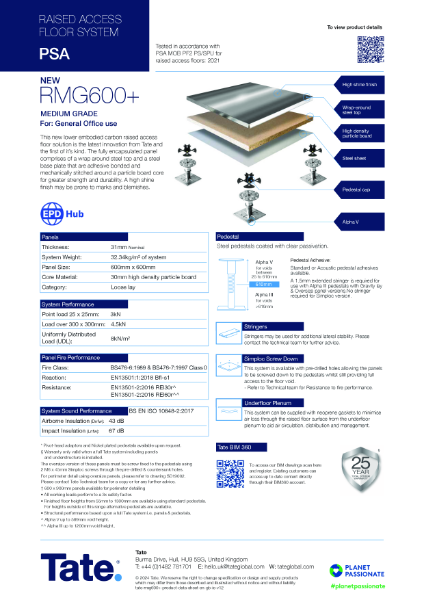

New Kingspan RMG600+ Product Datasheet (GB)
