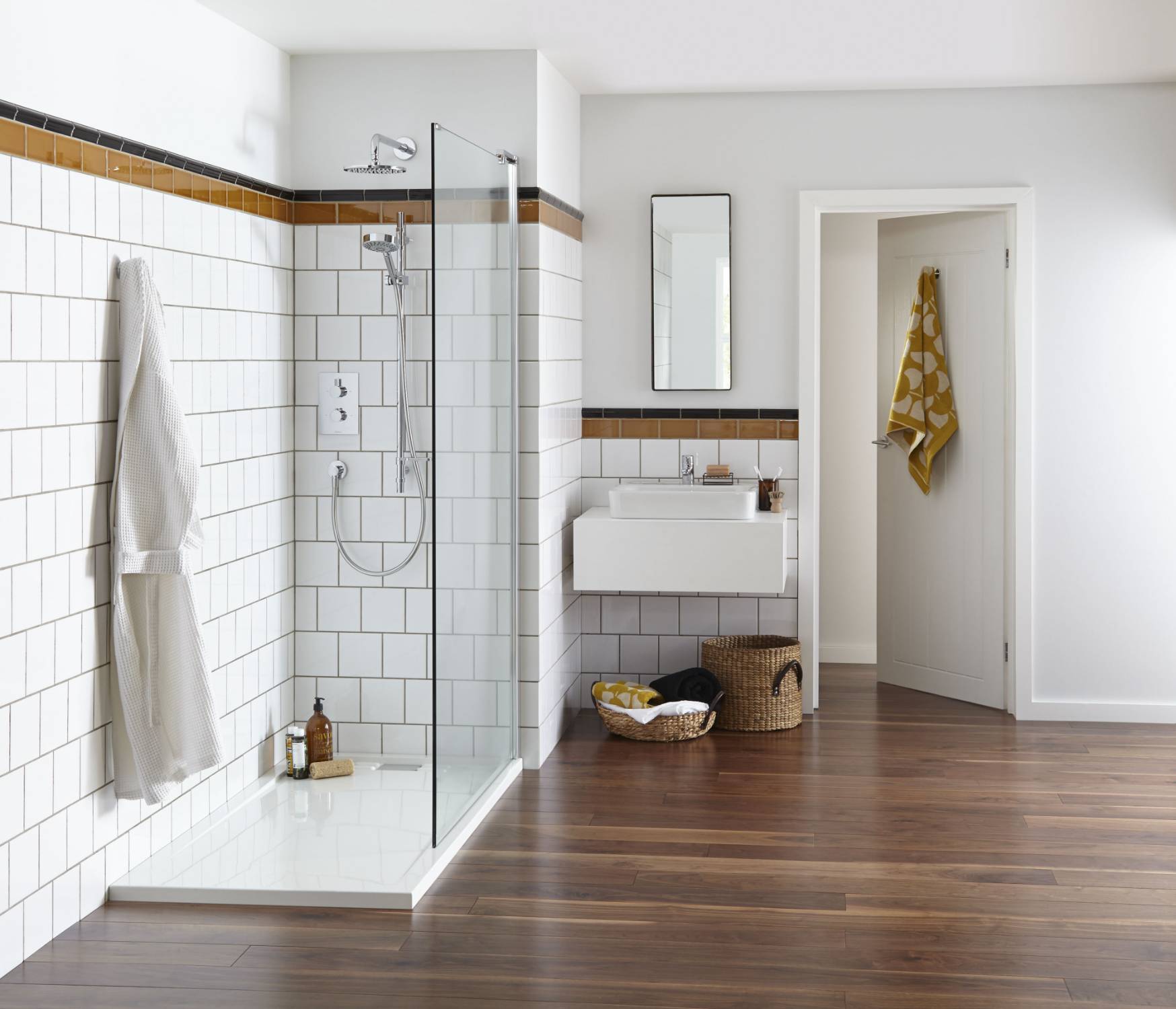

RISEDCV - Dual Outlet Mixer Shower (Valve only)
Application

Suitable for use in domestic bathrooms.

Description

Thermostatic dual control valve mixer shower.

Features and benefits:

  • Designed with clean, simple lines, and manufactured with quality materials.
  • Available in single, divert or three-way solutions.
  • Includes temperature override button.
  • Divert system option available with RSDCV002 and RSDCV003 variants.
  • Suits high pressure, combination boiler and boosted gravity water systems.
  • Option of metal control levers - consult manufacturer for details.
  • Five-year guarantee.
  • Matching shower/ bath filler models available (specified separately).

Applications:

Suitable for use in domestic bathrooms.

General information

Color

Chrome

Features

Integrated 2 way divert plus additional flow control outlet, Temperature override button

WarrantyDescription

5 year warranty

Uniclass 2015

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Specification data - Shower fittings package

Product Reference

Rise™ DCV

Mixer valve

Rise™ DCV - RSDCV001

Mixer valve, 210 mm height.

Rise™ DCV - RSDCV002

Divert mixer valve, 210 mm height.

Rise™ DCV - RSDCV003

Three-way mixer valve, 290 mm height.

Rail

Not required

550 mm shower rail system - OPN6001

900 mm shower rail system - OPN6002

900 mm shower rail system with adjustable fixings - OPN6002

Accessories

Insert requirements from manufacturer's literature, many options available.

Standard product features

Finish:

Chrome.

Control plate size (h x w x d):

140 x 45–60 mm. Includes 25 mm levers which can be inserted if required.

Valve:

  • Inlet centres: 140 mm.
  • Inlet fitting connections: 3/4" BSP female inlet connections (suitable fittings required).
  • Inlet supply positions: Hot/ left, cold/ right.
  • Outlet connections: 3/4" BSP female connections (suitable fittings required).

Pressure requirements:

1–5 bar (static).

Supply temperature:

  • Cold: 5–20°C.
  • Hot: 55–65°C.

Product Options

Design:

As well as being able to choose from individual package items, kits are also available, consult manufacturer's literature for information.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
Revit 2017 1 2.1
Download now from NBS National BIM Library
