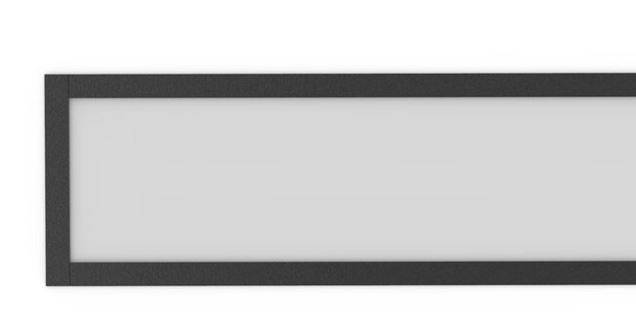

Rio Recessed Linear Lighting
Recessed linear LED luminaire with trim.
Suitable for Cat A and Cat B office fit-out, retail, architectural applications, educational spaces, galleries and lobby areas.
Performance driven recessed linear profile with trim.
Features and benefits:
- Designed with simplicity and attention to detail.
- Contemporary, architectural design.
- Provides a line of continuous light with a modern black trim.
- A range of size and colour variations are possible.
- Easy to install with click-in gear tray.
- Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
- Can be specified with a range of sensors to increase user control.
- Internal drivers are supplied.
- Can easily be connected into a system. Quick and simple power and control connection.
- Five different optics.
- Suitable for bespoke designs and customisation.
Can be also specified as asymmetric wall washer for applications where illuminating a vertical wall is required, such as accent lighting or retail lighting. Used as an individual luminaire in standard size or a continuous linear lighting system.
Application:
Suitable for Cat A and Cat B office fit-out, retail, architectural applications, educational spaces, galleries and lobby areas.
Size | 580 mm 650 mm 720 mm 790 mm 860 mm 930 mm 1000 mm 1070 mm 1140 mm 1210 mm 1280 mm 1350 mm 1420 mm 1490 mm 1560 mm 1630 mm 1700 mm 1770 mm 1840 mm 1910 mm 1980 mm 2050 mm 2120 mm 2190 mm 2260 mm |
Features | Architectural design, provides a line of continuous light with a modern black trim |
Finish | Polyester powder coat |
Material | Extruded aluminium profile with LEDs |
Shape | Linear |
Uniclass 2015 | |
CAWS | V90/45 Luminaires V90/510 Luminaires |
Product Reference | Rio Recessed |
Standards | IEC 60596-2-1 and IEC 60596-2-2 |
Third-party certification | Measurement Certificate 0342/2018 and LM-79-08 Photometrics |
Luminaire description | Recessed, contemporary, slim linear profile |
Classification | - |
Electric shock | Low voltage (<1000 V) |
Ingress protection (minimum) | IP20 Rated |
Suitability for direct mounting on normally flammable surfaces | Not suitable for direct mounting on normally flammable surfaces |
Circumstances of use | Normal use |
Rated maximum ambient temperature | 25°C |
Control gear position | Integral within luminaire |
Supply circuit conductor connections | Push or screw terminal |
Nominal voltage | 220-240 V |
Luminaire power factor | 0.98 at full load |
LED luminaires | - |
Performance standards | EN 13032-1 |
Safety standard | IEC-EN 60598-1 |
Initial LED luminaire efficacy (minimum) | 102 lm/W |
Wattage | 14 W/ 1333 lm up to 53 W/ 5331 lm |
Colour temperature | 2700K3000K4000KAt CRI 80, the Melanopic Ratio is 0.690. 5000KTunable White (TW) 2700-6500KInsert requirements. |
Colour rendering index (Ra) | 809097 |
Beam angle | 30-100° |
Useful life | 100 000 hours (L80B20) |
Dimming protocol | DALI DimmingTouch-dimmableNon-dimmingStandard. |
Emergency version | - |
Standard | Tridonic |
Classification | - |
Type | Maintained |
Duration of emergency mode (minimum) | No emergency0 hours. 3 hours |
Integral sensors | Not requiredCASAMBIHelvar Active PlusMicro standalone sensorPIR/ daylightPhilips EasyAir |
Accessories | Not required90° horizontal corner, 600 x 600 mmCentral modulesEnd modulesRight startStart modules |
Size | 580 mm650 mm720 mm790 mm860 mm930 mm1000 mm1070 mm1140 mm1210 mm1280 mm1350 mm1420 mm1490 mm1560 mm1630 mm1700 mm1770 mm1840 mm1910 mm1980 mm2050 mm2120 mm2190 mm2260 mm |
Optics | Asymmetric ReflectorBlack OpalMicroprismatic DiffuserModular OpticsOpal Diffuser |
Colour | BlackGreyWhiteRALInsert requirements. |
Unified glare rating | - |
Transverse | <21.8, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards |
Longitudinal | <23.8 |
Driver | - |
Manufacturer | Helvar/ Alvit |
Frequency | 50-60 Hz |
Efficiency | 94% |
Emergency output | 200 lm |
Macadams | 3 Step |
Light output ratio (LOR) | 100% |
Output direction | Direct |
Standard product features | Colour: Available in three standard colours or bespoke RAL colour. Features: Architectural design, provides a line of continuous light with a modern black trim.. Finish: Polyester powder coat. Material: Extruded aluminium profile with LEDs. Shape: Linear. Size: 25 sizes ranging from ranging from 580-2260 mm. Warranty: Two-year warranty. Recycled content: Aluminium and packaging. Recyclability: Frame and packaging. Country of origin: UK. |
Recyclability | Frame and packaging |
Recycled content | Aluminium and packaging |
