Application

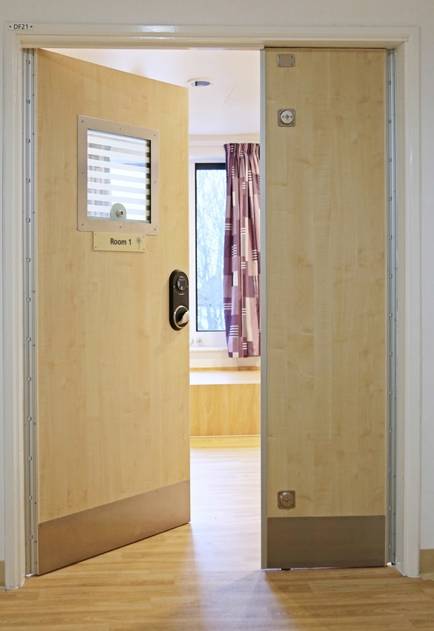

Slave-leaves are installed where extra wide leaf doors cannot be used. For normal traffic, only the main section of the door is used, with the slave-leaf unlocked when a wider aperture is required. Suitable when securing slave-leaf doors is a priority over impact resistance.

Description

Slave-leaf door bolt with mortice lock.

Features and benefits:

  • Robust.
  • Lifeline closed keyway minimizes tampering.
  • One-key access reduces the amount of keys carried on wards.
  • The slave-leaf can be released with a quarter turn.
  • Anti-tamper fittings are included.
  • The mortice lock can be located at the top or bottom edge (or both), and locks the slave-leaf into the floor or door frame.
  • Convenient to retrofit onsite; no specialist equipment is required for installation.
  • 3 mm steel escutcheon plates included.
  • Has fire-resistant casing to BS EN 1634-1.
  • CE-marked to BS EN 12209.

Applications:

Slave-leaves are installed where extra wide leaf doors cannot be used. For normal traffic, only the main section of the door is used, with the slave-leaf unlocked when a wider aperture is required. Suitable when securing slave-leaf doors is a priority over impact resistance.

General information
Material

Lifeline mechanism: Die-cast (Mazak 5) handle with electro-plated satin stainless steel finish

Backplate: 3 mm chamfered steel with electro-plated satin stainless steel finish

Deadlock: Steel

Uniclass 2015 Door latches (Pr_30_36_08_24)
Specification data
Product Reference

Rhino Junior Bolt (Slave-Leaf door bolt), PR-6308-BR-LL

Mortice lock

Located to the bottom edge

Located to the top and bottom edge

Located to the top edge

Accessories/ Other requirements

Not required

Easy-clean floor sockets

Standard product features

Material:

  • Lifeline mechanism: Die-cast (Mazak 5) handle with electro-plated satin stainless steel finish.
  • Backplate: 3 mm chamfered steel with electro-plated satin stainless steel finish.
  • Deadlock: Steel.

Locking system:

Mortice, slave-leaf lock.

Fixings:

Pin-torx anti-tamper stainless steel security screws.
