Description

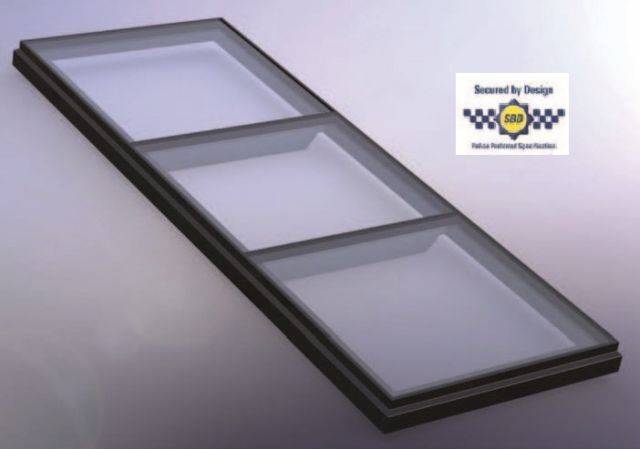

A secure, fixed flatglass rooflight with multi pane configuration.

Features and benefits:

  • Secured by Design and Building Regulations (England) Approved Document Q compliant rooflight solution, using a laminated inner glass pane, upgraded fixings and glazing tapes to maximise security.
  • Fully thermally-broken aluminium frame prevents any cold bridging, which effectively limits the risk of condensation.
  • Building Regulations (E&W) Approved Document L compliant design to achieve low U-value targets.
  • Good thermal performance, with total system U-values as low as 0.6 W/m²K achievable.
  • Non-Fragile to Centre for Window and Cladding Technology (CWCT) Class 1 and 2 to TN66/67 and TN92.
  • Weathertightness: CWCT Class A4 Air leakage, resistance to Wind Class E2400 Pa and
  • Secured by Design and Part Q Compliant: Certisecure accredited, tested by Exova to determine whether it can withstand an intruder attempting to gain entry to a property via the rooflight, achieving burglar resistance class BR2 to the STS 202 standard.
  • AA Fire-rated: AA Designation (National Class) or Broof (T4) European Class and Euro Class A1 non-combustible.
  • Designed to be installed to a weathered builders kerb, minimum 5° pitch.
  • Quick and easy to install on-site.
  • Designed to be installed on roof pitches from 1°.
  • Recommended minimum kerb pitch of 5° degrees to help shed water.
  • Minimal framework: daylight is maximised while the visible framework is minimised.
  • More daylight results in less artificial light, saving energy.
  • BIM More daylight leads to enhanced well-being.
  • 15 year warranty.

Designed to standard loadings of 640 N/m² (snow) and 750 N/m² (wind) and in accordance with the following Standards:

  • BS 6375-1 2015+A1 2016: Weather tightness.
  • BS EN 1026: Air permeability.
  • BS EN 1027: Water tightness test.
  • BS EN 12211: Wind resistance test.
  • BS 1474: Aluminium Extrusions.
  • EN 12020-1:2001: Aluminium Extrusions.
  • BS EN ISO 16396-2:2017: Polyamide Thermal Break.
  • BS EN 12206-1:2004: Powder Coating.

General information
Size

As drawing

Insert drawing reference. Bespoke sizes are available. Contact manufacturer for details.

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Specification data - Framed rooflights
Product Reference

RG-80-20 Protect+ Fixed Flat Glass Single Pane Rooflight

Size

As drawing

Insert drawing reference. Bespoke sizes are available. Contact manufacturer for details.

Type

Rectangular

Square

Frame finish

Polyester powder coated, Black RAL 9005

Polyester powder coated, Grey RAL 7016

Polyester powder coated, White RAL 9010

Polyester powder coated, RAL

Insert requirements.

Glazing -
Outer pane

6 mm HST toughened glass

8 mm HST toughened glass

10 mm HST toughened glass

Cavity

14 mm argon filled, warm edge spacer, ultraviolet resistant silicone bonded

16 mm argon filled, warm edge spacer, ultraviolet resistant silicone bonded

18 mm argon filled, warm edge spacer, ultraviolet resistant silicone bonded

Inner pane

8.8 mm annealed heat strengthened laminated glass plus soft coat Low E

9.5 mm annealed heat strengthened laminated glass plus soft coat Low E

10.8 mm annealed heat strengthened laminated glass plus soft coat Low E

Additional requirements

See 'Options' and insert requirements.

Wall abutment -
Type

Head verge

Head and verge

Head and both verges

Edges

Multiple raked edges

One raked edge

Standard product features

Frame:

Manufactured from extruded aluminium section to BS EN 12020-1.

Size:

  • Maximum: 1200 x 3000 mm.
  • Minimum: 400 x 400 mm.

Kerb:

Recommended 150 mm high, minimum 75 mm wide.

Thermal performance (total product U-Value):

  • Double glazed: 1.5 W/m²K (0.7 W/m²K to special order).
  • Triple glazed: 1.1 W/m²K (0.5 W/m²K to special order).

Product Options

Frame finish:

  • Any colour from the standard RAL Classic chart is available.
  • Qualicoat Standard is available.
  • Various marine grade or swimming pool grades also available.

Consult manufacturer for details.

Glazing:

An extensive range of glazing options are available, please consult Roofglaze Rooflights for exact details.

- Standard specification:

  • Outer: 8 mm heat soak tested toughened glass with Soft Low-E coating to cavity face, sandblast border.
  • Cavity: 16 mm argon filled with Swisspacer warm edge spacer silicone bonded for an ultraviolet resistant edge seal.
  • Inner: 8.8 mm laminated glass with PVB interlayer and polished edges, ultraviolet resistant silicone bonded.

- Additional requirements:

  • Solar control.
  • Privacy glass.
  • Body tinted.
  • Acoustic laminate.
  • Coloured glass.
  • Easy-clean coatings (Ritec ClearShield) – Provides an efficient solution to greatly reduce the need for cleaning.
  • CUin advanced thermal performance.
  • Triple glazed and laminated inner pane options.
  • Integral blind.
