BRE Certificate
Certificate type
QA Certificate
Certificate type

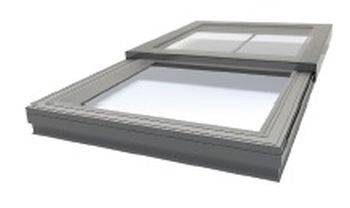

24 V sliding flatglass rooflight complete with a transformer switch.
24 V sliding flatglass rooflight complete with a transformer switch.
Features and benefits:
Designed to standard loadings of 640 N/m² (snow) and 750 N/m² (wind) and in accordance with the following Standards:
Size | As drawing Insert drawing reference. Bespoke sizes available. Contact manufacturer for details. |
Uniclass 2015 | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Product Reference | RG-80-20 24 V Sliding Flat Glass |
Size | As drawingInsert drawing reference. Bespoke sizes available. Contact manufacturer for details. |
Type | RectangularSquare |
Frame finish | Polyester powder coated, Black RAL 9005Polyester powder coated, Grey RAL 7016Polyester powder coated, White RAL 9010Polyester powder coated, RALInsert requirements. |
Glazing | - |
Outer pane | 4 mm HST toughened glass6 mm HST toughened glass8 mm HST toughened glass10 mm HST toughened glass |
Cavity | 14 mm argon filled, warm edge spacer, ultraviolet resistant silicone bonded16 mm argon filled, warm edge spacer, ultraviolet resistant silicone bonded18 mm argon filled, warm edge spacer, ultraviolet resistant silicone bonded20 mm argon filled, warm edge spacer, ultraviolet resistant silicone bonded |
Inner pane | 6 mm HST toughened glass plus soft coat Low E6.8 mm laminated glass with polished edges plus soft coat Low E8 mm HST toughened glass plus soft coat Low E8.8 mm laminated clear glass with polished edges plus soft coat Low E9.5 mm laminated clear glass with polished edges plus soft coat Low E10.8 mm laminated clear glass with polished edges plus soft coat Low E11.5 mm laminated clear glass with polished edges plus soft coat Low E13.5 mm laminated clear glass with polished edges plus soft coat Low E |
Additional requirements | See 'Options' and insert requirements. |
Standard product features | Frame: Frames are manufactured from extruded aluminium section to EN 12020-1:2001. Kerb: Recommended 150 mm high, minimum 75 mm wide excluding finishes. Size:
Thermal performance (total product U value):
Electrical: Wall mounted transformer switch and remote-control fob. |
Product Options | Frame finish:
Consult manufacturer for details. Glazing: An extensive range of glazing options are available, please consult Roofglaze Rooflights for exact details. |
