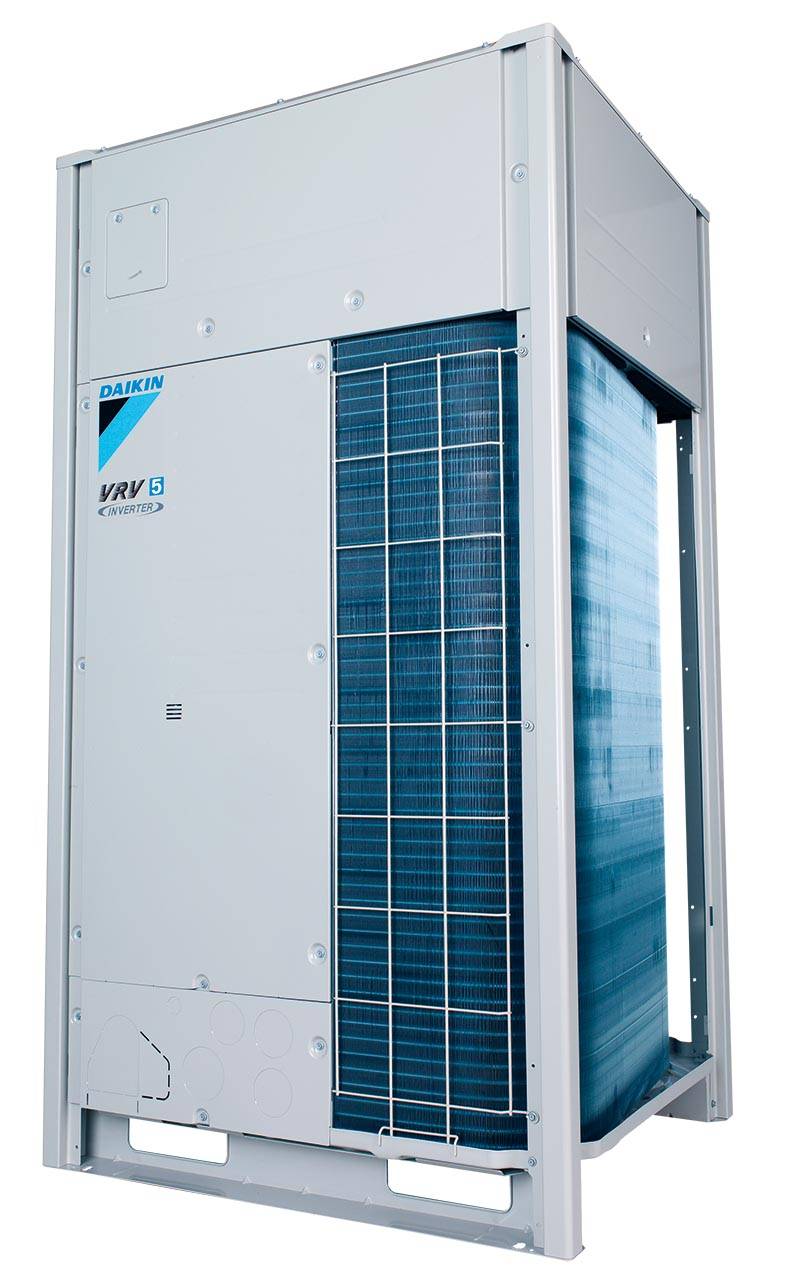

REYA-A (VRV5) - Outdoor VRV Unit

Verified by manufacturer 4 months ago

8 hp Single REYA8A

Daikin Ltd Variant:

VRV 5 heat recovery.

Jump to:
+44 (0)845 641 9000 Website

Application

For commercial applications.

Description

VRV 5 heat recovery.


Features and benefits:

  • Reduced CO2 equivalent thanks to the use of lower GWP R-32 refrigerant and lower refrigerant charge.
  • Top sustainability over the entire lifecycle, thanks to market leading real-life seasonal efficiency.
  • Tackle small room applications without any additional measures, thanks to Shîrudo technology.
  • Specially designed indoor units for R-32, ensuring low sound and maximum efficiency.
  • The perfect personal comfort for guests/tenants via simultaneous cooling and heating.
  • Incorporates VRV IV standards and technologies: Variable Refrigerant Temperature, continuous heating, VRV configurator, 7 segment display and full inverter compressors, 4-side heat exchanger, refrigerant cooled PCB, new DC fan motor.
  • “Free” heating provided by transferring heat from areas requiring cooling to areas requiring heating.
  • Variable refrigerant temperature: The intelligent systems ensures highest energy savings with additional comfort to better suit application requirements.

General information

Color

Grey

Shape

Rectangle

Length

930 mm

1240 mm

Width

765 mm

Height

1685 mm

Uniclass

Pr_70_60_37_02 Air-to-air heat pumpsPrimary

CAWS

T90/500 Air-to-air heat pumps

Specification data - Air-to-air heat pumps

Mode

Cooling.

Heating.

Output

-

Heating

25 kW.

Cooling

22.4 kW.

Electrical supply type

Three phase.

Compressor

-

Type

Full inverter compressors.

Refrigerant

R32.

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1508 kg CO₂ eq/unit

Self declared

Recyclability

50%

Literature

VRV Catalogue

VRV Catalogue
