Revolving Door Automatic- ASSA ABLOY UniTurn High Capacity Two Wing 3.6–5.4 m

Verified by manufacturer 8 days ago

FAAC Entrance Solutions UK Third party certifications:
  • EPD

    EPD

    Certificate type

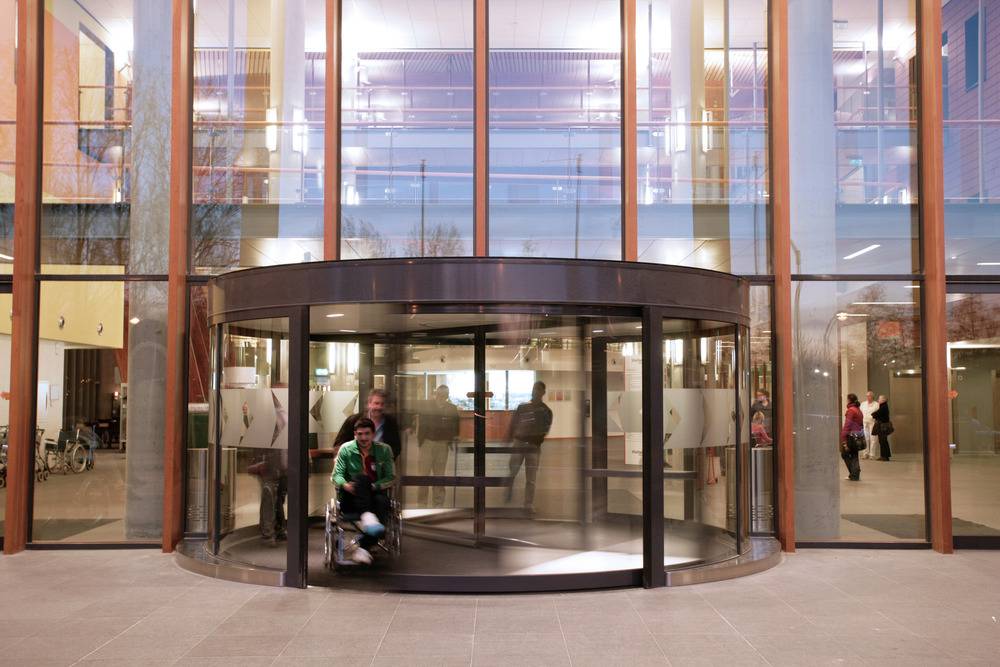

A two wing automatic high capacity revolving door with two display cabinets, for mixed pedestrian and regular wheeled traffic.

Jump to:
+44 (0)333 006 3443 Website

Application

For entrance/ exit to a range of building types.

Description

A two wing automatic high capacity revolving door with two display cabinets, for mixed pedestrian and regular wheeled traffic. The large size of the compartment also allows the safety devices to have the longest possible fields without hindering the traffic flow. A design option now available with the UniTurn is automatic sliding doors in the centre of the unit, which provide even more flexibility from the door. When in operation, the sliding doors give the same clear opening width as the throat opening of the outer drum.

The Besam UniTurn range is available in different diameters, and can be delivered in clockwise or anti-clockwise rotation. The UniTurn is designed to be placed and fixed directly onto the finished floor surface. The two-wing configuration means that night security doors are not required as the rotating section can be parked and locked in the closed position. The rotating section and the outer walls have a combination of presence detectors and soft safety edges in the vertical and horizontal planes. If the rotating section meets a stationary or slow moving object, the door automatically slows down and, if necessary, stops.


Features and benefits:

  • Available in different colours including bronze, clear, stainless steel and RAL colours.
  • No special foundations are required.
  • Two configuration options.

General information

Color

Bronze

Clear

Silver

Other

Finish

Anodized

Guidance for specification option:

Bronze and clear.

Brushed

Polished

Powder-coated

Satin

Material

Glass

Guidance for specification option:

Door leaf.

Aluminium

Stainless steel

Shape

Circle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_04 Automatic revolving doorsetsPrimary

CAWS

L20/495 Automatic revolving doors

Specification data - Automatic revolving doorsets

Third party accreditation

Guidance for specification option:

ASSA ABLOY UniTurn range have been tested and approved by authorized/ accredited laboratories.

Configuration

Two-wing slide.

Two wing swing.

Materials and finishes

-

Doors

Bronze anodized.

Clear anodized.

Stainless steel clad.

Guidance for specification option:

316 grade, finishes; brushed / 240 grit / bright polished.

RAL.

Guidance for specification option:

Available powder coated in a range of RAL colours.

Drum walls

Glazed.

Sheet metal sandwich panel.

Stainless steel cladding.

Glazing

-

Type

Curved glass.

Guidance for specification option:

4+4 mm clear.

Flat glass.

Guidance for specification option:

3+3 mm clear

Canopy

Metal imitation laminate.

Guidance for specification option:

From ASSA ABLOY standard range. Consult manufacturer and insert requirement.

White laminate.

Guidance for specification option:

Standard.

Colour laminate.

Guidance for specification option:

From ASSA ABLOY standard range. Consult manufacturer and insert requirement.

Activation and control system

-

Type

Four passive infra-red motion sensors.

Guidance for specification option:

Two in each entrance.

Locking mechanism

Electro-mechanical lock.

Mechanical lock.

Breakout facility

Emergency stop button.

Accessories

Not required.

Barrier matting aluminium profiles with carpet inserts.

Guidance for specification option:

Black.

Barrier matting aluminium profiles with rubber inserts.

Guidance for specification option:

Black.

Climate control.

Extra programme selector.

Ground ring to suit door diameter to form a matwell.

Guidance for specification option:

Matting not included.

GSM Modem for remote service diagnostic and operational support.

Midrails.

Push-button activated reduced speed rotation.

Remote control.

Sliding doors in centre.

Spotlights or down lights.

Water-resistant cover.

Product Reference

Revolving Door Automatic- ASSA ABLOY UniTurn High Capacity Two Wing 3.6 - 5.4 m

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

84.58 kg CO₂ eq/unit

EPD

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

EPD

EPD

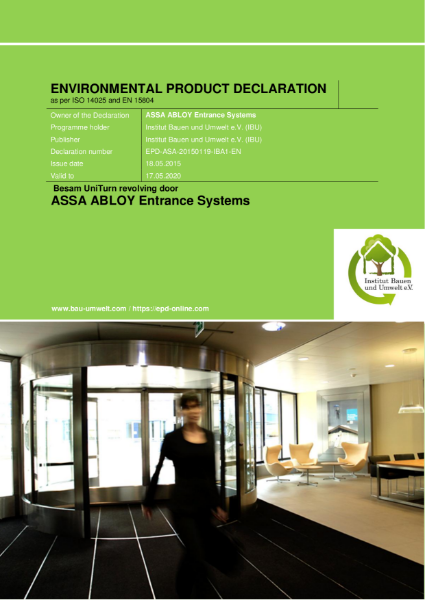

EPD Uniturn Revolving Door

Literature

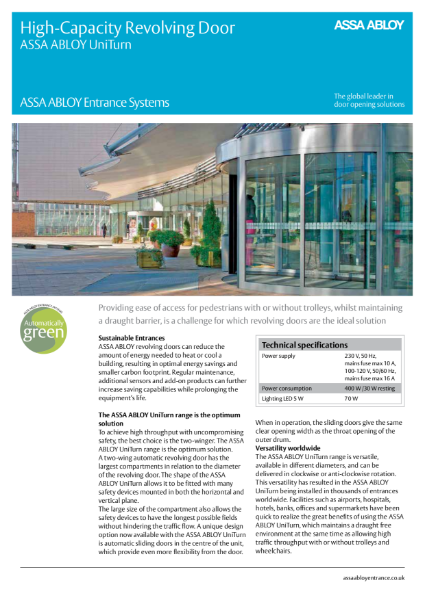

Automatic Revolving Door Uniturn (High Capacity)

Automatic Revolving Door Uniturn (High Capacity)
