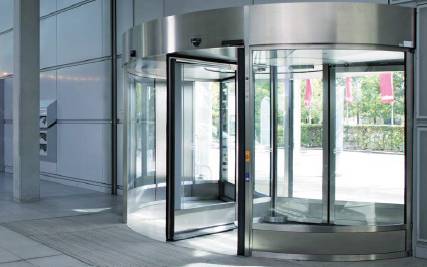

Revolver - Large-capacity GGR Revolving Doors

Verified by manufacturer 5 months ago

3-leaf Revolving Door

Open Entrances Variant:

Assembly friendly, high-performance and safe large capacity revolving doors.

Jump to:
+44(0)1923277901 Website

Application

  • Revolving doors, suitable for a wide range of commercial applications.
  • Primarily used in public buildings with heavy traffic, such as airports and large office buildings.
  • For use in escape and rescue routes.

Description

Revolving doors are used to provide public buildings with impressive entrances. One of the key advantages is that the three or four-leaf doors do not create any draughts in the foyer or lobby.


Large-capacity GGR revolving doors are particularly suitable for heavy visitor traffic and use in escape and rescue routes. The large-capacity GGR revolving door is the elegant and energy-saving entrance solution. With a diameter of 3600 mm, comfortable passage is possible even with bags, shopping trolleys or pushchairs. The GGR is always motor-driven due to its dimensions.


Features and benefits:

  • Large capacity.
  • Impressive entrance areas.
  • Draughts are prevented, even when entering a building.
  • High degree of creative freedom.
  • Flexible selection of drives. Smaller doors can be operated manually.
  • Burglar protection with a night lock feature and centre lock on the turnstile.
  • Different size options.
  • Short installation times.
  • Three or four leaf doors.
  • Manual or automatic operation.
  • A night lock protects revolving doors from being misused outside of operating hours.
  • Optional TÜV-tested systems to provide security if required.

General information

Color

Other

Finish

Anodized

Polished

Material

Glass

Stainless steel

Shape

Other

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_30_20_70 Revolving doorset systemsPrimary

CAWS

L20/500 Manual revolving doors

L20/495 Automatic revolving doors

L20/60 Doors

Specification data - Revolving doorset systems

Doorset

-

Operation

Fully automatic revolving doorsets (radar motion detector).

Hardware

-

Manufacturer guidance

Consult manufacturer for details.

Breakout facility

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

System accessories

Not required.

Moveable leaf (summer position).

LED ceiling lamps.

Manufacturer guidance

Consult manufacturer for details.

Drum walls

Curved LSG, 10 mm.

Door leaf

Toughened safety glass, 10 mm.

Configuration

3-leaf.

InsideDiameter

1800–3000 mm.

Guidance for specification option:

  • Diameter greater than 3000 mm as special version.
  • Consult manufacturer and insert requirements.

Clearance height

2100–3000 mm.

Guidance for specification option:

Consult manufacturer and insert requirements.

Clearance width

Approx. 830–1370 mm.

FloorCovering

Not required.

V2A bottom ring (recommended).

Release-secure flange.

Floor pan.

Entrance mat.

Lock

Not required.

Outside-running, manual.

Outside-running, automatic.

Glass.

Inside-running, manual.

Show more

Manufacturer guidance

Night locking sliding door.

Locking

Not required.

Shoot bolt lock on the leaf, manual.

Rod locking system in the night locking sliding door.

Control

Not required.

FWS function selection switch.

Button for the disabled, both sides.

Emergency-stop switch.

RESET push-button.

Show more

Roof

Ceiling in system colour.

Guidance for specification option:

Standard.

Dust roof.

Dust roof with visual shield.

Exterior roof waterproof with two spouts.

Manufacturer guidance

Roof construction.

Warm-air curtain

Not required.

Vertical air curtain.

Installation variant, hot water or electrical.

Design variant, hot water or electrical.

Applied finish

RAL colour.

Guidance for specification option:

Consult manufacturer and insert requirements.

Anodized.

Anodized stainless steel.

Polished V2A stainless steel.

Industry polished V2A stainless steel.

Standards

Type-tested according to DIN 18650.
