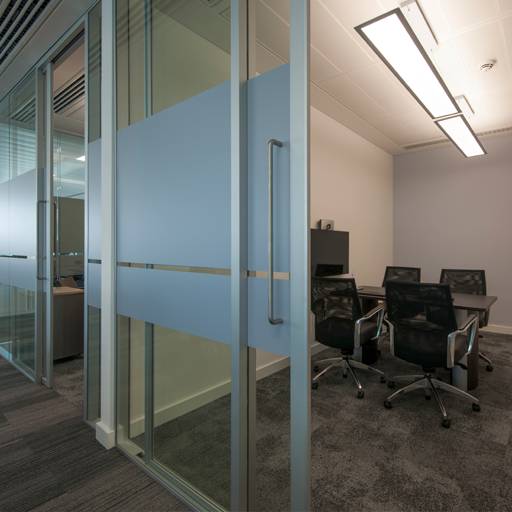

Revolution 100 Elite Aero S/G Pocket Sliding Door

Name: Revolution 100 Elite Aero S/G Pocket Sliding Door
Brand: Optima
SKU: pFBVHZ6cYbjfiB9QbXJbha

Verified by manufacturer 5 months ago

Third party certifications:

Aluminium framed, single-glazed pocket sliding doorset, integral to partition system.

Jump to:

Application

Designed for use in conjunction with Revolution 100 double-glazed partition system.

Suitable for office and workplace applications.

The Elite Aero door is ideal for smaller areas where space is restricted because the door slides between the partition glazing.

Features and benefits:

It can achieve an impressive Rw39dB with 12 mm toughened glass, in a double glazed Revolution 100 screen with two layers of 12.8mm thick acoustic laminated glass.
This elegant door can incorporate a cylinder hook bolt lock and soft close/ open function if required.

Color	White Silver Other Black
Finish	Anodized Grained Polished Powder-coated
Material	Glass Aluminium
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Ss_25_30_20_77 Sliding doorset systemsPrimary
CAWS	L20/60 Doors L20/520 Sliding doors L20/65 Sliding pocket doors

Product range	Sliding Doorsets

Doorset	-
Type	Guidance for specification option: A framed, single-glazed pocket sliding doorset. Integral to partition system
Glazing	Single glazed, 12 mm glass.
Hardware	Guidance for specification option: Insert requirement; contact manufacturer for more information.
System accessories	Guidance for specification option: Insert requirement; contact manufacturer for more information.

Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
Size	Guidance for specification option: Available up to 3000 mm in height.
Locking	Dead lock. Latch. Sash lock.
Acoustic performance	39 dB. Guidance for specification option: (In conjunction with 2 x 12.8 mm acoustic laminate double-glazed partition.) Manufacturer guidance Acoustic rating (Rw, maximum):
Construction	Aluminium.
Manifestation	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Finish/ colour	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert colour requirements below. Colour, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Colour, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal). Show more
External frame	Not required. Colour, RAL. Colour, RAL 9006 Silver. Colour, RAL 9010 White.
Internal	As external. Not required. Colour, RAL. Colour, RAL 9006 Silver. Colour, RAL 9010 White. Manufacturer guidance Powder-coated:
Third party accreditation	BM Trada certified.

Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	239 kg·CO₂e/kg Self declared Guidance for specification option: See Environmental Product Declaration literature for more LCA data.
