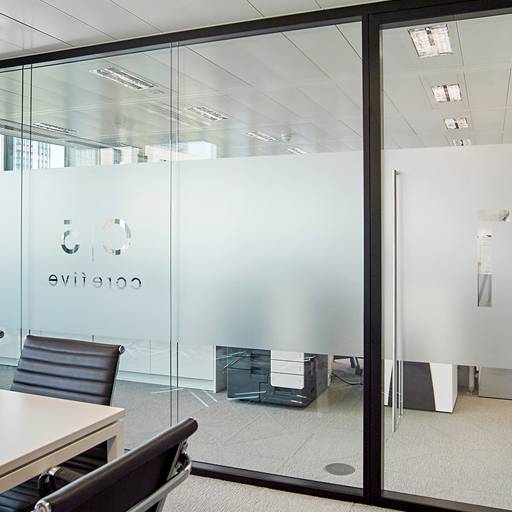

Name: Revolution 100 DG Partition - Panel partitions
Brand: k4z8JLGXeuHwQF3CeFi3iT
SKU: bmzm6oe58CydpThnPGas7k

Color

RAL: 9006

RAL 9006

Material

Aluminium / Glass

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

Product Reference

Revolution 100 Double Glazed Partition

StrengthGrade

Duty rating (to BS 5234-2)

Congested office space – 0.74 kN/m line load

Public access space – 0.74 kN/m line load

Public access space – 1.50 kN/m line load

Uncongested office space – 0.36 kN/m line load

Maximum allowable deflection under the line load

L/65 or 50 mm

Whichever is least.

L/120 or 25 mm

Whichever is least.

Partition height

Insert floor to ceiling requirement, available up to 3000 mm.

Finish/ Colour

Anodized

25 microns thickness.

Grained, brightened and protective anodized

Polished, brightened and protective anodized

Powder-coated, RAL

Insert requirement; contact manufacturer for more information.

Powder-coated, RAL 9006 Silver

50 microns, 30% gloss (nominal).

Powder-coated, RAL 9010 White

50 microns, 30% gloss (nominal).

Glazing

Type

10.8 mm acoustic laminate glass + 12.8 mm acoustic laminate glass

49 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

10.8 mm acoustic laminate glass + 16.8 mm acoustic laminate glass

50 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

12 mm toughened glass + 12 mm toughened glass

45 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

12 mm toughened glass + 12.8 mm acoustic laminate glass

48 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

12.8 mm acoustic laminate glass + 12.8 mm acoustic laminate glass

51 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

12.8 mm acoustic laminate glass + 16.8 mm acoustic laminate glass

52 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

16.8 mm acoustic laminate glass + 16.8 mm acoustic laminate glass

53 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.

Manifestation

Insert requirements.

Junctions/ corners

100033-01

Nebula™ dry butt-joint.

100033-02

SA aluminium dry butt-joint.

100033-03

Ghost dry butt-joint.

100033-04

Taped dry butt-joint.

100033-05

90° mitred taped dry corner joint.

100033-06

SA aluminium dry corner joint.

100033-07

Ghost dry corner joint.

100033-08

90° taped dry corner joint.

100034-01

Taped three-way to plain glass.

100034-02

Taped three-way to Nebula™ joint.

100034-03

Taped three-way to SA aluminium joint.

100034-04

SA aluminium three-way joint.

100034-05

Ghost three-way joint.

Partition abutments

Head detail

Insert requirements from 'Options' below.

Floor detail

100008-01

25 mm deep for up to 12.8 mm glass on both faces.

100008-02

25 mm deep for up to 16.8 mm glass on outer face.

100008-05

25 mm deep for up to 16.8 mm glass on both faces.

100009-01

50 mm deep for up to 12.8 mm glass on both faces.

100009-02

50 mm deep for up to 16.8 mm glass on outer face.

100009-05

50 mm deep for up to 16.8 mm glass on both faces.

Wall detail

Insert requirements from 'Options' below.

Transom detail

100010-01

50 mm deep for up to 12.8 mm glass on both faces.

100010-02

50 mm deep for up to 16.8 mm glass on outer face.

100010-05

50 mm deep for up to 16.8 mm glass on both faces.

Mullion detail

100015-01

50 mm wide for up to 12.8 mm glass on both faces.

100015-02

50 mm wide for up to 16.8 mm glass on outer face.

100015-05

50 mm wide for up to 16.8 mm glass on both faces.

Doorset

Leaf

Insert requirement from 'Options' below.

Manifestation

Insert requirements.

Ironmongery

Insert requirements from Optima standard ironmongery suite.

Locking

Insert requirements; contact manufacturer for information.

Cable management/ Outlets

Tech panels

100021-01

Metal faced with hinged access door (colour to match rest of system).

100021-02

Timber with hinged access door (insert veneer surface finish).

100021-03

Back-painted glass with hinged access door (insert back-paint colour).

100024-01

Back-painted glass with mullion interface to screen (insert back-paint colour).

100024-02

Back-painted glass with Nebula™ interface to screen (insert back-paint colour).

Access door locking

Not applicable

Magnetic latch

Secure near-field electronic latch

Blinds

Not required

Required

Insert requirements.

Sustainability requirements

Not required

BREEAM 'A' rating

SKA Good Practice Measure M09 compliant

Accessories

Insert requirements; contact manufacturer for more information.

Standard product features

Framing:

Aluminium extruded track sections.

Product Options

Glazing:

Glazing is full height, dry jointed and dry glazed.

Partition abutments:

- Head detail:

100004-01 – 90 mm deep (±25 mm deflection – internal) for up to 12.8 mm glass on both faces.

100004-02 – 90 mm deep (±25 mm deflection – internal) for up to 16.8 mm glass on outer face.

100004-05 – 90 mm deep (±25 mm deflection – internal) for up to 16.8 mm glass on both faces.

100005-01 – 94 mm deep (±25 mm deflection – external) for up to 12.8 mm glass on both faces.

100005-02 – 94 mm deep (±25 mm deflection – external) for up to 16.8 mm glass on outer face.

100005-05 – 94 mm deep (±25 mm deflection – external) for up to 16.8 mm glass on both faces.

100006-01 – 135 mm deep (±40 mm deflection – internal) for up to 12.8 mm glass on both faces.

100006-02 – 135 mm deep (±40 mm deflection – internal) for up to 16.8 mm glass on outer face.

100006-05 – 135 mm deep (±40 mm deflection – internal) for up to 16.8 mm glass on both faces.

100007-01 – 140 mm deep (±40 mm deflection – external) for up to 12.8 mm glass on both faces.

100007-02 – 140 mm deep (±40 mm deflection – external) for up to 16.8 mm glass on outer face.

100007-05 – 140 mm deep (±40 mm deflection – external) for up to 16.8 mm glass on both faces.

100002-01 – 25 mm deep (no deflection) for up to 12.8 mm glass on both faces.

100003-01 – 50 mm deep (no deflection) for up to 12.8 mm glass on both faces.

100002-02 – 25 mm deep (no deflection) for up to 16.8 mm glass on outer face.

100002-05 – 25 mm deep (no deflection) for up to 16.8 mm glass on both faces.

100003-02 – 50 mm deep (no deflection) for up to 16.8 mm glass on outer face.

100003-05 – 50 mm deep (no deflection) for up to 16.8 mm glass on both faces.

- Wall detail:

100016-01 – door frame spacer for D660 frame.

100016-02 – door frame spacer for D665 frame.

100011-01 – 25 mm deep with clip-on bead for up to 12.8 mm glass on both faces.

100012-01 – 25 mm deep for up to 12.8 mm glass on both faces.

100013-01 – 50 mm deep with clip-on bead for up to 12.8 mm glass on both faces.

100014-01 – 50 mm deep for up to 12.8 mm glass on both faces.

100011-02 – 25 mm deep with clip-on bead for up to 16.8 mm glass on outer face.

100011-05 – 25 mm deep with clip-on bead for up to 16.8 mm glass on both faces.

100012-02 – 25 mm deep for up to 16.8 mm glass on outer face.

100012-05 – 25 mm deep for up to 16.8 mm glass on both faces.

100013-02 – 50 mm deep with clip-on bead for up to 16.8 mm glass on outer face.

100013-05 – 50 mm deep with clip-on bead for up to 16.8 mm glass on both faces.

100014-02 – 50 mm deep for up to 16.8 mm glass on outer face.

100014-05 – 50 mm deep for up to 16.8 mm glass on both faces.

Door leaf:

- Integral Microflush D660 aluminium door frame with 60 mm face and leaf set:

ELITE Affinity double-glazed leaf on offset pivots – 45 dB (Rw).

ELITE Symmetry double-glazed leaf on offset pivots – 43 dB (Rw).

- Integral Microflush D665 aluminium door frame with 65 mm face and leaf set:

AXILE Clarity frameless single-glazed leaf on lift-off hinges –32 dB (Rw).

AXILE Clarity frameless single-glazed leaf on offset quad pivots – 32 dB (Rw).

EDGE Affinity double-glazed leaf on offset pivots /hinges – 42 dB (Rw).

EDGE Affinity single-glazed leaf on offset pivots/ hinges – 39 dB (Rw).

EDGE Flush frameless double-glazed leaf on offset pivots – 37 dB (Rw).

EDGE Symmetry double-glazed leaf on offset pivots/ hinges – 41 dB (Rw).

EDGE Symmetry single-glazed leaf on offset pivots/ hinges – 35 dB (Rw).

Timber 44 mm leaf on offset pivots/hinges – 31 dB (Rw).

Timber 54 mm rebated leaf on offset pivots/hinges – 33 dB (Rw).

- Integral sliding glass door:

ELITE Aero single-glazed pocket sliding door – 39 dB (Rw).
