Revolution 100 DG Elite Aero Sliding Door - Sliding Door and Partition Sets

Verified by manufacturer 6 months ago

Optima Third party certifications:
  • BM Trada

    BM Trada

    Certificate type

12 mm toughened glass, in a double glazed Revolution 100 screen with two layers of 12.8 mm thick acoustic laminated glass.

Jump to:
+44 (0)1494 492725 Website

Application

Ideal for smaller areas where space is restricted because the door slides between the partition glazing.

Description

12 mm toughened glass, in a double glazed Revolution 100 screen with two layers of 12.8 mm thick acoustic laminated glass.


Features and benefits:

  • Elegant Elite Aero pocket sliding door achieves an impressive 39 dB (Rw) acoustic performance.
  • Can incorporate a cylinder hook bolt lock and soft close/ open function if required.

General information

Color

White

Silver

Other

Black

Finish

Anodized

Glazed

Grained

Polished

Powder-coated

Material

Glass

Aluminium

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Ss_25_30_20_77 Sliding doorset systemsPrimary

CAWS

L20/60 Doors

L20/520 Sliding doors

Specification data - Sliding doorset systems

Doorset

-

Type

Pocket door.

Glazing

12 mm glass.

Hardware

Guidance for specification option:

Insert requirements; contact manufacturer for more information.

Configuration

As schedule.

As drawing.

Guidance for specification option:

Insert drawing reference number.

Size

Guidance for specification option:

Available up to 3000 mm in height.

Locking

Dead lock.

Latch.

Sash lock.

AcousticRating

39 dB.

Guidance for specification option:

(in conjunction with 2 x 12.8 mm acoustic laminate double-glazed partition).

Manufacturer guidance

(Rw, maximum):

Frame

Guidance for specification option:

Integral to partition system.

Performance

Internal.

Finish and colour

Anodized.

Guidance for specification option:

25 microns thickness.

Grained.

Guidance for specification option:

Brightened and protective anodized.

Polished.

Guidance for specification option:

Brightened and protective anodized.

Powder-coated, RAL.

Guidance for specification option:

Insert requirement; contact manufacturer for more information.

Powder-coated, RAL 9006 Silver.

Guidance for specification option:

50 microns, 30% gloss (nominal)

Show more

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

271 kg·CO₂e/kg

Manufacturer guidance

See Environmental Product Declaration literature for detailed LCA data.

BIM objects

Platform Compatible Version
Revit

Revit 2017

1

Third party certifications

BM Trada

BM Trada

009109 (3) - ISO 14001 - Optima Products Limited

BM Trada

BM Trada

000016 (4) - ISO 9001 - Optima Products Limited

Literature

Optima Revolution 100 Product Summary

Optima Revolution 100 Product Summary

000005 (3) - Warranty - Company Policy

000005 (3) - Warranty - Company Policy

000018 (1) - Brochure - Clear Thinking

000018 (1) - Brochure - Clear Thinking

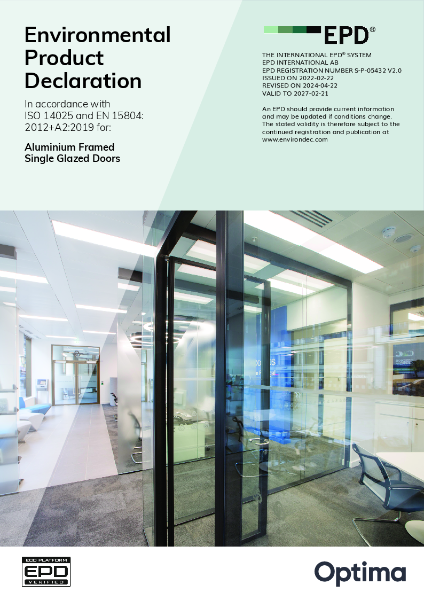

009816 (0) - EPD - Single Glazed Doors

009816 (0) - EPD - Single Glazed Doors

009821 (0) - EPD -  Revolution 100 Double Glazed

009821 (0) - EPD - Revolution 100 Double Glazed

900001 (17) - Designer's Guide - Door Sets

900001 (17) - Designer's Guide - Door Sets

Optima Doors Product Summary

Optima Doors Product Summary

Revolution 100 with Adaptable Wall Designers Guide

Revolution 100 with Adaptable Wall Designers Guide
