RetractaPost-GL

Description

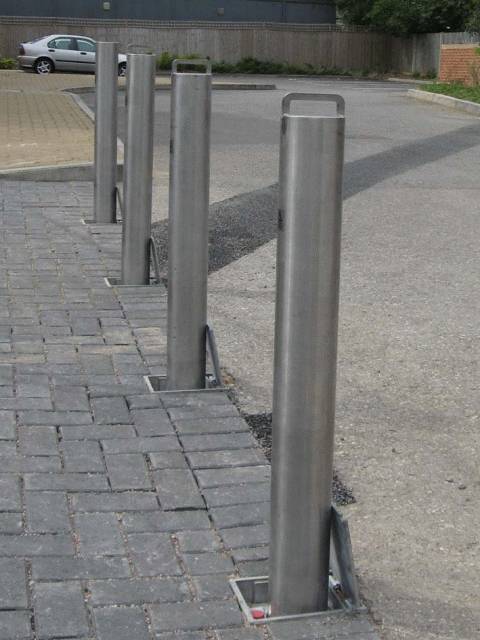

The RetractaPost-GL offers a highly effective and robust way to protect premises and vehicles. When lowered the post is fully below ground and covered using the integral lid. The post is lockable in the raised position by rotating the post 45° and then pressing the high-security push button 7-pin security lock. The post is unlocked using the supplied key, rotated and then lowered. Heavier posts are available with an internal gas strut as a lift assist, reducing lifting weight by up to 80% to allow users to lift them with minimal effort and reduce the risk of injury. This lift assist system also acts as a control when the bollard is being lowered into the ground.

Features:

  • Manufactured from carbon steel round tube.
  • Galvanised finish is standard, colour coated and grade 304 (1.4301) stainless steel are available finishes also.
  • Lockable in the up position.
  • 7 pin anti drill centre push lock.
  • Supplied with two keys.
  • Available randomly or identically keyed.
  • Includes sprung flap cover to protect the lock.

General information

Features

Manufactured from carbon steel round tube

Galvanised finish is standard, colour coated and grade 304 (1.4301) stainless steel are available finishes also

Lockable in the up position

7 pin anti drill centre push lock

Supplied with two keys

Show more

Uniclass 2015

Pr_20_76_08_11 Carbon steel hinged bollardsPrimary

CAWS

Q41/200 Collapsible car park posts

Q50/190 Bollards

Q50/192 Collapsible/ Telescopic bollards

Q50/30 Street furniture

Specification data - Carbon steel hinged bollards

Product Reference

RectractaPost-GL

Type

Insert product reference from 'Options' below.

Locking mechanism

Identically keyed

Randomly keyed

Standard product features

Type:

- Retractapost-GL 500:

138130392:

  • Above ground height: 500 mm.
  • Below ground depth: 815 mm.
  • Lift-out weight: 3.5 kg.
  • Total product weight: 14.4 kg.

138130398:

  • Above ground height: 500 mm.
  • Below ground depth: 815 mm.
  • Lift-out weight: 2.6 kg.
  • Total product weight: 13.5 kg.

138130390:

  • Above ground height: 500 mm.
  • Below ground depth: 815 mm.
  • Lift-out weight: 4.2 kg.
  • Total product weight: 15.1 kg.

138130399:

  • Above ground height: 500 mm.
  • Below ground depth: 815 mm.
  • Lift-out weight: 3.0 kg.
  • Total product weight: 14.0 kg.

138130425:

  • Above ground height: 500 mm.
  • Below ground depth: 815 mm.
  • Lift-out weight: 5.0 kg.
  • Total product weight: 23.1 kg.

138130435:

  • Above ground height: 500mm.
  • Below ground depth: 815mm.
  • Lift-out weight: 4.0kg.
  • Total product weight: 22.5kg.

138130391:

  • Above ground height: 500 mm.
  • Below ground depth: 815 mm.
  • Lift-out weight: 4.2 kg.
  • Total product weight: 15.1 kg.

- Retractapost-GL 745:

138130382:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 4.6 kg.
  • Total product weight: 17.6 kg.

138130388:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 3.4 kg.
  • Total product weight: 16.4 kg.

138130380:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 5.5 kg.
  • Total product weight: 18.5 kg.

138130389:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 4.0 kg.
  • Total product weight: 17.0 kg.

138130420:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 6.6 kg.
  • Total product weight: 30.2 kg.

138130429:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 5.0 kg.
  • Total product weight: 28.5 kg.

138130430:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 9.3 kg.
  • Total product weight: 40.0 kg.

138130439:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 5.8 kg.
  • Total product weight: 41.0 kg.

138130381:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 5.4 kg.
  • Total product weight: 18.4 kg.

138130427:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 6.2 kg.
  • Total product weight: 19.2 kg.

138130421:

  • Above ground height: 745 mm.
  • Below ground depth: 1070 mm.
  • Lift-out weight: 10.8 kg.
  • Total product weight: 41.5 kg.

- Retractapost-GL 900:

138130440:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Lift-out weight: 12.0 kg.
  • Total product weight: 47.0 kg.

138130449:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Lift-out weight: 7.4 kg.
  • Total product weight: 42.7 kg.

138130450:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Approximate Lift-out weight: 4.0 kg.
  • Total product weight: 50.4 kg.

138130459:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Approximate Lift-out weight: 4.0 kg.
  • Total product weight: 45.9 kg.

138130460:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Approximate Lift-out weight: 6.0 kg.
  • Total product weight: 62.0 kg.

138130469:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Approximate Lift-out weight: 6.0 kg.
  • Total product weight: 50.6 kg.

138130470:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Approximate Lift-out weight: 8.0 kg.
  • Total product weight: 65.5 kg.

138130479:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Approximate Lift-out weight: 6.0 kg.
  • Total product weight: 51.5 kg.

138130451:

  • Above ground height: 900 mm.
  • Below ground depth: 1250 mm.
  • Approximate Lift-out weight: 8.0 kg.
  • Total product weight: 63.0 kg.

Product Options

Galvanized finish as standard. Coated and grade 304 stainless steel finishes are also available. Please state BS/RAL number for coloured finishes.
