Resan® Wall Shower
Verified by manufacturer 3 months ago

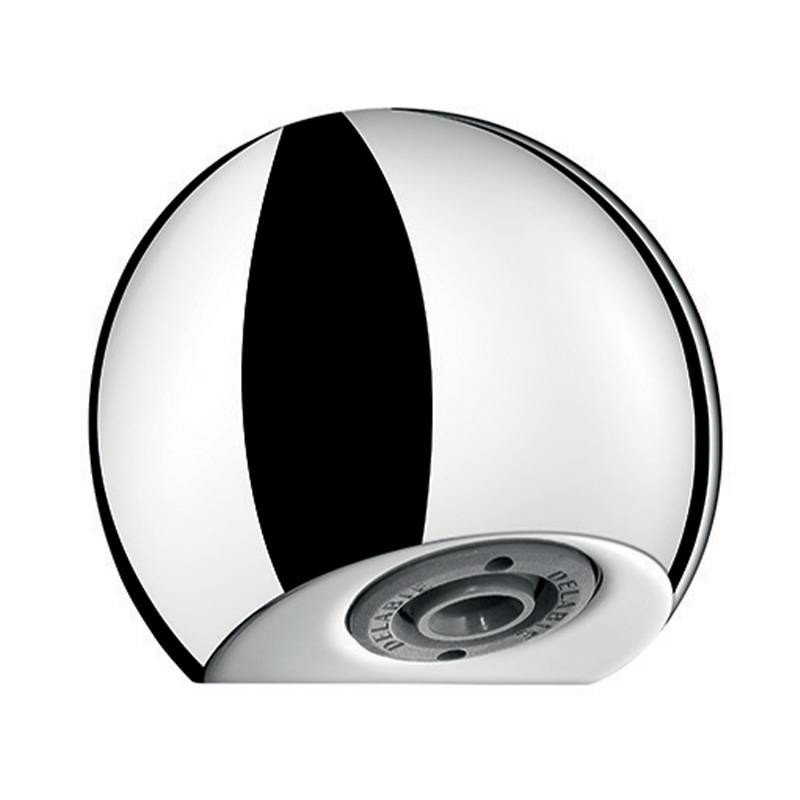

Wall mounted shower head.
Application
Suitable for fixed use with walls up to 230 mm thick in washroom applications.
Description
Vandal resistant anti-ligature wall mounted shower head.
Features and benefits:
- Anti-ligature design.
- Scale-resistant.
- Automatic flow regulation.
- Adjustable spray nozzle with locking feature.
- Concealed fixings.
- Systematically drains after use (no water retention or impurity deposits).
- WRAS approved product.
- Ten year warranty.
- Anti swivel lug (see drawing).
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |
Length | 61 mm |
Width | 35 mm |
Height | 61 mm |
Warranty description | One year |
Uniclass | |
CAWS | N13/45 Wet room showers N13/377 Wet room showers N13/40 Shower units N13/41 Shower heads N13/375 Shower units |
Specification data - Shower heads
Approvals | Water Regulations Approval Scheme (WRAS)-approved. |
Form | Single function fixed head. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Size | 61 x 61 x 35 mm.Guidance for specification option: Length x height x depth. |
Integral accessories | Concealed fixings. |
Flowrate | 6 L/min at 3 bar. |
Connection | ½” BSP. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Material | Brass |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
