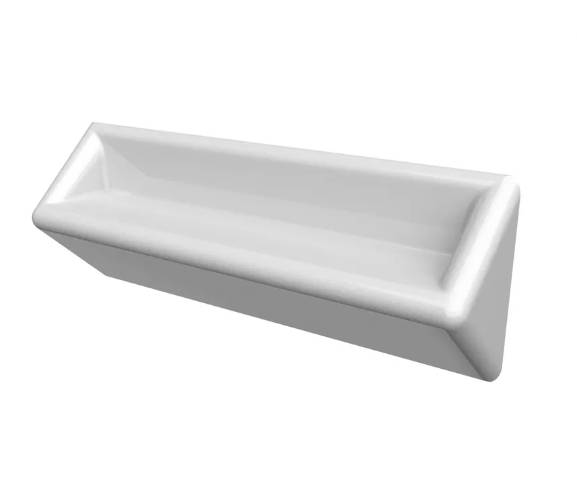

Resan® Shelf
Verified by manufacturer 5 months ago
Through Wall Fixed – 326144
Through Wall Fixed – 326144
Damage resistant, anti-ligature shelf.
Application
Suitable for installation within custodial, healthcare and commercial applications.
Description
The Resan anti-ligature shelf offers a range of durable and tough solid surface shelves are available in a range of sizes and can be both in rear or front fixed. Resan shelves do not have a gel coat layer, so the surface can be refreshed on-site through simple on-site refinishing of the product, which is particularly advantageous when compared to fibreglass composite alternatives.
Resan shelves are anti-ligature in design and cast as a single piece, avoiding unnecessary joints lines which are difficult to clean and potential weak spots. A highly polished finish helps ease cleaning and all Resan product have an easily renewable surface. We can manufacture alternatives sizes upon project consultation and would typically recommend bolt to wall fixing when used in healthcare and mental health applications.
Features and benefits:
- Damage resistant.
- Anti-ligature.
- For creating safe and secure cell environments.
- To BS 476 Pt.6, fire propagation and surface spread of flame.
- To ISO EN 19712-3-2007, rated 5 for durability, stain resistance, cigarette burns etc.
General information
Color | White |
Finish | Gloss Matt |
Material | Fluoropolymer resin |
Shape | Other |
Length | 520 mm |
Width | 106 mm |
Height | 195 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/30 Shelving systems N13/449 Shelves N11/370 Shelving N10/160 Shelving systems N10/135 Storage and display units |
Specification data - Shelf units
Form | Wall-mounted. |
Dimensions | |
Length | 520 mm. |
Height | 195 mm. |
Depth | 106 mm. |
Materials | |
Carcass or frame | Polymer resin. |
Shelves | Polymer resin. |
Finish | Gloss.Matt. |
Connection | M10 fixings. |
Weight | 7.5 kg. |
Fire performance | To BS 476, part 6. Guidance for specification option: Fire propagation & surface spread of flame. |
Durability | To ISO EN 19712-3-2007, rated 5. Guidance for specification option: Durability, stain resistance, cigarette burns etc. |

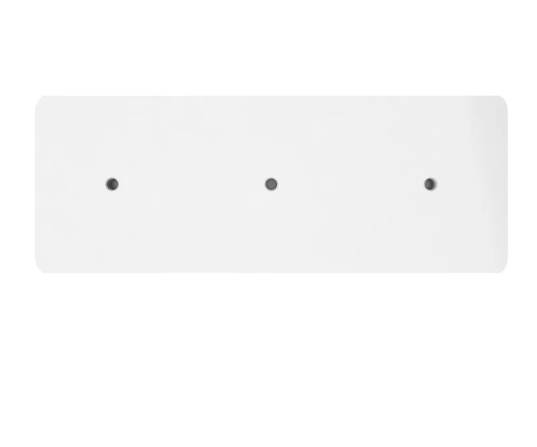

Fixing | Rear-fixed. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Fluoropolymer resin |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
