REGUPOL sonusfit 110 - Acoustic Fitness Flooring
Verified by manufacturer 28 days ago
REGUPOL sonusfit t 110 - 41 mm
REGUPOL sonusfit t 110 - 41 mm
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

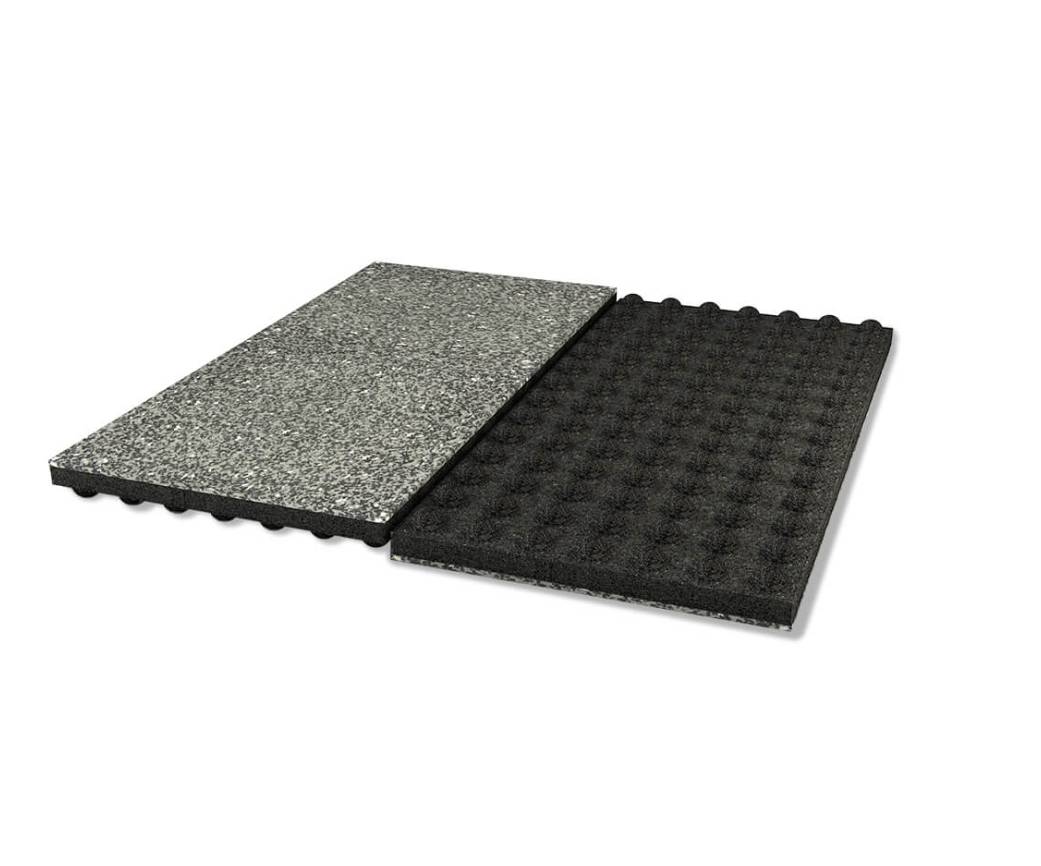

A rubber gym tile with a pre-bonded everroll wear layer finish for use in gyms for acoustic and none-acoustic applications.
Application
Finish floor product for use in gyms and other fitness centres both for acoustic and none-acoustic applications.
Description
REGUPOL sonusfit t 110 range is designed primarily for the fitness flooring market with its intended use being for free-weight areas where a high-performance floor finish is required to provide reduction in impact and structure borne sound. REGUPOL sonusfit t 110 tiles are supplied with dowel fixings to enable a simple and effective method of installation and can be installed as a single item or as part of a bespoke floor build-up.
Features and benefits:
- Integrated fitness floor covering for gyms.
- Suitable combination of acoustics and sport functionality.
- Flexible design for various sound protection levels.
- For retrofitting and new buildings.
General information
Color | Black Other |
Finish | Smooth |
Material | Rubber |
Shape | Rectangle |
Length | 1000 mm |
Width | 500 mm |
Height | 45 mm 70 mm |
Warranty description | One year Other |
Uniclass | |
CAWS | M50/110 Resilient floor tiling M50/10 Resilient floor tiling |
Specification data - Resilient sheet floor covering systems
Preparation | |
Base | Assessing suitability of bases. |
Resilient underlayer | |
Type | REGUPOL sonusfit t 110. |
Fixing | Loose laid. |
Sheet | |
Type | REGUPOL everroll. |
Fixing | Manufacturer's standard. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Acoustic performance | ∆LAF,max 22 dB. Manufacturer guidanceTesting under realistic application conditions: 30 kg, 400 mm. |
Tile size | 1000 x 500 x 41 mm. |
Overall thickness | 45 mm. Manufacturer guidanceIncluding REGUPOL everroll - 4 mm. |
Weight | 14 kg per tile/ 28 kg/m². |
Sliding properties | Sliding behavior: DIN EN 13893, ≥0,3 μ. Manufacturer guidanceREGUPOL everroll wear layer. |
Slip resistance | To DIN 51097, C and DIN 51130, R 10. Manufacturer guidanceREGUPOL everroll wear layer. |
Light reflectance | To DIN EN 13745, 3.2–29.6 %. Guidance for specification option: Depending on colour. Manufacturer guidanceREGUPOL everroll wear layer. |
Abrasion resistance | To DIN ISO 4649, 83 mm³. Manufacturer guidanceREGUPOL everroll wear layer. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Rubber |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001:2018
ISO 9001 Quality Management
SIG ISO 9001
Literature

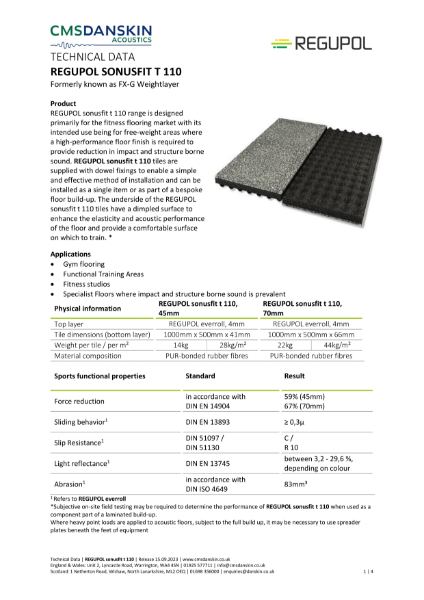

REGUPOL SONUSFIT 110 - Technical Data Sheet
