Refinedoor - Type 4 - PVC Postformed Severe Duty Doorset
Verified by manufacturer 6 months ago
4A - Lever, Sashlock, Closer (Single bedroom, Switch Room, Consultation Room)
4A - Lever, Sashlock, Closer (Single bedroom, Switch Room, Consultation Room)
BM Trada
Certificate type
ISO 9001 Quality Management
Certificate type

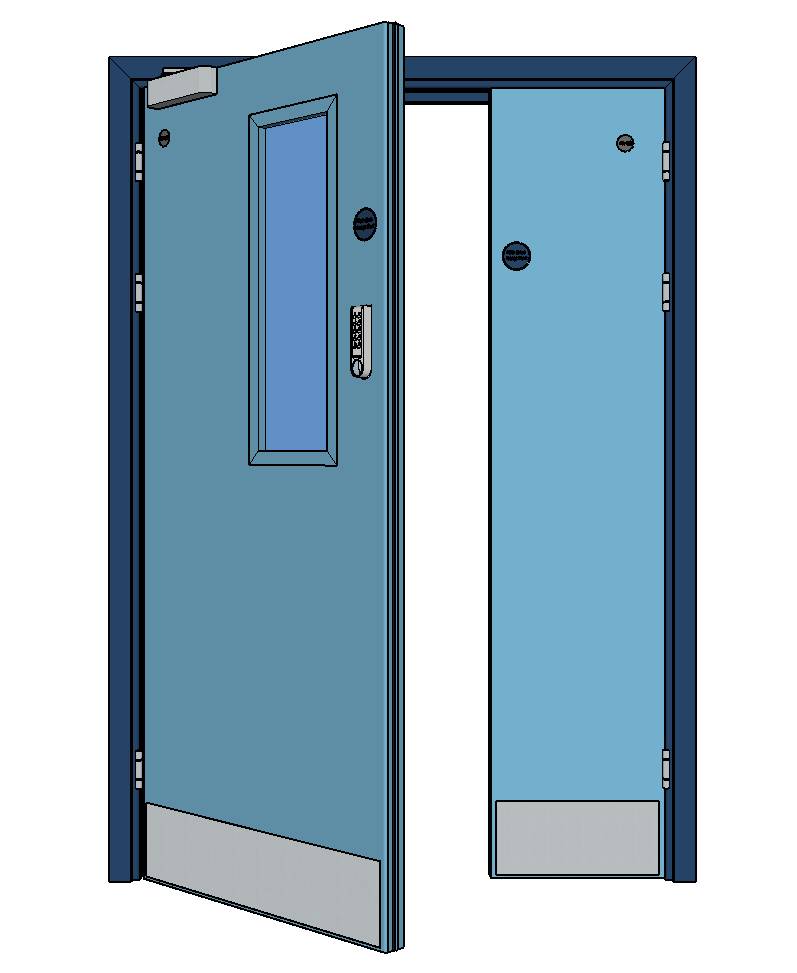

Single Swing, 1.5P, FD60S, 35dB PVC Postformed severe duty doorset, designed for high use within hospital, medical and healthcare environments.
Application
Suitable for bedrooms, switch rooms, consultation rooms, stairs, lobbies, corridors, treatment, seminar and prep rooms, staff rooms, and lockable wards.
Description
Refinedoor offers tailored doorset packages, which are designed for their application and environment. The range offers ‘tried and tested’ products of the highest quality, all of which are fully backed by the relevant fire test evidence and certification.
The sole purpose of our Refinedoor range is to make the whole specification process easier and more efficient. Thereby, helping Architects and Estates Teams to ‘get it right, first time’.Offering… The right product, for the right application at the right price.
Features and benefits:
- Approximately 20% cost saving.
- Configurable design (ask about our configurator).
- Efficient, repeatable and sustainable project delivery.
- Designed with application and environment in mind.
- Faster specification and sign-off.
- Tried and tested doorsets.
- Complete doorset package including ironmongery (our Define Stainless steel range).
General information
Color | Beige Black Blue Brown Cream |
Finish | Textured Smooth |
Material | Wood Timber PVC Glass |
Shape | Rectangle |
Width | 926 mm 496 mm |
Height | 2051 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/480 Doorsets L20/410 Wood doorsets L20/20 Wood flush doors |
Specification data - Wood doorsets
Standard | To BS 476 Part 22:1987, BS EN 1634-1. |
Configuration | Leaf and part-leaf, single-action. |
Doorset size | 1500 x 2095 mm (frame). |
Performance | |
Smoke leakage | 8.8 m³/h @ 5 Pa, 57.51m³/h @ 100 Pa. |
Reaction to fire | FD60s. |
Acoustic performance | 35 dB. |
Strength and durability | Severe Duty. |
Frame | |
Material | Hardwood. |
Perimeter seals or inserts | Batwing Seals.Intumescent Seals. |
Finish | Woodgrain.Cashmere. |
Colour | Aqua.Buttermilk.Carbon.Chalk.Claret.Cobble.Denim.Flint.Grape.Gunpowder.Jade.Lupin.Mandarin.Midnight.Mushroom.Peppermint.Primrose.Snowflake.Verdure.American Black Walnut.American White Oak.Ellmau Beech.Swiss Elm.Trojan Oak. |
Door leaf | |
Thickness | 57/ 58 mm. |
Perimeter seals | Intumescent strip.Dropseal. |
Finish | Woodgrain.Cashmere. |
Colour | |
External | Aqua.Buttermilk.Carbon.Chalk.Claret.Cobble.Denim.Flint.Grape.Gunpowder.Jade.Lupin.Mandarin.Midnight.Mushroom.Peppermint.Primrose.Snowflake.Verdure.American Black Walnut.American White Oak.Ellmau Beech.Swiss Elm.Trojan Oak. |
Beading | |
Material | PVC. |
Planted stops | |
Wood species | PVC to match frame. |
Hardware | Lever handle, sashlock, slide arm closer (set no. 027-L). |
Architraves | |
Material | PVC to match frame. |
Vision panel | Flush Warning Light. Guidance for specification option: Fitted instead of the vision panel. |
Third-party certification | ISO 9001:2015, ISO 114001:2015, FSC, BM Trada, Q-Mark. |
Sustainability data
Contains Red List materials | Yes |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
