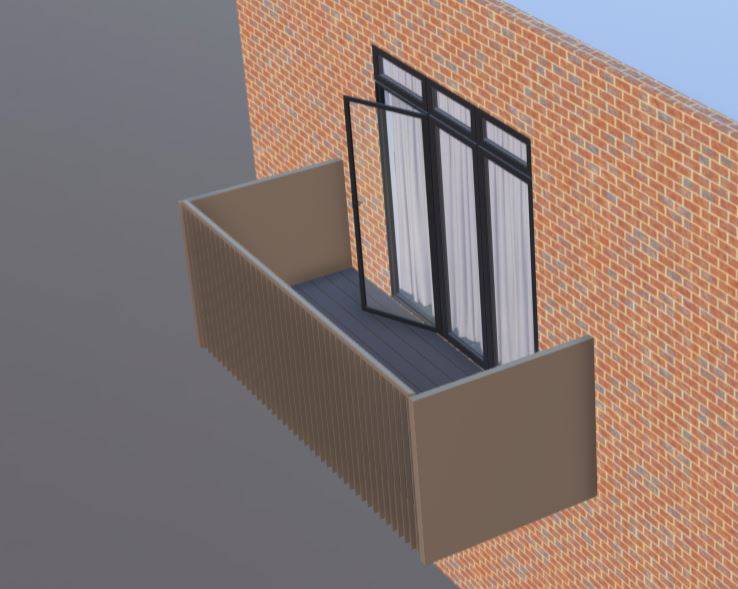

Rectangular Vertical Bar Glide-On Cassette Balcony with Solid End Panels

Application

Suitable for residential applications.

Description

Glide-on Cassette® balconies are a patented concept, incorporating the balustrade, frame, deck and soffits into one fully offsite assembled MMC product. This makes it simpler, faster and more cost-effective to provide rapidly installed, rigid balconies. The cassette balconies incorporate proven solutions for drainage, rainwater and fire-resistance.



The frame of the balcony is manufactured from aluminium Class A materials and the deck and soffits are clad onto them. They work together to allow the rainwater to drain through the balcony cassette and into the soffits below, where they act as drip trays dispersing the rainwater quickly and evenly.



Features and benefits:

  • Each Cassette® is delivered preassembled and factory finished to a high-quality standard with minimal on-site finishing.
  • Offsite balconies reduce time, costs and risk while increasing quality assurance.
  • Offsite manufacturing avoids the hassle of coordinating multiple trades and site storage of materials.
  • Templates with cast-in anchors avoid RC frame casting issues, so that balconies fit the first time.

General information

Shape

Rectangle

Color

Bronze

Finish

Powder coated

Material

Aluminium

Size

4000 x 1500 mm

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems Enhanced data

Infills

Front: Polyester powder coated aluminium vertical bars, mid bronze, mechanically fixed to Cassette® . Left and right: Polyester powder coated aluminium solid end box, mid bronze, mechanically fixed to Cassette®.

Rails

-

Handrails

Rectangular polyester powder coated aluminium handrail 60 x 30 mm.

Fixing to parent structure

Cast-in balcony anchor, preassembled with thermal breaks and concrete edge casting shutter.

Arms

Two piece galvanized steel arms.

Framing

Class A aluminium.

Soffit

Polyester powder coated aluminium soffits, mid bronze, with 400 mm wide drip trays draining to front of balcony.

Decking

Aluminum composite decking (Fire Class A) fixed with hidden clips. Sepia Brown, grooved finish.

Fascia

Front: Polyester powder coated aluminium, mid bronze. Fascias to be fixed behind bars. Left and right: No fascia.
