Prefabricated aluminium balcony with clear glass balustrade.
Suitable for residential applications.
Glide-on Cassette® balconies are a patented concept, incorporating the balustrade, frame, deck and soffits into one fully offsite assembled MMC product. This makes it simpler, faster and more cost-effective to provide rapidly installed, rigid balconies. The cassette balconies incorporate proven solutions for drainage, rainwater and fire-resistance.
The frame of the balcony is manufactured from aluminium Class A materials and the deck and soffits are clad onto them. They work together to allow the rainwater to drain through the balcony cassette and into the soffits below, where they act as drip trays dispersing the rainwater to a gutter and RWP.
Features and benefits:
4000 x 1500 mm
L30/55 Proprietary balustrades
L30/560 Proprietary balustrades
21.5 mm frameless structural toughened and laminated glass, comprising two panels of toughened 10 mm glass with 1.5 mm PVB interlayer, mechanically fixed to Cassette®.
50 mm diameter slotted 316 grade stainless steel handrail.
Fixing to parent structure
Cast-in balcony anchor, preassembled with thermal breaks and concrete edge casting shutter.
Two piece galvanized steel arms.
Class A aluminium.
Polyester powder coated aluminium soffits, with 400 mm wide drip trays positively draining to gutter and RWP at rear of balcony.
Aluminum composite decking (Fire Class A) fixed with hidden clips. Quartz Grey, grooved finish.
Polyester powder coated aluminium, light grey.
Corner Left Side Glass Glide-On Cassette Balcony
Corner Left Side Vertical Bar Glide-On Cassette Balcony
Corner Right Side Glass Glide-On Cassette Balcony
Corner Right Side Vertical Bar Glide-On Cassette Balcony
Glide-On Aluminium Cassette Balcony

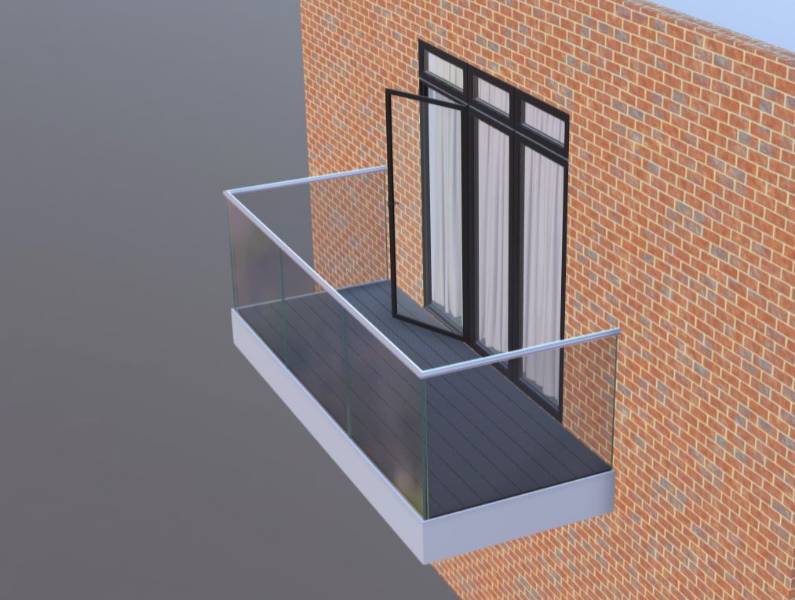

Rectangular Clear Glass Glide-On Cassette Balcony with Fascia Covering Fixings - Controlled Drainage
