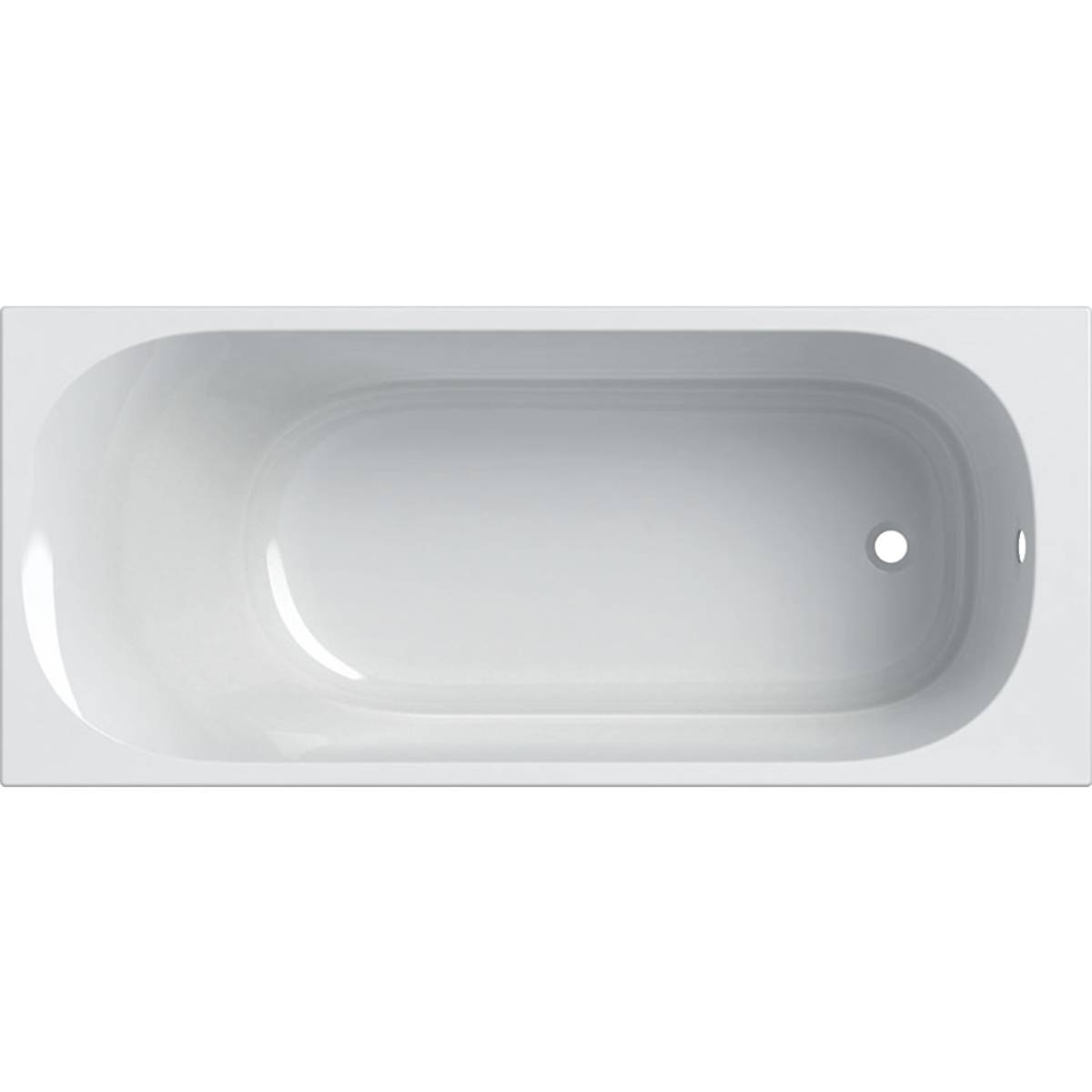

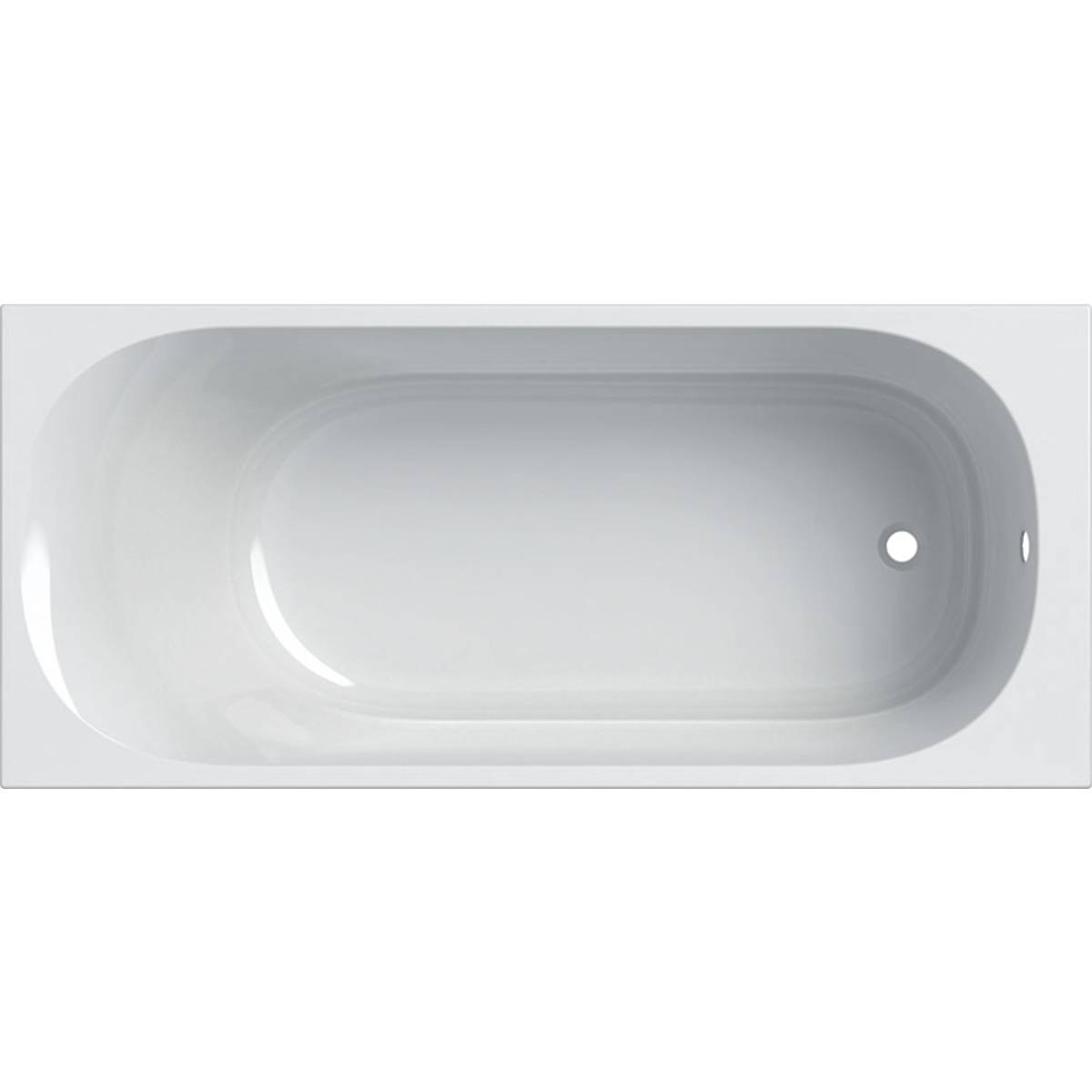

Rectangular bathtub Soana, slim rim, with feet
Verified by manufacturer over a year ago
554.001.01.1, Rectangular bathtub Soana, slim rim, with feet: L=160cm, B=70cm
554.001.01.1, Rectangular bathtub Soana, slim rim, with feet: L=160cm, B=70cm
Rectangular bath tub.
Application
- For private bathrooms and hotels.
- For installation with bathtub feet or supports.
Description
Rectangular bathtub Soana, slim rim, with feet.
Features and benefits:
- Slim rim.
- Rectangular.
- Outlet at foot.
- Built-in bathtub.
- Drain hole ø 52 mm.
General information
Color | White |
Finish | Gloss |
Material | Acrylic |
Shape | Rectangle |
Width | 1600 mm 1700 mm 1800 mm |
Height | 450 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangular. |
Standards | To BS EN 14516, Class 1. |
Materials | Acrylic. |
Colour | White. |
Size | 1600 x 700 mm. |
Volume to overflow (maximum) | 195 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Overflow hole. |
Waste | Bottom waste outlet. |
Accessories | Not required. 150.247.00.1, Connection set for bathtubs made of acrylic, with overflow. 150.713.21.1, Bathtub drain with turn handle and inlet, d52, length 73 cm, with ready-to-fit-set and straight connector. 150.425.21.1, Ready-to-fit set d52, for bathtub drain with turn handle and inlet, gloss chrome plated. 150.425.46.1, Ready-to-fit set d52, for bathtub drain with turn handle and inlet, matt chrome plated. |
