Three-wing automatic revolving door.

Jump to:
+44 (0)1698 376411 www.recorduk.co.uk

Application

Suitable for commercial offices and public buildings with a lower volume of pedestrian traffic.

Description

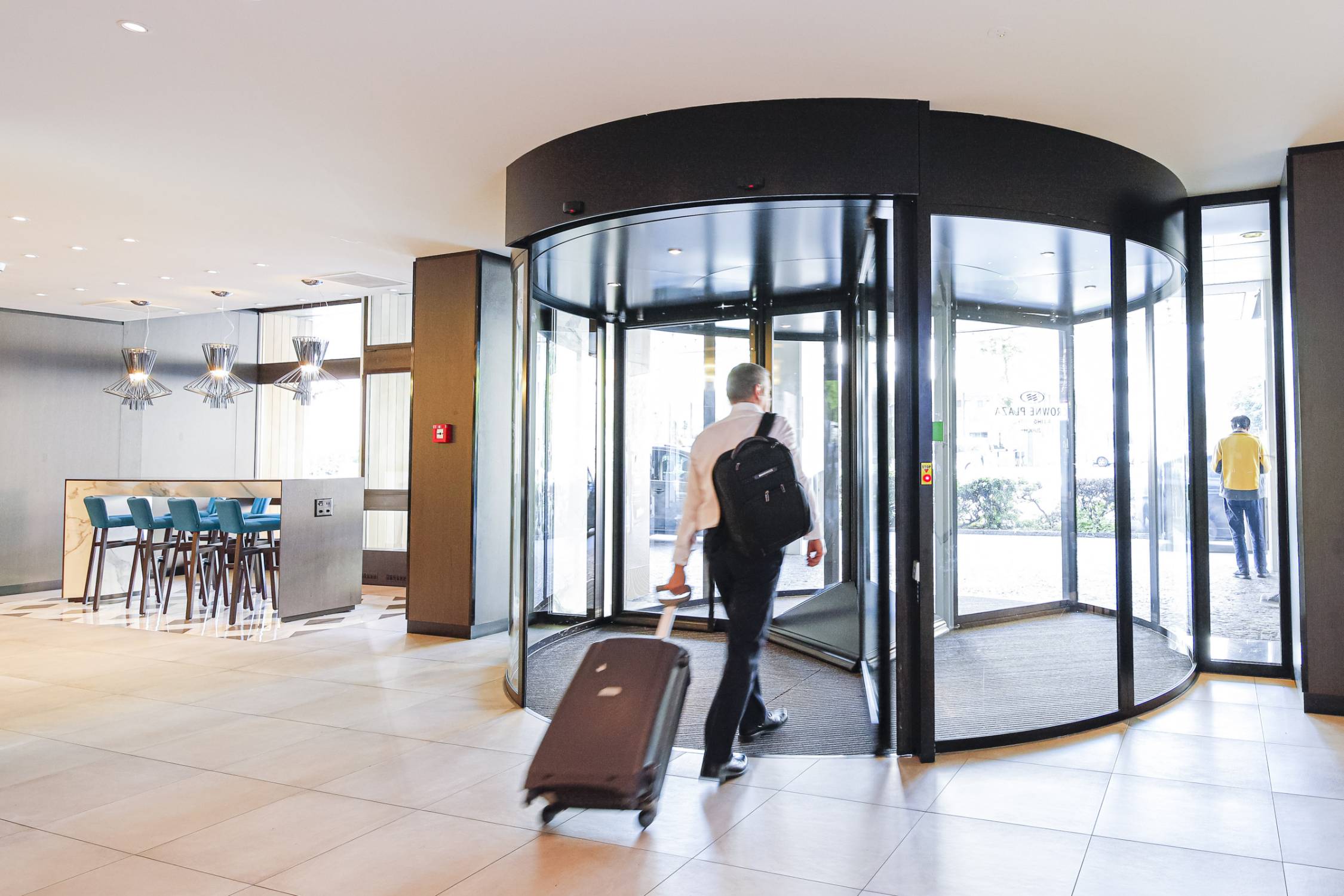

The record K 32 automatic revolving door is a 3-wing revolving door with wider, more comfortable compartments so are better suited to lower traffic environments.


By never opening to the elements these revolving doors create a continuous seal saving money on heating costs and also preventing dust and dirt from entering.


These 3-wing revolving doors maintain a constant ambient temperature, which creates a welcoming luxury environment.


Characterized by variable diameters from 1600 to 8000 mm. The automatic variants permit different potential uses. To meet increased security requirements, burglar-resistant versions are class RC2 or RC3 certified.


Features and benefits:

  • Three-wing revolving doors offer greater walking comfort due to the larger segments.
  • Tailor-made, energy-efficient, representative and design oriented.
  • Revolving doors protect the interior of the building from draughts, noise and dust.
  • The reduced heat exchange contributes to optimizing the building energy balance.
  • Wide variety of designs. Design options range from closed systems in any colour to all-glass translucency, from stainless steel to aluminium, or from the classic drive concept in the top area to the concealed underfloor drive.
  • Low noise for a quieter environment
  • Central display cabinet available for high end hotels and boutiques.
  • Adaptable for wheelchair users and walking disabled
  • Drive fitted in ceiling or concealed under floor

General information

Color

Silver

Other

Any RAL or Eloxal colour.

Clear

Beige

Black

Show more

Finish

Also available in stainless steel and brass finishes.

Anodized

Powder-coated

Material

Stainless steel

Steel

Brass

Aluminium

Glass

Shape

Circle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_04 Automatic revolving doorsetsPrimary

CAWS

L20/495 Automatic revolving doors

L20/500 Manual revolving doors

Specification data - Automatic revolving doorsets

Third party accreditation

IFT Rosenheim RC2/RC3 ADSA Constructionline TUV type-tested.

Standard

To EN 16005, EN 1627.

Configuration

Three-wing.

Materials and finishes

-

Drum walls

1.4301 stainless steel (304).

1.4401 stainless steel (316).

Anodized.

Brass.

Bronze.

RAL powder coated.

Insert requirements.

Activation and control system

-

Safety devices

Emergency stop switch.

Locking mechanism

Electro-mechanical.

Mechanical (manual).

Accessories

Not required.

Dust/ weather proof roof designs.

LED lighting.

Air curtain (electric/ hot water).

Night shutter (manual/ automatic).

Speed limitation.

Folding leaves (breakout).

Height

2000–3000 mm.

Insert requirements (special dimensions are possible).

Burglar resistance

Burglary protection RC2.

Access control and person separation with 3D camera available for security revolving door option.

Burgrary protection RC3.

Access control and person separation with 3D camera available for security revolving door option.

OutsideDiameter

1600–3000 mm.

CapacityPeople

  • Throughput capacity (based on bi-directional use).
  • Capacity is based on theoretical calculation with maximum occupancy of persons per segment per hour in both directions (without engagement).

1200–2500 per hour.

Passage width

Passage opening (inner sliding doors).

700–1400 mm.

Insert requirements (special dimensions are possible).

Canopy height

250–1000 mm.
