RDF Fixed Head Adjustable Decking Pedestal

Verified by manufacturer 2 months ago

RYNO

Adjustable decking pedestal with fixed head.

Jump to:
BIM object icon
+44 (0)203 967 3500 Website

Application

  • Roof areas, terraces, balconies, green roofs.
  • Structural podium decks.
  • Communal/ public areas.
  • Walkways.
  • Patio overlays/ renovations.
  • Gardens.

Description

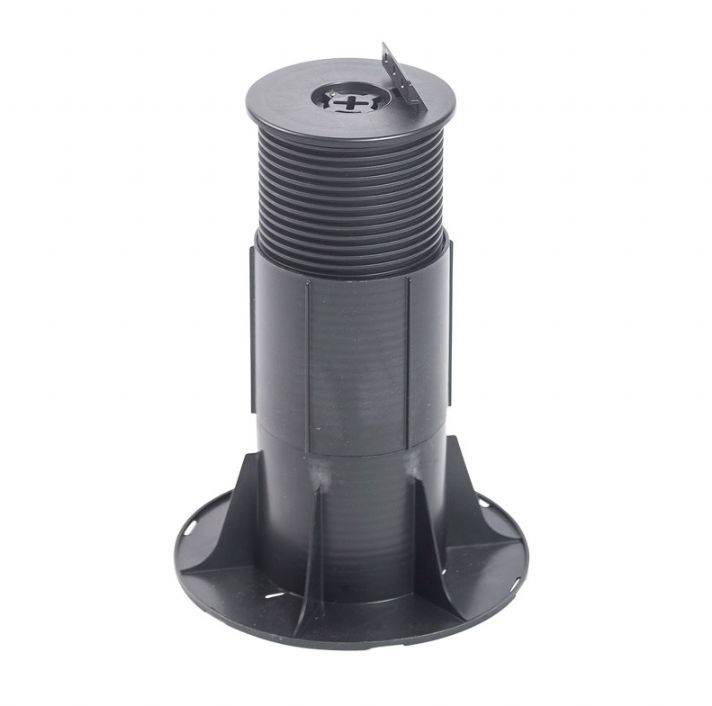

Fixed-head adjustable decking pedestal designed to support all conventional decking and paving systems on completely level surfaces. Its 22–550 mm height range makes it suitable for areas with problematic height restrictions, as well as areas where greater height build up is required.


Features and benefits:

  • Joists of up to 80 mm width can be used and are fixed through a heavy-duty locator bracket.

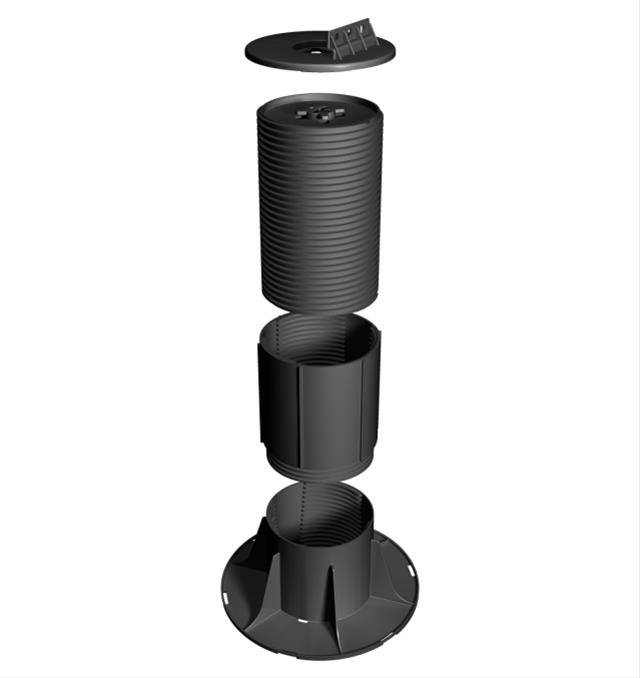

  • Height extension collar which adds 126 mm of incremental height build-up, up to 500 mm.
  • Threaded column allows millimetre perfect adjustment.
  • Quick to install.
  • High loading capability ensuring stability of decking area.
  • Wide base evenly spreads load, protecting membranes.
  • Resistant to mould, algae, alkali, bitumen, UV.

General information

Color

Black

Material

Polypropylene

Recyclable, UV resistant.

Shape

Circle

Width

200 mm

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

K11/295 Floating floor system

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Specification data - Decking and paving pedestals

Pedestal type

Adjustable.

Fixed head.

Grade

1000 kg.

Material

Polypropylene.

Adjustment

Specify combinations of pedestals as required to suit uneven ground.

22-35 mm.

RDF-1.

35–55 mm.

RDF-2.

55–95 mm.

RDF-3.

95–165 mm.

RDF-4.

165–235 mm.

RDF-5.

200–270 mm.

RDF-6.

270–240 mm.

RDF-7.

305–375 mm.

RDF-8.

365–445 mm.

RDF-9.

410–480 mm.

RDF-10.

470–550 mm.

RDF-11.

Accessories

None.

Base rubber shock pad.

Installed to enhance acoustic properties, or where membrane requires additional protection.

Base diameter

200 mm.

Head diameter

120 mm.

Bearing capacity

≤80 mm.

Working temperature

-30–120°C.
