RDA Self Levelling Adjustable Decking Pedestal

Verified by manufacturer 5 months ago

Ryno Ltd

Self-levelling adjustable decking pedestal.

Jump to:
BIM object icon
+44 (0)203 967 3500 Website

Application

  • Roof areas, terraces, balconies, green roofs.
  • Structural podium decks.
  • Communal/ public areas.
  • Walkways.
  • Patio overlays/ renovations.
  • Gardens.

Description

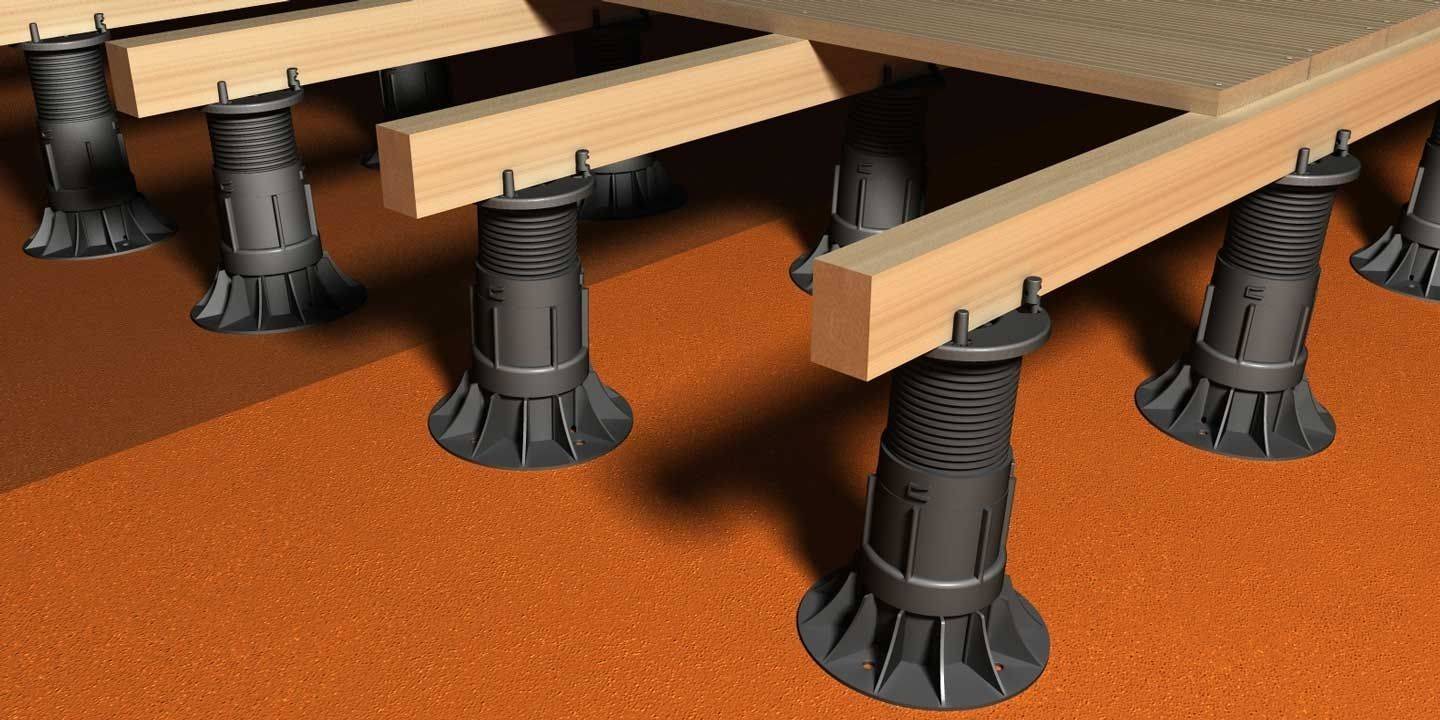

Self-levelling adjustable pedestals are designed to support any type of decking or flooring joist, offering the highest compressive strength of any other pedestal system.

The exclusive self-levelling head and height range will accommodate even the most complex decking issues – including sloping areas, drainage and maintenance access.


Features and benefits:

  • Quick to install and easy to adjust.
  • Wide supporting base protects membranes.
  • Give decking a longer lifespan by improving air circulation and helping prevent rot.
  • Resistant to mould, algae, alkali, bitumen, UV.
  • Each pedestal has a ten-year guarantee.
  • TDCA - DeckMark approved.

General information

Color

Black

Material

Polypropylene

Recyclable, UV resistant.

Shape

Circle

Width

210 mm

220 mm

WarrantyDescription

Ten year

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

K11/295 Floating floor system

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Specification data - Decking and paving pedestals

Pedestal type

Adjustable, self-levelling.

Grade

2100 kg.

Material

Polypropylene.

Adjustment

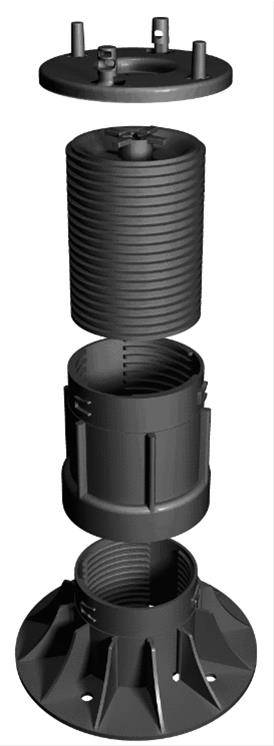

Heavy grade threaded section allows for 1 mm adjustments, within the given range.

40–56 mm.

RDA-1. Base diameter: 210 mm.

50–70 mm.

RDA-2. Base diameter: 210 mm.

70–110 mm.

RDA-3. Base diameter: 210 mm.

110–160 mm.

RDA-4. Base diameter: 220 mm.

150–210 mm.

RDA-5. Base diameter: 220 mm.

200–300 mm.

RDA-6. Base diameter: 220 mm.

300–400 mm.

RDA-7. Base diameter: 220 mm.

400–500 mm.

RDA-8. Base diameter: 220 mm.

500–600 mm.

RDA-9. Base diameter: 220 mm.

600–700 mm.

RDA-10. Base diameter: 220 mm.

700–800 mm.

RDA-11. Base diameter: 220 mm.

800–900 mm.

RDA-12. Base diameter: 220 mm.

900–1000 mm.

RDA-13. Base diameter: 220 mm.

Accessories

Not required.

Deck tile head.

For use when installing decking tiles. To match RDA pedestal.

Head locking ring.

To match RDA pedestal.

Base rubber shock pad.

Installed to enhance acoustic properties, or where membrane requires additional protection. To match RDA pedestal.

Base diameter

210 mm.

40–110 mm: RDA-1, RDA-2, RDA-3.

220 mm.

110–1000 mm: RDA-4, RDA-5, RDA-6, RDA-7, RDA-8, RDA-9, RDA-10, RDA-11, RDA-12, RDA-13.

Working temperature

-40°C to 120°C

Head diameter

133 mm.

Sustainability data

Recyclability

UV resistant polypropylene (PP), recyclable.
