Verified by manufacturer 8 days ago
Extruded polystyrene (XPS) thermal insulation designed for domestic and medium loadbearing floors.
Suitable for high performance residential and commercial buildings including domestic floors, industrial floors, cold storage floors and speciality floors.
High-performance, multipurpose extruded polystyrene (XPS) boards for the thermal insulation of domestic and industrial floors, basement and/ or cellar perimeter walls.
Features and benefits:
The skin of the extruded board has a smooth surface.
Homogeneous, closed-cell material structure comprised of extruded polystyrene (XPS), a rigid form of insulation.
E20/200 Proprietary underslab insulation
E20/30 Underslab insulation
K11/115 Battened plywood floating floor
K11/125 Battened particleboard floating floor
K11/135 Battened oriented strand board floating floor
K11/145 Battened cement-bonded particleboard floating floor
K11/20 Battened particleboard floating floor
K11/215 Plywood floating floor
K11/225 Particleboard floating floor
K11/235 Oriented strand board floating floor
K11/245 Cement bonded particleboard floating floor
K11/25 Particleboard floating floor
K20/150 Battened timber board floating floor
K20/20 Battened timber board floating floor
K21/120 Battened wood flooring
K21/130 Battened wood floating floor
K21/30 Wood lining on battens
M10/290 Floating construction
M10/40 Floating construction
M13/260 Floating construction
M13/40 Floating construction
P10/250 Insulation supported between floor joists
P10/50 Insulation supported between joists
To BS EN 13164.
Third party product certification
BRE, BBA, CE 13164.
To BS EN 13501-1.
Euro Class E.
Products contain an ecologically safe flame-retardant additive.
Compressive strength (minimum) at 10% compression
To EN 826.
Thermal conductivity (maximum)
To EN 13164.
50–125 mm thickness dependent on required U-value and application.
Face size (length x width)
2500 x 600 mm.
The maximum installation depth of the thermal insulation is determined by the load: the horizontal pressure must not exceed the compressive strength of the boards, taking into account the value of the permanent load.
Smooth surface skin (extrusion skin).
This product must be laid with no gaps between the boards in structures with contact to soil. For gluing, solvent-free adhesives must be used. Follow the supplier’s guidance.

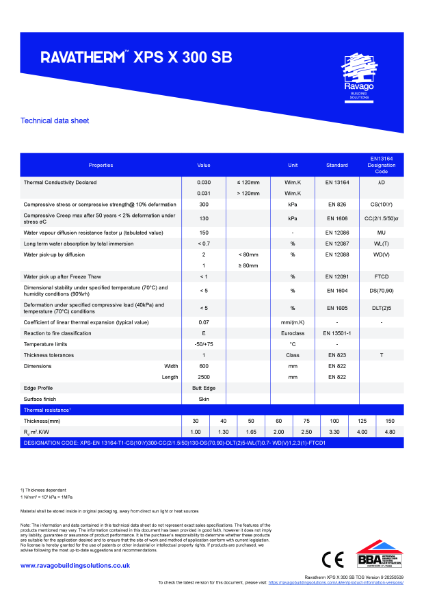

RAVATHERM XPS X 300 SB
Primarily used for flooring application.
-50°C to +75°C maximum.
Provides the permanent application temperature of Ravatherm XPS X products. At higher temperatures, the boards will start to soften and suffer permanent deformation.
Compressive creep (design load) maximum 2% deflection after 50 years
To EN 1606.
Thermal resistance (R-value)
(Rd m2 .K/W)
Country of product manufacture
A1-A3 (production stage) as defined in BS EN 15804
2.77 kg CO₂ eq/kg
Ravatherm XPS X uses carbon dioxide as a blowing agent, which gives it an ozone-depleting potential (ODP) of zero and a Global Warming Potential (GWP) of less than five.
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
Extruded Polystyrene (XPS) Foam Insulation with halogen free blowing agent
