RASCOtec Collar
Verified by manufacturer 2 months ago
A groutable foam collar to waterproof junctions with penetrating components in concrete.
Application
Collars are used to waterproof junctions with penetrating components such as pipes, shafts, groundwater relief pipes and gullies regardless of their constituent material.
Description

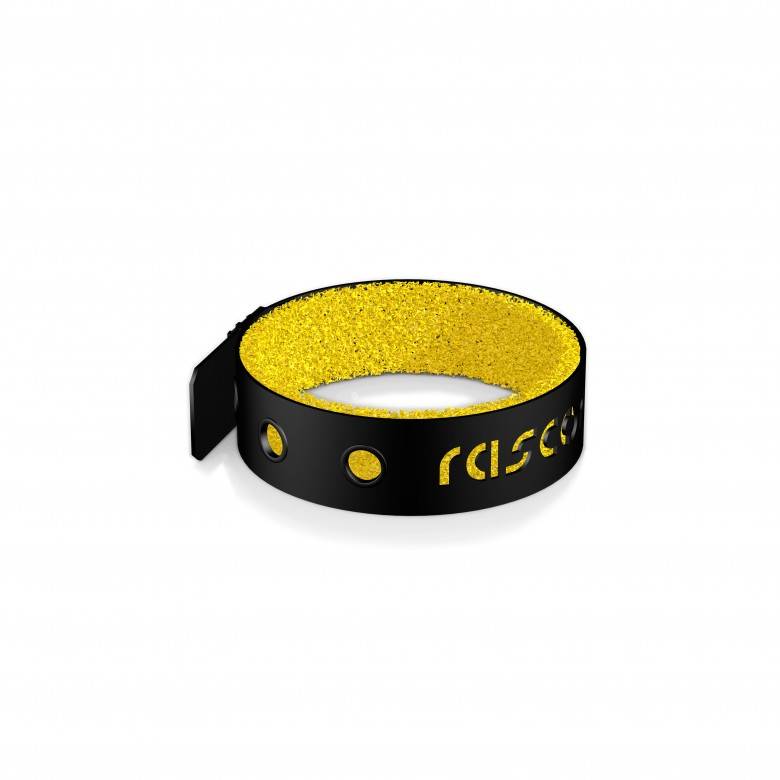

The RASCOtec Collar is a groutable section made from special foam.
RASCOtec injection collars are installed in the middle of the concrete elements around built-in components such as wastewater or groundwater relief pipes, gullies, shafts, underwater floodlights or other penetrations, and serve as a receptacle for the subsequently injected grout.
RASCOtec injection collars can be used regardless of the shape and constituent material of the penetrating element. The only constraint is for the compressive strength of this element to be adequate to withstand the relevant loads. Collars are best fixed using RASCOtec MSB Collar Strap.
Features and benefits:
- Easy fixing.
- Use in conjunction with any material type.
- Independent of geometry of built-in component.
- Weather-independent installation.
General information
Color | Yellow Black |
Material | Polyester |
Shape | Circle |
Length | Bespoke |
Width | 60 mm |
Height | 15 mm |
Warranty description | 25 year |
Uniclass | Pr_65_52_61_34 Groutable collars Primary |
CAWS | E40/310 Flexible waterstops E40/320 Hydrophilic waterstops |
Specification data - Groutable collars
Manufacturer | Rascor UK. |
Product reference | RASCOtec Collar. |
Certification | Conformity certificate, Asendorf Bauchemie Consult GmbH. |
Pipe collar | Polyester foam collar. |
Injection material | Manufacturer guidanceA wide variety of grouting materials can be used in conjunction with the RASCOtec injection collars. Consult manufacturer and insert requirements. |
Joint strap | Not required. RASCOtec MSB 110 49 cm. RASCOtec MSB 125 57 cm. RASCOtec MSB 150 65 cm. Manufacturer guidanceCollars are best fixed using RASCOtec MSB Collar Strap. |
Integral accessories | RASCOfix Cable Ties, RASCOfix Concrete Adhesive Tape, Nozzle hose. |
Sustainability data
Material | Polyester |
