Rapidor Imperial - Well-sealed and Fastest Opening Speed Door
Compare variants

Rapidor Imperial - Well-sealed and Fastest Opening Speed Door

Verified by manufacturer 9 days ago

PVC Curtain

Tekta UK Variant:

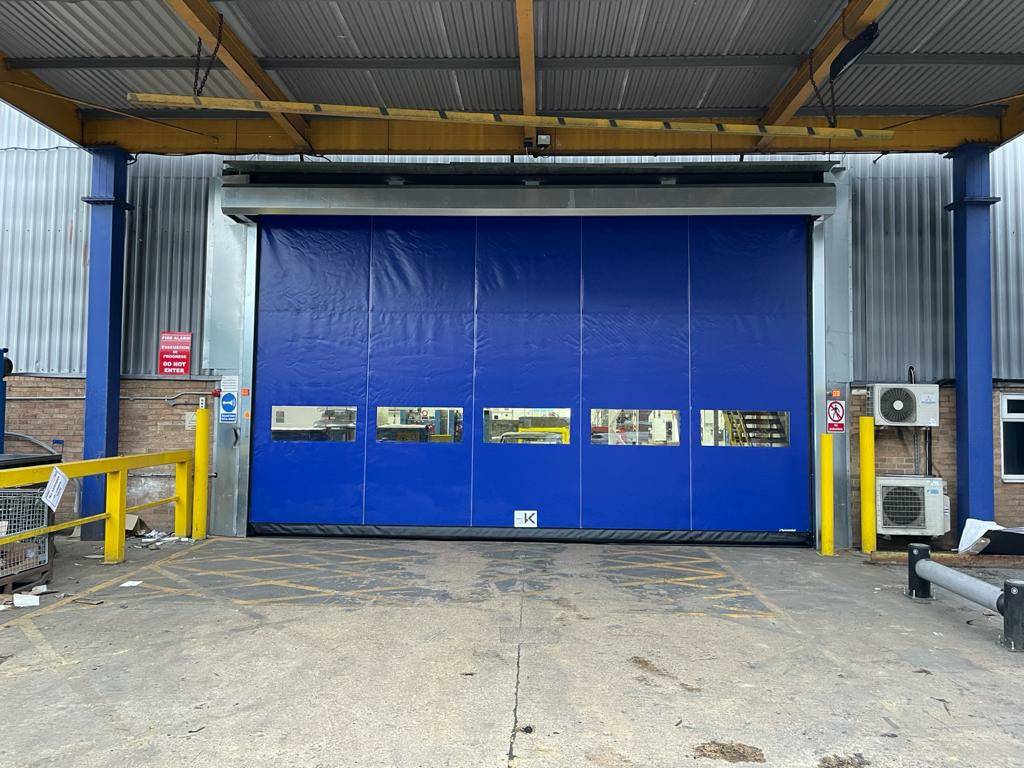

A rapid-rise door designed for external openings where a high wind class is needed, fitted with a push/ pull drive system.

Jump to:
+ (44) 0330 7000 333 www.tektauk.com

Application

Suitable for external openings.

Description

A rapid-rise door designed for external openings with a push/ pull drive system that interlocks with the edge of the curtain, giving it the ability to open and close in very windy conditions.


Features and benefits:

  • Impact-resistant and self-repairing
  • Suitable for high traffic
  • zipper edge which results in a well-sealed door
  • Low air permeability
  • Excellent hygiene barrier
  • Wide variety of vision panel designs & sizes
  • Specialist variations available for freezer rooms, ATEX areas or air-tight clean rooms.
  • Cut the cost of energy wastage
  • Quiet and reliable operation
  • Opening speeds up to 3 metres/second
  • Tough PVC fabric curtain available in a wide range of colours
  • Door frames available in Stainless Steel, Galvanised & Powdercoat colour finishes
  • Wind class 5


General information

Color

Curtain colour.

Blue

Brown

Grey

Green

Ivory

Show more

Finish

Galvanized

Powder-coated

Material

Stainless steel

Steel

Polyvinyl chloride (PVC)

Shape

Square

Rectangle

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/60 Doors

L20/570 High-speed doors

Product range

Rapidor Speed Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

3.0 m/s (maximum).

Closing

1.0 m/s.

Format

Rapid roll up.

Arrangement

Face-fitted across opening.

Fitted into reveal.

Curtain material

1300 g/m² PVC curtain.

Standard.

Frame and guides

-

Material

Galvanized steel, patented sliding system, PE-HD, self-lubricant.

Standard.

Stainless steel, Grade 441, patented sliding system, PE-HD, self-lubricant.

Optional.

Stainless steel, Grade 316, patented sliding system, PE-HD, self-lubricant.

Optional.

Powder-coated steel, patented sliding system, PE-HD, self-lubricant.

Optional.

Finish and colour

RAL 9010.

RAL 3002.

RAL 5010.

RAL 7037.

RAL 9005.

RAL.

Any RAL colour, insert requirement.

Operation

Push start/ stop button.

Standards

To BS EN 12604 and EN 13241.

Control panel

Powder-coated steel (IP54).

Standard.

PVC (IP65).

Optional.

Stainless steel (IP54).

Optional.

Power supply

Three phase 230, 380, 500 V, 50/ 60 Hz, (10–16 A).

Inverter system.

Safety

2500/ 2000 mm Light Curtain (IP67).

Air permeability

To EN 12426, Class 4.

ThermalTransmittance

To EN 12428, 5.80 W/m²·K.

Standard PVC Curtain.

Resistance to water penetration

To EN 12425, Class 3.

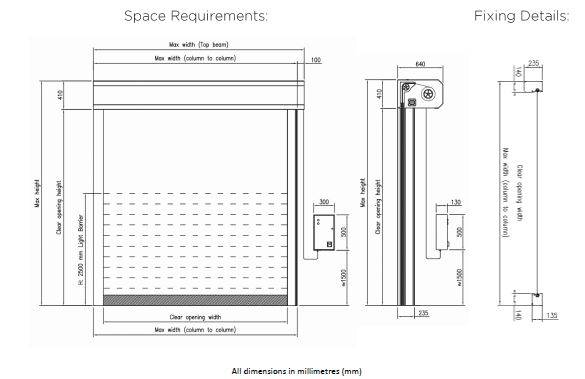

Dimensions

W x H.

8000 x 6000 mm (maximum).

Insert requirement.

5000 x 5000 mm (maximum).

Type 2, consult manufacturer and insert requirement.

Battery back-up

Not required.

UPS Battery.

Emergency release

Hand Crank

Standard.

Chain.

Optional.

Counterweight.

Optional.

UPS Backup.

Optional.

Ingress protection (IP) rating

Powder-coated steel and Stainless steel: IP54, PVC: IP65.

Operating temperature

+1 to +70°C.

Curtain colour

RAL 9010.

RAL 1015.

RAL 1003.

RAL 2004.

RAL 3002.

Show more

Sound insulation

18 dB.

Standard curtain.

Vision panel

Not required.

One row 500 mm high.

Standard option.

Two rows 300 mm high.

Standard option.

Additional rows round/ full height/ mesh.

Optional, insert requirements.

Motor

Direct drive motor with fall back system to EN 13241.
