Application

For use in varying applications, including:

  • Large or small roof areas.
  • Classic or contemporary buildings.
  • Domestic or commercial use.

The sizes of gutters and pipes used in a rainwater system should be selected with consideration of the size of the roof and the position of downpipes (specified separately) in order to ensure that typical rainfall does not cause the system to overflow - consult manufacturer for further details.

Description

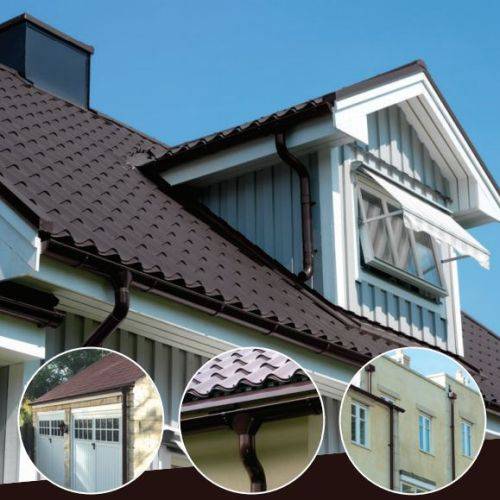

Rainline rainwater downpipes and fittings, finished in coffee brown, RAL 8019.

Features and benefits:

  • Low carbon footprint, and low overall environmental impact.
  • Durable and flexible.
  • Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement when compared to plastic.
  • Minimal maintenance required.
  • Highly resistant to attack from vandals – and further reinforcement can be added to the bottom of 2 m pipes if required.
  • UV stable.
  • Available in four sizes, three lengths, and a range of other colour options - consult manufacturer's literature for details.
  • Quick and easy to install.
  • Provides a cost effective solution.
  • Supplied with a 15-year warranty.
  • Manufactured in accordance with BS EN 12056-3: 2000.

Applications:

For use in varying applications, including:

  • Large or small roof areas.
  • Classic or contemporary buildings.
  • Domestic or commercial use.

The sizes of gutters and pipes used in a rainwater system should be selected with consideration of the size of the roof and the position of downpipes (specified separately) in order to ensure that typical rainfall does not cause the system to overflow - consult manufacturer for further details.

General information
Finish

Painted, RAL gloss finish

Material

Roll formed, 0.6 mm steel with solid seam

Uniclass 2015 Galvanized steel rainwater pipes and fittings (Pr_65_52_03_31)
Specification data
Product Reference

Rainline Coffee Brown Rainwater Downpipe

Type

75 mm downpipe, 1 m length (SROR175CB)

75 mm downpipe, 2.5 m length (SROR2575CB)

75 mm downpipe, 3 m length (SROR375CB)

87 mm downpipe, 1 m length (SROR187CB)

87 mm downpipe, 2.5 m length (SROR2587CB)

87 mm downpipe, 3 m length (SROR387CB)

100 mm downpipe, 1 m length (SROR1100CB)

100 mm downpipe, 2.5 m length (SROR25100CB)

100 mm downpipe, 3 m length (SROR3100CB)

120 mm downpipe, 1 m length (SROR1120CB)

120 mm downpipe, 3 m length (SROR3120CB)

Fittings -
Bends

See 'Options' and insert requirements.

Intermediate pipes

75 mm MST intermediate pipe, 1 m (MST175CB)

87 mm MST intermediate pipe, 1 m (MST187CB)

100 mm MST intermediate pipe, 1 m (MST1100CB)

120 mm MST intermediate pipe, 1 m (MST1120CB)

As drawing

Contractors choice

Offsets

SOKN one-piece offset, 75 mm (SOKN75CB)

SOKN one-piece offset, 87 mm (SOKN87CB)

SOKN one-piece offset, 100 mm (SOKN100CB)

As drawing

Contractors choice

Access pipes

75 mm MSTRA rod access pipe, 1 m (MSTRA75CB)

87 mm MSTRA rod access pipe, 1 m (MSTRA87CB)

100 mm MSTRA rod access pipe, 1 m (MSTRA100CB)

As drawing

Contractors choice

Branches

GROR pipe branch, 75 mm (GROR75CB)

GROR pipe branch, 87 mm (GROR87CB)

GROR pipe branch, 100 mm (GROR100CB)

As drawing

Contractors choice

Connectors

SRORM pipe connector, 75 mm (SRORM75CB)

SRORM pipe connector, 87 mm (SRORM87CB)

SRORM pipe connector, 100 mm (SRORM100CB)

SRORM pipe connector, 1200 mm (SRORM120CB)

As drawing

Contractors choice

Shoes

BUTK drain shoe, 87 mm (BUTK87CB)

BUTK drain shoe, 100 mm (BUTK100CB)

UTK pipe shoe, 75 mm (UTK75CB)

UTK pipe shoe, 87 mm (UTK87CB)

UTK pipe shoe, 100 mm (UTK100CB)

UTK pipe shoe, 120 mm (UTK120CB)

As drawing

Contractors choice

Hoppers

VATKL large water hopper, 75 mm (VATKL75CB)

VATKL large water hopper, 87 mm (VATKL87CB)

VATKL large water hopper, 100 mm (VATKL100CB)

VATKR regular water hopper, 75 mm (VATKR75CB)

VATKR regular water hopper, 87 mm (VATKR87CB)

VATKR regular water hopper, 100 mm (VATKR100CB)

VATKS half round water hopper, 87 mm (VATKS87CB)

VATKS half round water hopper, 100 mm (VATKS100CB)

As drawing

Contractors choice

Diverters

FUTK adjustable diverter, 75 mm (FUTK75CB)

FUTK adjustable diverter, 87 mm (FUTK87CB)

FUTK adjustable diverter, 100 mm (FUTK100CB)

As drawing

Contractors choice

Sliding pipe

PRT sliding pipe, 87 mm (PRT87CB)

As drawing

Contractors choice

Brackets

SST spike for pipe bracket, 125 mm (SST125)

SST spike for pipe bracket, 175 mm (SST175)

SST spike for pipe bracket, 250 mm (SST250)

SST spike for pipe bracket, 300 mm (SST300)

SSVU universal pipe bracket, 75 mm (SSVU75CB)

SSVU universal pipe bracket, 87 mm (SSVU87CB)

SSVU universal pipe bracket, 100 mm (SSVU100CB)

SSVU universal pipe bracket, 120 mm (SSVU120CB)

As drawing

Contractors choice

Hose connector

SLAS hose connector, 87 mm (SLAS87CB)

As drawing

Contractors choice

Vandal resistant fittings

Not required

VSLS reinforced leaf trap, 102 mm (VSLS102CB)

VSLS09 reinforced pipe with leaf trap, 0.85 m, 102 mm (VSLS09102CB)

VSLS2 reinforced pipe with leaf trap, 2 m, 102 mm (VSLS2102CB)

VSLST2 reinforced pipe with raised leaf trap, 2 m, 102 mm (VSLST2102CB)

VUTK09 reinforced pipe with shoe, 0.85 m, 102 mm (VUTK09102CB)

VUTK2 reinforced pipe with shoe 2 m, 102 mm (VUTK2102CB)

Accessories/ Other requirements

A range of accessories is available. Consult manufacturer's literature and insert requirements.

Standard product features

Material:

Roll formed, 0.6 mm steel with solid seam.

Finish:

Painted, RAL gloss finish.

Product Options

Fittings:

- Bends:

  • BK 45° conical pipe bend, 75 mm (BK4575CB).
  • BK 45° conical pipe bend, 87 mm (BK4587CB).
  • BK 45° conical pipe bend, 100 mm (BK45100CB).
  • BK 70° conical pipe bend, 75 mm (BK7075CB).
  • BK 70° conical pipe bend, 87 mm (BK7087CB).
  • BK 70° conical pipe bend, 100 mm (BK70100CB).
  • BK 70° conical pipe bend, 120 mm (BK70120CB).
  • BK 85° conical pipe bend, 75 mm (BK8575CB).
  • BK 85° conical pipe bend, 87 mm (BK8587CB).
  • BK 85° conical pipe bend, 100 mm (BK85100CB).
  • BM 45° pipe bend with socket, 75 mm (BM4575CB).
  • BM 45° pipe bend with socket, 87 mm (BM4587CB).
  • BM 45° pipe bend with socket, 100 mm (BM45100CB).
  • BM 70° pipe bend with socket, 75 mm (BM7075CB).
  • BM 70° pipe bend with socket, 87 mm (BM7087CB).
  • BM 70° pipe bend with socket, 100 mm (BM70100CB).
  • BM 70° pipe bend with socket, 120 mm (BM70120CB).
  • BM 85° pipe bend with socket, 75 mm (BM8575CB).
  • BM 85° pipe bend with socket, 87 mm (BM8587CB).
  • BM 85° pipe bend with socket, 100 mm (BM85100CB).
