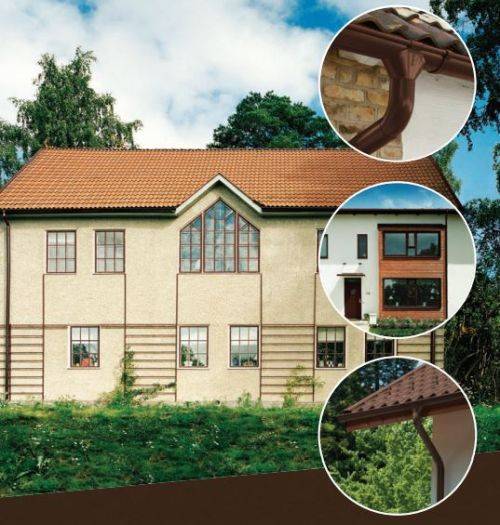

Rainline rainwater downpipes and fittings finished in brown (RAL 8017).

Jump to:
+44 (0)1604 788350 www.lindab.co.uk

Application

For use in varying applications, including:

  • Large or small roof areas.
  • Classic or contemporary buildings.
  • Domestic or commercial use.


When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes (specified separately) position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.

Description

Rainline rainwater downpipes and fittings finished in brown (RAL 8017).


Features and benefits:

  • Low carbon footprint and low overall environmental impact.
  • Durable and flexible.
  • Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
  • Minimal maintenance required.
  • Highly resistant to vandal attack; further reinforcement can be added to the bottom of 2 m pipes if required.
  • UV stable.
  • Available in four sizes, three lengths, and a range of other colour options. Consult manufacturer's literature for details.
  • Quick and easy to install.
  • Supplied with a 15-year warranty.
  • Manufactured in accordance with BS EN 12056-3: 2000.

General information

Color

Brown

RAL 8017.

Finish

Gloss

Painted, RAL gloss finish.

Material

Steel

Roll formed, 0.6 mm steel with solid seam.

Size

75 x 1000 mm

SROR175BN.

75 x 2500 mm

SROR2575BN.

75 x 3000 mm

SROR375BN.

WarrantyDescription

15 years

Uniclass 2015

Pr_65_52_03_31 Galvanized steel rainwater pipes and fittingsPrimary

CAWS

R10/395 Continuously hot dip coated steel pipework - pressed

Specification data - Galvanized steel rainwater pipes and fittings Enhanced data

Material

Steel

Roll formed, 0.6 mm steel with solid seam.

Size (nominal)

75 x 1000 mm.

SROR175BN.

75 x 2500 mm.

SROR2575BN.

75 x 3000 mm.

SROR375BN.

Finish and colour

-

Finish

Painted, RAL gloss finish.

Colour

Brown.

RAL 8017.

Integral accessories

Selection of brackets, sliding pipes, diverters, hoppers, shoes, connectors, branches, access pipes, offsets and intermediate pipes are available dependent on size.

Product Reference

Rainline Brown Rainwater Downpipe

Type

75 mm downpipe, 1 m length (SROR175BN).

75 mm downpipe, 2.5 m length (SROR2575BN).

75 mm downpipe, 3 m length (SROR375BN).

Intermediate pipes

75 mm MST intermediate pipe, 0.5 m (MST0575BN).

75 mm MST intermediate pipe, 1 m (MST175BN).

As drawing.

Contractor's choice.

Offsets

SOKN one-piece offset, 75 mm (SOKN75BN).

As drawing.

Contractor's choice.

Access pipes

75 mm MSTRA rod access pipe, 1 m (MSTRA75BN).

As drawing.

Contractor's choice.

Branches

GROR pipe branch, 75 mm (GROR75BN).

As drawing.

Contractor's choice.

Connectors

SRORM pipe connector, 75 mm (SRORM75BN).

As drawing.

Contractor's choice.

Shoes

BUTK drain shoe, 75 mm (BUTK75BN).

UTK pipe shoe, 75 mm (UTK75BN).

As drawing.

Contractor's choice.

Hoppers

VATKL large water hopper, 75 mm (VATKL75BN).

VATKR regular water hopper, 75 mm (VATKR75BN).

As drawing.

Contractor's choice.

Diverters

FUTK adjustable diverter, 75 mm (FUTK75BN).

As drawing.

Contractor's choice.

Sliding pipe

PRT sliding pipe, 75 mm (PRT75BN).

As drawing.

Contractor's choice.

Brackets

SST spike for pipe bracket, 125 mm (SST125).

SST spike for pipe bracket, 175 mm (SST175).

SST spike for pipe bracket, 250 mm (SST250).

SST spike for pipe bracket, 300 mm (SST300).

SSVU universal pipe bracket, 75 mm (SSVU75BN).

Show more

Hose connector

As drawing.

Contractor's choice.

Vandal resistant fittings

Not required.

VSLS reinforced leaf trap, 102 mm (VSLS102BN).

VSLS09 reinforced pipe with leaf trap, 0.85 m, 102 mm (VSLS09102BN).

VSLS2 reinforced pipe with leaf trap, 2 m, 102 mm (VSLS2102BN).

VSLST2 reinforced pipe with raised leaf trap, 2 m, 102 mm (VSLST2102BN).

Show more

Bends

BK 45° conical pipe bend, 75 mm (BK4575BN).

BK 70° conical pipe bend, 75 mm (BK7075BN).

BM 45° pipe bend with socket, 75 mm (BM4575BN).

BM 70° pipe bend with socket, 75 mm (BM7075BN).

BM 85° pipe bend with socket, 75 mm (BM8575BN).

Environmental information

Recycled content

30

Manufactured from 30% recycled steel.
