Rail Headpiece for Paving System

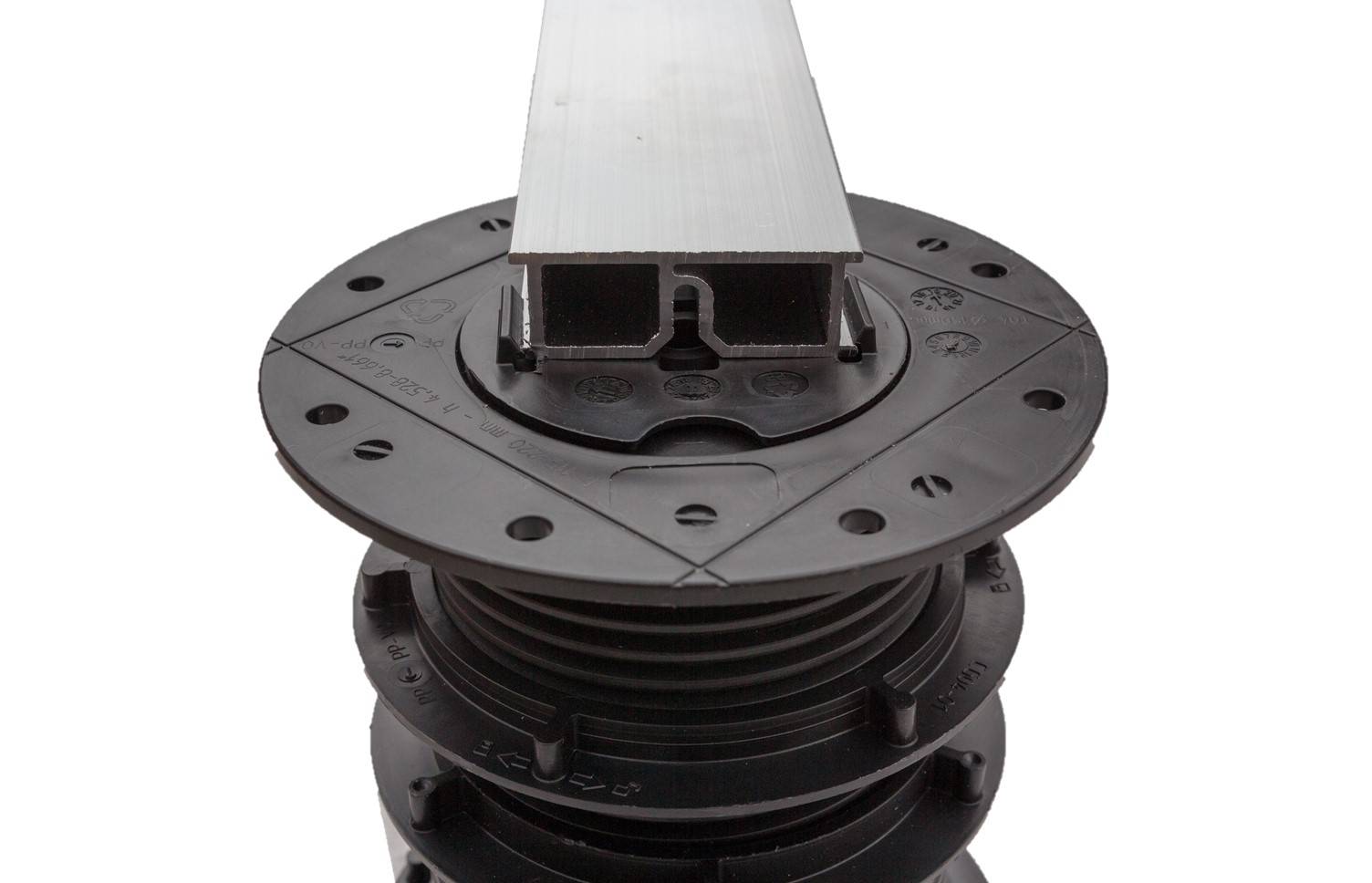

Additional Headpiece for use with aluminium rail system for tiling and paving applications only. Measuring 120 mm in diamater and made from injection moulded virgin fibre polypropylene headpiece with 4 postioning lugs on the upper side and integrated acoustic shim. Lugs measure 10 mm high x 2 mm wide. Clips are moulded onto the under side of the headpiece to click onto the upper shelves / lips of the alumnium rail. This gives a secure fitting but allows the headpiece to slide up and down the rail to achieve correct position of the tiles / slabs. Particularly suitable for porcelain tiles and thinner slabs which will require more support around the perimeter of the tiles and just pedestals in each corner.

General information


Easy installation, protects surface underneath, low height threshold, cost effective, high weight tolerance, clicks easily onto pedestal



Uniclass 2015

Pr_20_85_47_22 Decking and paving pedestalsPrimary
Digital objects
PlatformCompatibleVersionCertified to
- 1 2.1
- 1 2.1
