This product is no longer available

Application

  • Offices.
  • Hotels.
  • Meeting rooms.
  • Conference centres.
  • Music studios.
  • Music venues.
  • Leisure facilities.
  • Schools.
  • Restaurants.
  • Showrooms.
  • Prisons.

Description

Acoustic panels consist of a fabric covered, high density acoustic glass fibre. They are designed to reduce reverberant noise by improving acoustic absorption within the area being treated. When installed directly below the soffit they will also improve the thermal insulation of the building.

They are specifically designed to be suspended from the existing ceiling without interfering with existing services or light fittings. They are suspended using corkscrew hangers fixed directly into the rear of the panel allowing for suspension, with steel cables and all fixings supplied as standard.

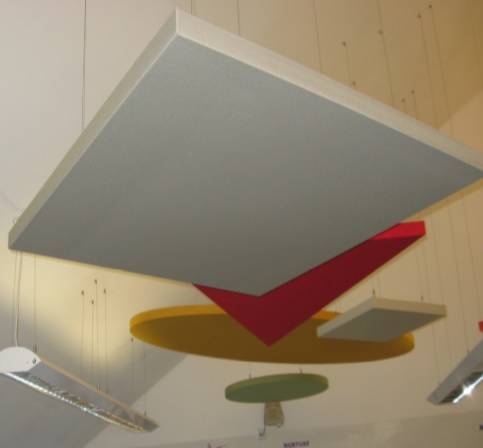

RaftPanels are extremely effective acoustically and offer an alternative and economical solution to a full suspended ceiling system. When hung from the soffit at different heights and alternating fabric colours, they can create a feature within the area being treated, enhancing the interior design.

Applications:

  • Offices.
  • Hotels.
  • Meeting rooms.
  • Conference centres.
  • Music studios.
  • Music venues.
  • Leisure facilities.
  • Schools.
  • Restaurants.
  • Showrooms.
  • Prisons.

General information
Material

Glass fibre

Uniclass 2015
Sound attenuator infill units (Pr_35_93_13_80)Primary
Specification data - Sound attenuator infill units
Product Reference

RaftPanel

Material

Glass fibre

Fabric/ Colour

Camira Cara

Open weave, 100% polypropylene. Available in 32 colours; insert requirements.

Camira Lucia

100% recycled polyester. Available in 31 colours; insert requirements.

Camira Blazer Lite

100% virgin new wool. Available in 31 colours; insert requirements.

Gabriel Event Screen+

100% polyester. Available in 26 colours; insert requirements.

Gabriel Hush

80% polyester, 20% viscose. Available in 20 colours; insert requirements.

Gabriel Soul Melange

84% wool, 16% polyester. Available in 37 colours; insert requirements.

Spray painted, RAL

Insert requirement.

Other

Contact manufacturer for information and insert requirement.

Standard product features

Thickness:

40 mm.

Thermal conductivity:

0.035 W/m·K (at 10°C).

Operating temperature:

Suitable for use at normal building temperatures.

Sound absorber class (to BS EN ISO 11654):

A.

Sound absorption coefficient:

125 Hz: 0.6: 250 Hz: 0.89; 500 Hz, 1000 Hz, 2000 Hz and 4000 Hz: 1.0; aw: 1.0; NRC: 0.97.

Product Options

Fabric/ Colour:

  • Seven acoustically transparent fabric ranges are available, each with a different surface texture and a wide choice of colours.
  • RaftPanels can also be spray painted to match any RAL colour.
  • Contact manufacturer for information and colour options.

Fire performance:

  • Fabric covered: RaftPanels are covered with selection of fabrics which meet the requirements of BS 476-7 Class 1 surface spread of flame. Screen fabrics can be chemically treated to provide a Class 0 fire rating.
  • Spray painted: No fire rating.
