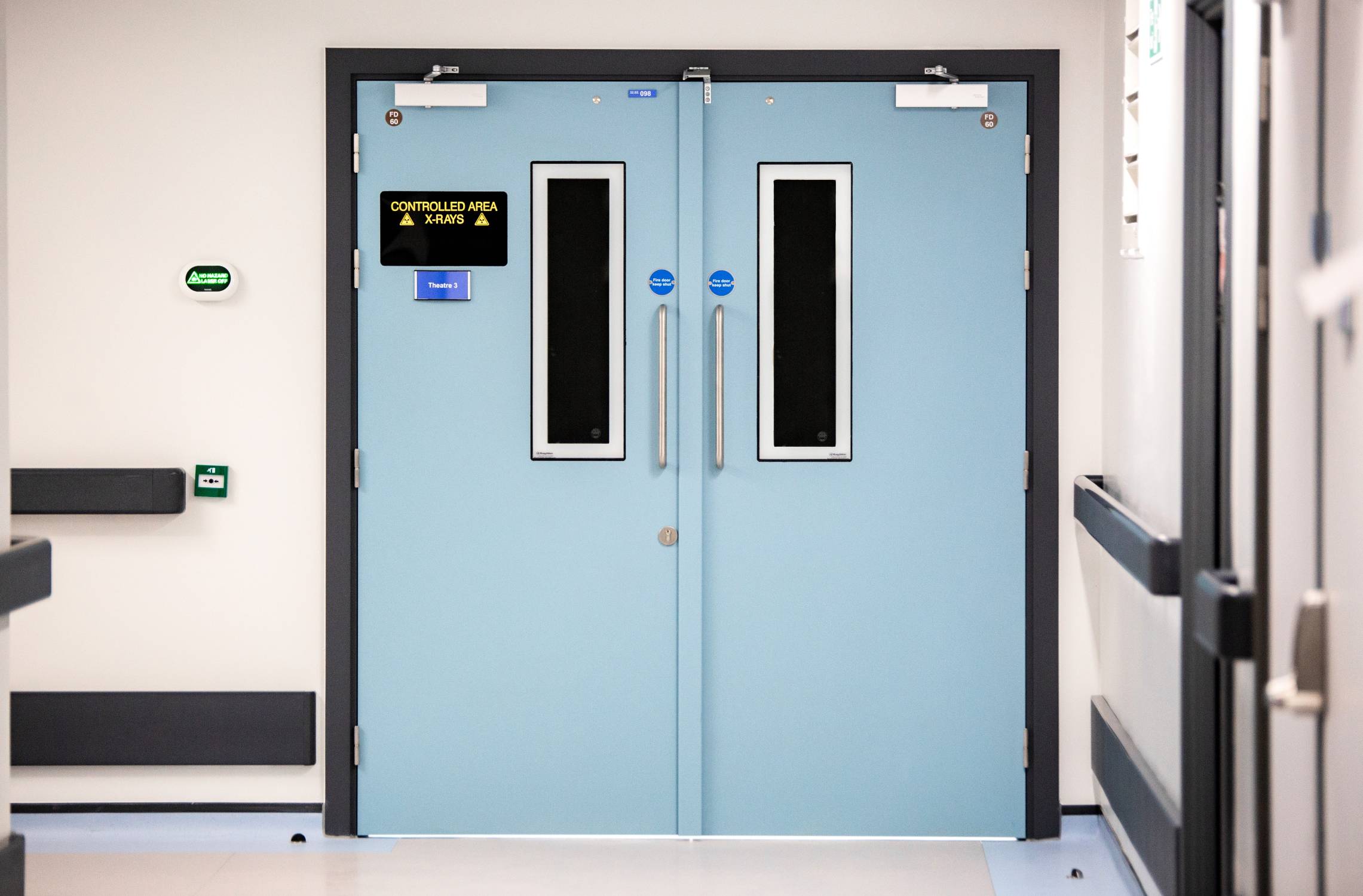

Radiation Protective Lead-Lined Door Set: Double
Verified by manufacturer 4 months ago
Raybloc's Lead-Lined X-Ray Door offers scatterproof radiation shielding, ensuring safety in medical and industrial settings, with durability and precision engineering.
Application
Raybloc's lead lined doors are suitable for controlled areas in various industries, including medical facilities, research laboratories, nuclear power plants, and industrial testing facilities. Wherever radiation protection is critical, our X-Ray door offers peace of mind and optimal safety.
Description
A doorset solution for radiation protection in critical environments, providing an aesthetic look and finish. Crafted with precision in-house manufacturing methods with over 30 years of experience, the lead-lined X-Ray Door combines innovative design and advanced radiation shielding technology to deliver exceptional performance, ensuring radiation protection to the highest quality.
Designed for maximum functionality and durability, the X-Ray Door withstands rigorous conditions with its sturdy core and robust construction. It offers unparalleled structural integrity, ensuring reliable performance even in high-risk radiation environments. Its bespoke lead lining effectively absorbs and attenuates harmful radiation, safeguarding individuals and ensuring facility integrity.
Seamless integration is paramount, and can be customized to match specific dimensions and aesthetic requirements. Whether it's for a radiology department, dental or veterinary practice, research laboratory, or industrial setting, the doorset provides a perfect fit, while maintaining a consistent design aesthetic.
Safety is a high priority, with optional features like lead-lined vision panels, fire-rated protection, various additional ironmongery, and customizable flush-mounted eye-level warning lights. These enhancements provide comprehensive protection and a secure working environment.
Raybloc's commitment to quality is evident through rigorous testing and compliance with industry regulations. Our lead-lined X-Ray Doorset exceeds expectations in performance, reliability, and longevity. When it comes to radiation protection, trust Raybloc. Our Radiation Protective Lead-Lined Doorset is the embodiment of our expertise and dedication to safety.
Features and benefits:
- Bespoke to fit any structural opening.
- Custom-sized vision panels.
- Customizable flush-mounted warning light (eye level).
- Standard lead equivalence from 1.32 mmPb (Code 3) to 20 mmPb.
- Additional ironmongery such as door closers, kick-plates and more.
- Fire resistant for up to one hour.
- 10-year material and workmanship warranty.
- All timber products purchased and used by Raybloc (X-ray Protection) Ltd are FSC certified for sustainability.
- Manufactured in the United Kingdom.
General information
Color | Blue White Grey Green Other |
Finish | Painted Laminated Veneered |
Material | Wood Lead PVC |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets L20/410 Wood doorsets |
Specification data - Wood doorsets
Configuration | Double-leaf. |
Doorset size | Manufacturer guidanceAs required to suit the requested structural opening. |
Performance | |
Fire resistance | |
Integrity | Non-fire rated.FD30.FD60. |
Insulation | Non-fire rated.FD30.FD60. |
Strength and durability | Mechanical / Severe Duty Rating – exceeding the minimum requirements of DD171 and BS EN 1192 for 'Severe Duty' performances. |
Intruder resistance | |
Minimum requirement | Door cores have been tested to PAS 23–1 and PAS 24–1 general performance and enhanced security performance requirements. |
Frame | |
Material | Hardwood. |
Species | Beech.Maple.Oak.SapeleWalnut. |
Finish | Beech.Maple.Oak.PVC Encapsulated.Primer Painted.Sapele.Walnut. |
Frame accessories | Meeting stile: Lead-lined rebate.Guidance for specification option: Available in all finishes, consult manufacturer for details and insert requirements. |
Door leaf | |
Thickness | 44 mm.54 mm. |
Core | FLAMEBREAK FF630 - 44 mm solid core with 6 mm MDF face, lead-lined.FLAMEBREAK FF660 - 54 mm solid core with 6 mm MDF face, lead-lined. |
Panel details | Half-height PVC face.Full-height PVC edge (vertical edges).Half-height PVC frame. |
Lippings | 5 mm hardwood. |
Perimeter seals | Smoke/ acoustic. |
Glazing | |
Type | Radiation protective lead glass (to suit lead equivalence of door).Guidance for specification option: Custom size as requested. (Standard Sizes 300 x 300mm Square, 250 x 750mm Rectangle). |
Manifestation | Standard.LCD switchable glass. |
Beading | |
Type | Lead-lined hardwood beading.Flush-fitted. |
Material | Hardwood. |
Door accessories | Interstitial blinds.Laser blackout interstitial blinds. |
Hardware | Dormakaba TS 93.Fire Disks.Flush Bolts.GEZE TS4000E.GEZE TS4000S.H101 Royde &Tucker hi-load lift off hinges- stainless steel.Handles.Kick Plates. |
Architraves | |
Material | Hardwood - lead lined to the controlled area side, 70 x 15 mm (5 mm chamfer to the internal edge).MDF - lead lined to the controlled area side, 70 x 15 mm (5 mm chamfer to the internal edge). |
Finish | Beech.Maple.Oak.SapeleWalnut.Primer. |
Lead lining thickness | Manufacturer guidance1.32 mm Pb (code 3) to 20 mm Pb to suit specified requirements of the RPA report. Insert requirements. |
Profile | Standard profile: 65 mm x wall thickness. |
Rebate size | 50–75 x 25 mm. |
Sustainability data
Contains Red List materials | Yes Guidance for specification option: Lead |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
