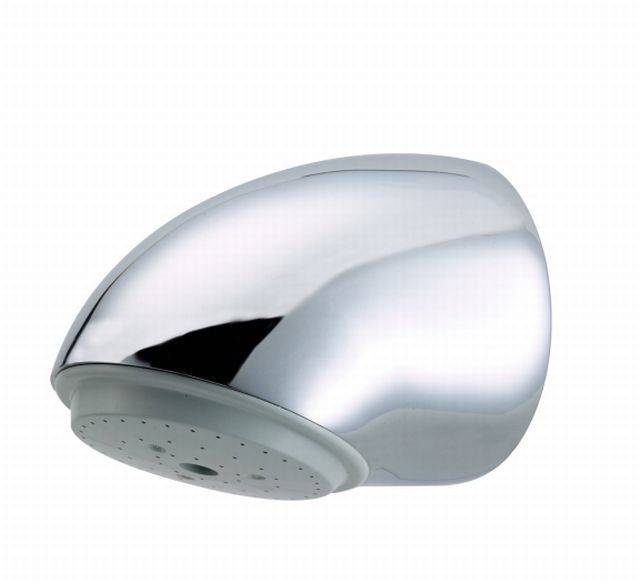

Rada VR105


Vandal resistant shower fitting for connection to concealed pipe work with fixed spray plate and 9 L/minute flow regulator.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

Vandal resistant shower fitting for connection to concealed pipework with fixed spray plate and 9 L/ min flow regulator.

General information



Vandal resistant


Brass with polished chrome finish spray body, brass mounting bush/Inlet nipple, engineered plastic flow regulator, stainless steel strainer


One year parts and labour

Uniclass 2015
Pr_40_20_87_76 Shower headsPrimary
Specification data - Shower heads
Product Reference

Rada VR105 Vandal Resistant Shower Fitting (


Not required

300R Adjustable Spray Cartridge,

310R Hard Water Spray Cartridge,

400R High Performance Spray Cartridge,

AD35 Extended Connection Nipple, 5.555.74.2.0

VR Security Kit, 5.936.94.1.0

Standard product features


  • Durable polished chrome finish.
  • Optional security plate for increased vandal resistance.
  • ½” BSP male nipple connection.
  • Fitted with single spray pattern plate with adjustable angle of discharge.
  • Fitted with 9 litres/ minute flow regulator (6 litre regulator available).


  • ½” BSP parallel nipple for connection to concealed pipework.


  • Water Regulations Advisory Scheme (WRAS) Approved.
  • Designed, manufactured and supported in accordance with accredited BS EN ISO 9001 and BS EN ISO 14001.


  • Spray body: Brass, polished chrome finish.
  • Mounting bush/ inlet nipple: Brass.
  • Spray cartridges: Engineering plastic.
  • Flow Regulator: Engineering plastic.
  • Strainer: Stainless steel.
  • VRsecurity plate: Plated mild steel.
  • All screws in contact with water are stainless steel.

Temperature Range:

  • Designed to accept water supplied between 5–65°C.

Pressure Range:

  • Recommended minimum maintained pressure at the inlet of the fitting: 0.1 bar.
  • Maximum maintained pressure at the inlet of the fitting: 5.0 bar.

Spray Performance:

  • Minimum flow rate necessary to achieve a fully formed spray pattern: 6 litres/ min.

Product Options


300R Adjustable Spray Cartridge (

  • With ‘Start’, ‘Active’ and ‘Relax’ modes (chrome finish).

310R Hard Water Spray Cartridge (

  • Self-draining with ‘push-clean’ action (chrome finish).

400R High Performance Spray Cartridge (

  • With ‘Start’, ‘Pulsate’ and ‘Champagne’ modes (white finish). Minimum pressure 0.5 bar. Requires removal of the flow regulator.

VR Security Kit (5.936.94.1.0).

  • Concealed mounting plate offering even greater security, for use with VR105/VR115.

AD35 Extended Connection Nipple (5.555.74.2.0).

  • 250 mm x ½” BSP parallel nipple to BS 2779.

For ‘high risk’ applications the 300r, 310r and 400r spray cartridges are not recommended as the cartridges may be removed without the use of tools.
