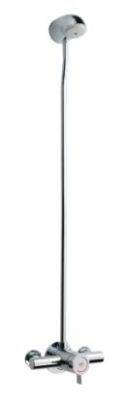

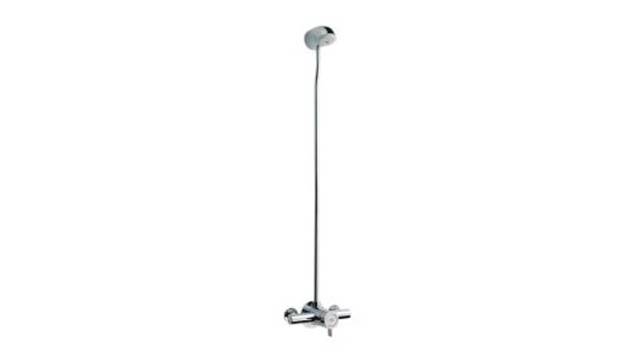

TMV2 approved exposed, single sequential thermostatic shower valve suitable for commercial and semi-domestic applications, supplied with VR145 vandal resistant shower head and rigid riser.
Surface mounted, single sequential thermostatic shower valve with VR145 vandal resistant shower head and rigid riser pipe. Supplied complete with adjustable elbow kit, flow regulators and integral strainers.
Adjustable inlet fixing centres for easy replacement of most existing installations; Sequential operation from off - cold - warm; Easy grip handle complete with durable, clear graphics; Robust construction to withstand heavy usage in public areas; Optional 6 L/min flow regulator for increased water saving. A 9 L/min flow regulator is also supplied
Body: Chrome Plated DZR Brass, Lever: Chrome Plated Zinc Die Casting, Riser: Polished Stainless Steel, Showerhead Body: Polished Chrome Plated Brass, Spray Plate: Engineering Plastic
Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only
N13/375 Shower units
N13/40 Shower units
S90/67 Thermostatic mixing valves
S90/680 Thermostatic mixing valves
Rada V10 Contract Pack (1.1651.008)
|Standard product features|
The Rada V10 is operated via a single sequential control which when rotated initially opens the valve, then increases temperature from cold to a pre-set maximum.
Note: In the event of loss of either supply, the valve will automatically shut off. Minimum temperature of the blend to either supply is 12˚C.For reasons of general safety, hot water storage temperatures should be maintained at between 60–65˚C where serving ablutionary applications. The mixing valve can accept temporary excursions above 85˚C without damage, however operation at such elevated temperatures is not recommended.
Pressure/ Flow Rates:
Dynamic Supply Pressure (Running):
