Rada TL 100

Rada TL 100

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Rada

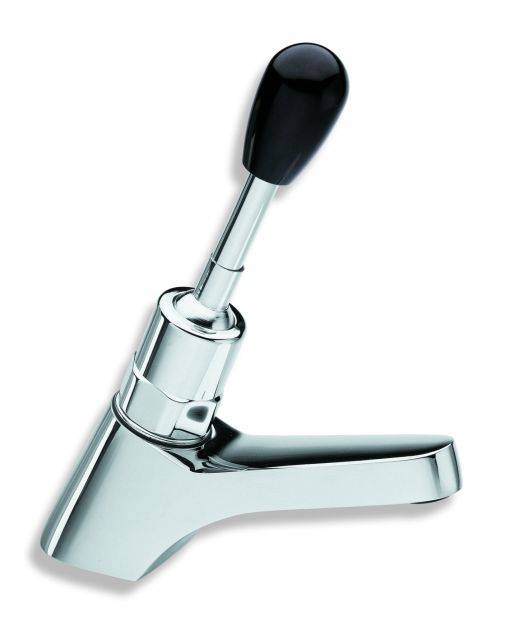

Lever operated basin mounted tap for use on basins or counter tops.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

A non-concussive, timed flow lever operated tap with vandal resistant non-removable flow straightener and flow adjustment. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.

Features:

  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow.
  • Lever control.
  • Non-concussive action.
  • Robust design.

General information

Features

Vandal resistant non-removable flow straightener, one piece cartridge, 5 flow settings

Finish

Chrome

Size

0.0

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015

Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

Specification data - Washbasin thermostatic water supply sets

Product Reference

Rada TL 100 Lever Operated Timed Flow Tap (2.1762.085)

Standard product features

Material:

Body: Chrome plated brass.

Connection:

  • Inlet: ½” BSP male parallel thread.
  • Outlet: 15 mm compression fitting.

Pressures:

  • Operational pressure (minimum/ maximum): 0.2/ 5 bar.
  • Static pressure (maximum): 10 bar.

Temperature range:

80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.

Time flow cartridge:

Factory set in the mid-restriction position.

Digital objects
PlatformCompatibleVersionCertified to
AECOsim
- 1.0
Revit
Revit 2016 4 1.3
IFC
- 5 1.3
Download now from NBS National BIM Library
Literature
Third party certifications
  • Water Regulations Advisory Scheme (WRAS) approved
