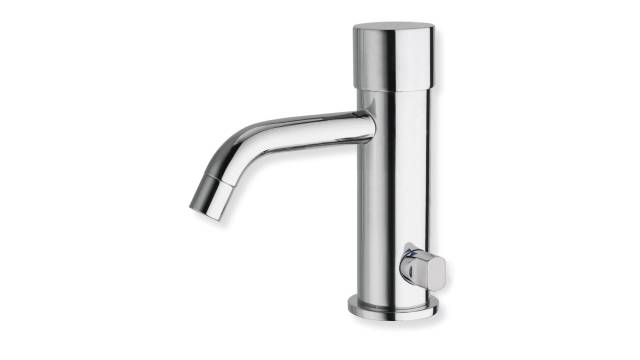

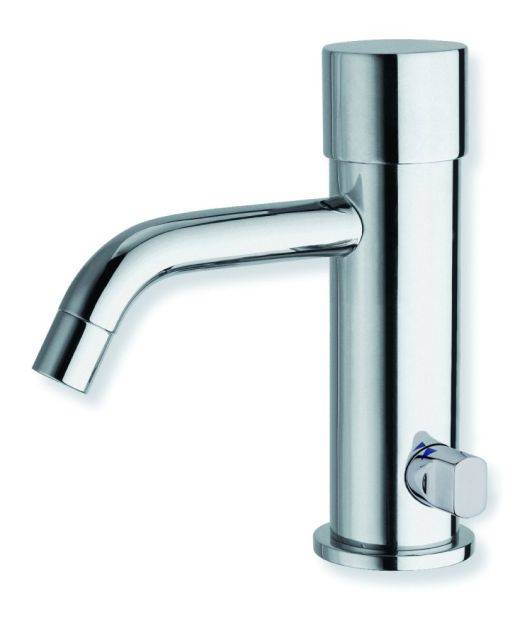

Rada T4 125 Timed Flow Mixer Tap

Rada T4 125 Timed Flow Mixer Tap

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Rada

Contemporary deck/basin mounted push button tap with adjustable flow rate and duration (5 - 20 seconds) for use on basins or counter tops.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

A non-concussive, timed flow basin mounted mixer tap with separate temperature control and time and flow adjustment. The tap can be adjusted to give flow duration of 5–20 seconds when the button is pressed and released and the volume of flow can also be adjusted.

Features:

  • Contemporary design.
  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow and time.
  • Non-concussive action.

General information
Color

Chrome

Features

Contemporary design; Energy and water saving - adjustable flow and adjustable time; Easy servicing - one piece cartridge; Non-concussive action; Fits standard washbasin and tap holes

Finish

Polished

Material

Body: Chrome plated brass, Push Button: Chrome plated brass

Size

12.7

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015
Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
CAWS

N13/335 Washbasins

N13/30 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

Specification data - Washbasin thermostatic water supply sets
Product Reference

Rada T4 125 Timed Flow Mixer Tap (2.1762.079)

Standard product features

Material:

Body and push button: Chrome plated brass.

Connection:

Inlet: ¾” BSP female union nuts at the end of the flexible tails with ⅜” x ½” male compression adaptor supplied.

Pressures:

  • Operational pressure (minimum/ maximum): 1/ 5 bar.
  • Static pressure (maximum): 10 bar.

Temperature range:

80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 1.3
IFC
- 1 1.3
Download now from NBS National BIM Library
Literature
Third party certifications
  • Water Regulations Advisory Scheme (WRAS) approved
