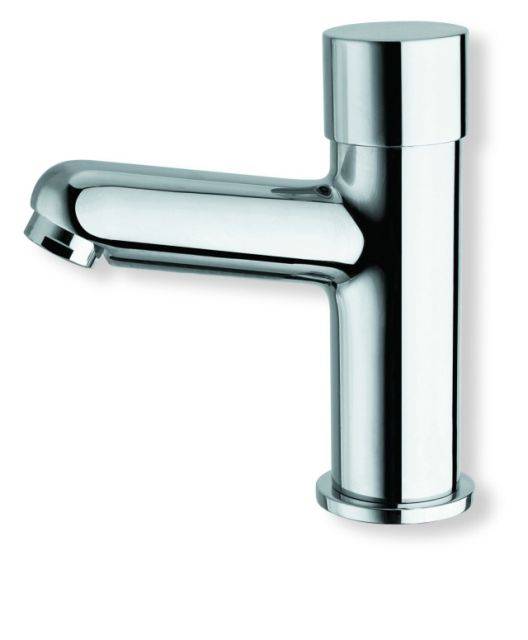

Rada T4 100 Timed Flow Pillar Tap

Rada T4 100 Timed Flow Pillar Tap

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

A non-concussive timed flow basin mounted tap.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

Description

A non-concussive timed flow basin mounted tap with time and flow adjustment. The tap can be adjusted to give flow duration of 5–20 seconds when the button is pressed and released and the volume of flow can also be adjusted.

Features:

  • Contemporary design.
  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow and time.
  • Non-concussive action.

General information

Features

Contemporary design

Easy servicing - one piece cartridge

Energy and water saving - adjustable flow and time

Non-concussive action

Material

Body and push button: Chrome plated brass

Uniclass 2015

Pr_40_20_87_99 Washbasin thermostatic water supply sets

Primary

CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

Specification data - Washbasin thermostatic water supply sets

Product Reference

Rada T4 100 Timed Flow Pillar Tap Cold (2.1762.081)

Rada T4 100 Timed Flow Pillar Tap Hot (2.1762.080)

Standard product features

Material:

Body and push button: Chrome plated brass.

Connection:

Inlet: ½” BSP male parallel thread (to BS 2779), suitable for standard end feed tap connector.

Pressures:

  • Operational pressure (minimum/ maximum): 1/ 5 bar.
  • Static pressure (maximum): 10 bar.

Temperature range:

80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.

Literature

Third party certifications

  • Water Regulations Advisory Scheme (WRAS) approved
