Rada T2 320 Timed Flow Shower Control

Rada T2 320 Timed Flow Shower Control

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Rada

Surface mount rear fed, chrome finish, push button shower control with 30 (±10) seconds time flow.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

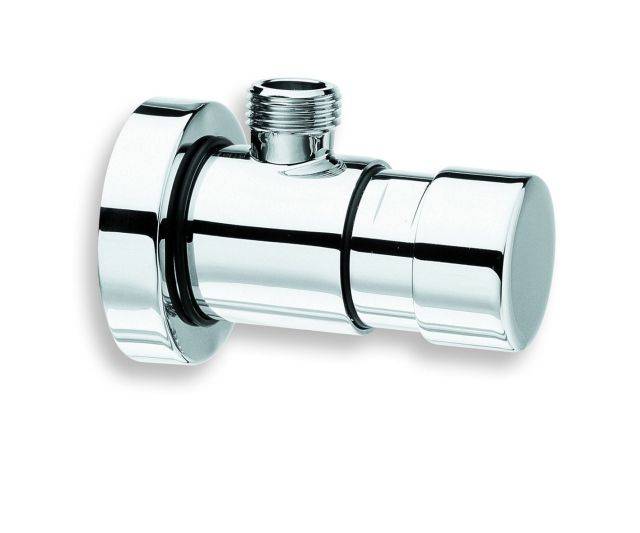

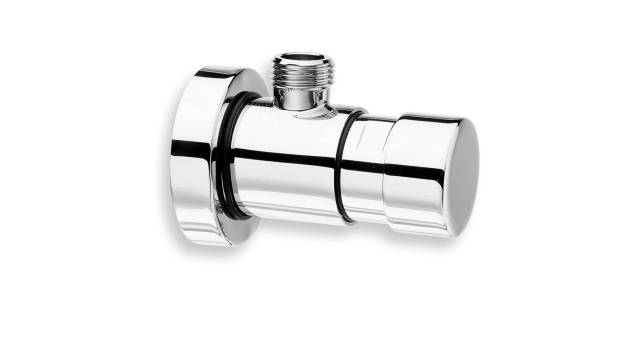

A ½" exposed push button flow control for use with rear fed concealed supply, incorporating a one piece cartridge for easy maintenance and adjustable flow. The shower controls are designed to give approximately 30 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of seven flow settings to give the most economical flow rate over the pressure range available.

Features:

  • Contemporary yet robust design.
  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow.
  • Non-concussive action.

General information
Color

Chrome

Finish

Chrome

Material

Body: Chrome plated brass, Push Button: Chrome plated brass

Size

15

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015
Pr_40_20_87_81 Shower thermostatic water supply setsPrimary
CAWS

N13/375 Shower units

N13/40 Shower units

Specification data - Shower thermostatic water supply sets
Product Reference

Rada T2 320 Timed Flow Shower Control (2.1762.062)

Standard product features

Material:

Body and push button Chrome plated brass.

Connection:

  • Inlet: ½” BSP male parallel thread fitting.
  • Outlet: 15 mm compression fitting.

Pressures:

  • Operational pressure (minimum/ maximum): 0.2/ 5 bar.
  • Static pressure (maximum): 10 bar.

Time flow cartridge:

Factory set in the minimum flow restriction position.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 1.3
IFC
- 1 1.3
Download now from NBS National BIM Library
Literature
Third party certifications
  • Water Regulations Advisory Scheme (WRAS) approved
