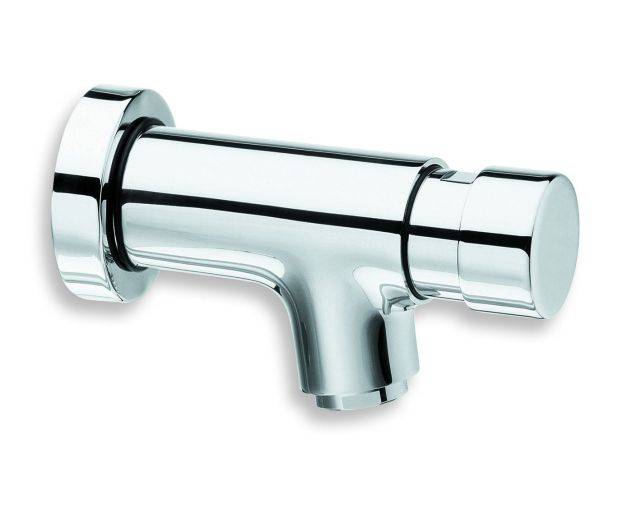

A non-concussive timed flow bib tap.
A non-concussive timed flow bib tap with flow adjustment. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.
Contemporary yet robust design
Easy servicing - one piece cartridge
Energy and water saving - adjustable flow
Body and push button: Chrome plated brass
Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
N13/341 Vanity tops with formed washbasins
N13/346 Washing troughs
Rada T2 140 Timed Flow BIB Tap Cold (2.1762.067)
Rada T2 140 Timed Flow BIB Tap Hot (2.1762.066)
Standard product features
Body and push button: Chrome plated brass.
Inlet: ½” BSP male parallel thread (to BS 2779).
80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.
Time flow cartridge:
Factory set in the mid-restriction position.
