Wall mounted push button flow control tap with 12 (±3) seconds time flow.
A non-concussive timed flow bib tap with vandal resistant non-removable flow straightener and adjustable flow. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.
Robust design; Vandal resistant control knob; Vandal resistant non-removable flow straightener; Energy and water saving - adjustable flow; Easy servicing - one piece cartridge; Non-concussive action; Red or blue temperature indicator included
Body: Chrome plated brass, Push Button: Chrome plated brass
Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only
Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
N13/341 Vanity tops with formed washbasins
N13/346 Washing troughs

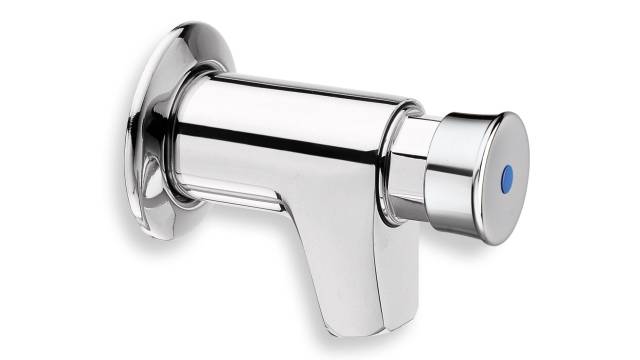

Rada T1 140 Timed Flow Bib Tap (2.1762.057)
Standard product features
Body and push button: Chrome plated brass.
Inlet: ½” BSP male parallel thread (to BS 2779).
80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.
Time flow cartridge:
Factory set in the mid-restriction position.
