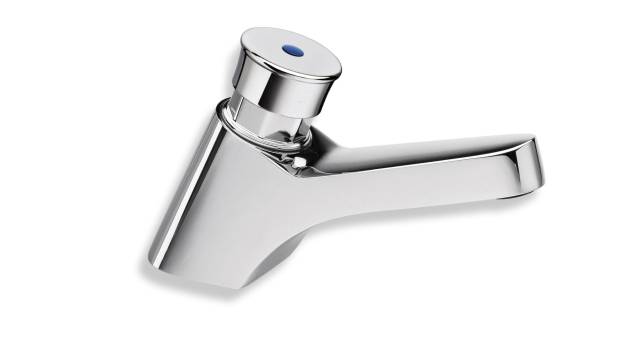

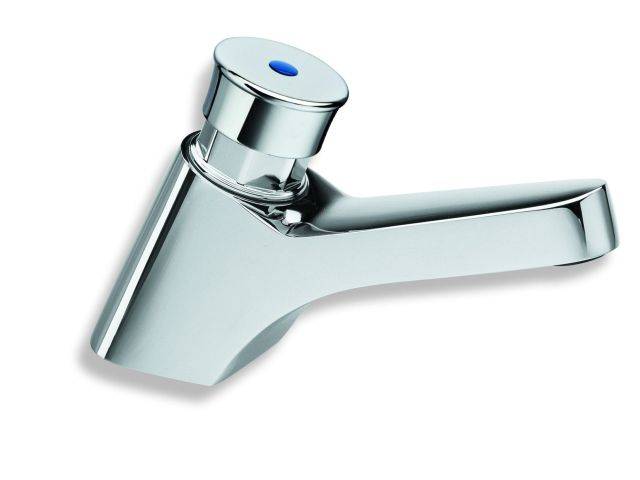

Rada T1 100 Timed Flow Pillar Tap

Rada T1 100 Timed Flow Pillar Tap

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Basin mounted push button tap with 12 (±3) seconds time flow for use on basins or counter tops.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

Description

A non-concussive timed flow basin mounted tap with vandal resistant non-removable flow straightener and flow adjustment. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.

Features:

  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow.
  • Non-concussive action.
  • Robust design.
  • Vandal resistant control knob.
  • Vandal resistant non-removable flow straightener.

General information

Color

Chrome

Features

Robust design; Vandal resistant control knob; Energy and water saving - adjustable flow; Easy servicing - one piece cartridge; Non-concussive action; Red or blue temperature indicator included

Finish

Polished

Material

Body: Chrome plated brass, Push Button: Chrome plated brass

Size

12.7

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015

Pr_40_20_87_99 Washbasin thermostatic water supply sets

Primary

CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

Specification data - Washbasin thermostatic water supply sets

Product Reference

Rada T1 100 Timed Flow Pillar Tap (2.1762.056)

Standard product features

Material:

Body and push button: Chrome plated brass.

Connection:

Inlet: ½” BSP male parallel thread (to BS 2779), suitable for standard end feed tap connector.

Pressures:

  • Operational pressure (minimum/ maximum): 0.2/ 5 bar.
  • Static pressure (maximum): 10 bar.

Temperature range:

80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.

Time flow cartridge:

Factory set in the mid-restriction position.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
IFC
-

1

1.3
Download now from NBS National BIM Library

Literature

Rada Outlook - Ultimate Washroom Control Technology

Rada Outlook - Ultimate Washroom Control Technology

Third party certifications

  • Water Regulations Advisory Scheme (WRAS) approved
