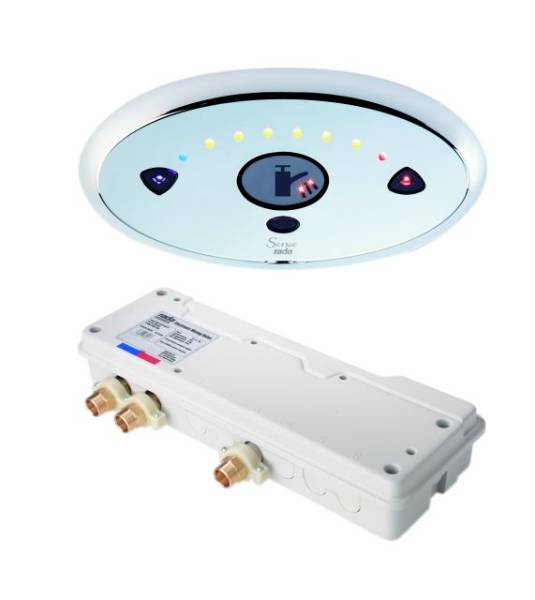

Rada Sense - Washbasin T3

Verified by manufacturer 7 months ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

Concealed digital mixing valve.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For washbasins.

Description

A concealed digital mixing valve supplied complete with programmable software, power supply, check valves and strainers.


Features and benefits:

  • No-touch on/off and temperature control.
  • Programmable flow times and temperatures.
  • Programmable ‘duty flushing.
  • Thermal disinfection with data logging.
  • Valve information and usage data.
  • Incorporates T-logic™ digital intelligence.
  • A Pocket PC is required to adjust factory settings, retrieve data, configure duty flush and disinfection cycles. The programmer software supplied is designed to run on Microsoft Pocket PC 2002 and Microsoft Windows Mobile (for pocket PC's).

General information

Color

Silver

Chrome control panel cover.

Finish

Chrome

Control panel cover

Material

Brass

(DZR) Integral components

WarrantyDescription

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_65_54_95_88 Thermostatic mixing valvesPrimary

Product range

Sports and Leisure
Healthcare
Education
Secure
Student Accommodation
Washrooms

Specification data - Thermostatic mixing valves

Load (maximum)

20 W at 12 V d.c.

NominalSupplyVoltage

100–240 V RMS 50–60 Hz.

Ingress protection (IP) rating

IP47, IP24, IP45.

Control panel: IP47; Overall valve enclosure: IP24; Electronics compartment: IP45; PSU: IP45.

RelativeHumidity

95% non-condensing.

Maximum

Ambient temperature

1–40°C.

Maximum temperature

65ºC.

85ºC during disinfection

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2015

3

AECOsim
-

1

IFC

IFC2X3

3

Literature

Rada Healthcare Product Selector

Rada Healthcare Product Selector

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls

Third party certifications

  • BEAB approved
  • BS 7942 : For high and low pressure wash basins
  • BS EN 1111
  • BS EN 1287
  • Buildcert: Certificate - BC 100/0205 : Buildcert TMV3 Thermostatic Mixing Valve Scheme approved
  • Buildcert: Certificate - BC 101/0205 : Buildcert TMV2 Thermostatic Mixing Valve Scheme approved
  • Designed to IEC 61508
  • Water Regulations Advisory Scheme (WRAS) approved
