Rada Sense - Washbasin T3

Rada Sense - Washbasin T3

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

Rada

Concealed digital mixing valve for washbasin.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

A digital mixing valve offering programmable, maximum, minimum and default temperatures, duty flush and thermal disinfection with data logging capabilities.

General information
Finish

Chrome

Size

0.0

Features

ƒNo-touch on/off and temperature control, programmable flow times and temperatures, programmable ‘duty flushing’, ƒƒthermal disinfection with data logging, ƒƒvalve information and usage data, ƒƒincorporates T-logic™ digital intelligence

Uniclass 2015
Pr_65_54_95_88 Thermostatic mixing valvesPrimary
CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

Specification data - Thermostatic mixing valves
Product Reference

Rada Washbasin T3 (1.1503.678)

Rada Washbasin Kit T3 (1.1503.702)

Standard product features

Washbasin T3:

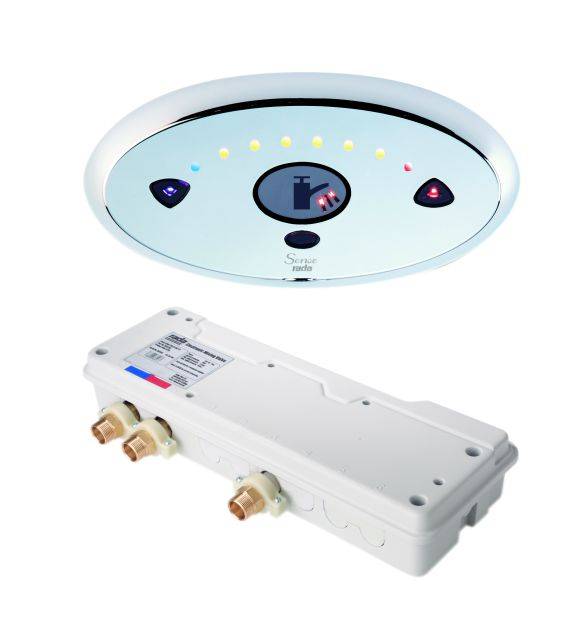

A concealed digital mixing valve for washbasins, supplied complete with programmable software, power supply, check valves and strainers.

The system incorporates a wall mounted control panel offering infra-red 'no-touch' controls for flow and temperature adjustment and programmable timed flow control.

Washbasin Kit T3:

Specification as above but with wall mounted spout with 150 mm throw, supplied with a 5 litres/minute flow regulator.

Operation:

  • Temperature selector: Full 'no-touch' temperature control.
  • Flow control: No-touch on/off.

A Pocket PC is required to adjust factory settings, retrieve data, configure duty flush and disinfection cycles. The programmer software supplied is designed to run on Microsoft Pocket PC 2002 and Microsoft Windows Mobile (for pocket PC's).

Materials:

  • Control panel cover: Chrome plated ABS.
  • Mixing unit enclosure: PC/ABS.
  • Integral components: DZR brass, stainless steel and engineering plastic.

Temperature Range

  • Factory pre-set minimum temperature: 30ºC.
  • Factory pre-set maximum temperature: 41ºC.
  • Default temperature: 38ºC.
  • Minimum blend temperature differential from hot supply: 2ºC.
  • Optimum thermostatic control range: 30ºC to 50ºC.
  • Cold water range: 1ºC to 20ºC.
  • Hot water range: 50ºC to 65ºC (85ºC during disinfection).

Programmable Temperature Range

  • Minimum temperature: 30ºC to 47ºC.
  • Maximum temperature: 33ºC to 50ºC.
  • Default temperature: 30ºC to 50ºC.

Pressure:

  • Maximum static pressure: 10 bar.
  • Minimum pressure loss: 0.2 bar.
  • Hot and cold pressure should be nominally equal. (Maximum differential either way 3:1).

Flow rate:

  • Minimum flow rate: <5 bar: maintained pressure 4 litres/minute.
  • >5 bar: maintained pressure 6 litres/minute.

Environment:

  • Ambient temperature: 1°C to 40°C.
  • Maximum relative humidity: 95% non-condensing.

IP rating:

  • Control panel: IP47.
  • Overall valve enclosure: IP24.
  • Electronics compartment: IP45.
  • PSU: IP45.

Electrical:

  • Supply voltage: 100-240V RMS 50-60Hz
  • Maximum load: 20W at 12V DC.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2015 3 1.3
AECOsim
- 1.0
Download now from NBS National BIM Library
Literature
Third party certifications
  • BEAB approved
  • BS 7942 : For high and low pressure wash basins
  • BS EN 1111
  • BS EN 1287
  • Buildcert: Certificate - BC 100/0205 : Buildcert TMV3 Thermostatic Mixing Valve Scheme approved
  • Buildcert: Certificate - BC 101/0205 : Buildcert TMV2 Thermostatic Mixing Valve Scheme approved
  • Designed to IEC 61508
  • Water Regulations Advisory Scheme (WRAS) approved
