Rada Sense - Washbasin Kit T3
NBS BIM object standard Verified by manufacturer 4 months ago
QA Certificate
Certificate type
BSI Kitemark
Certificate type

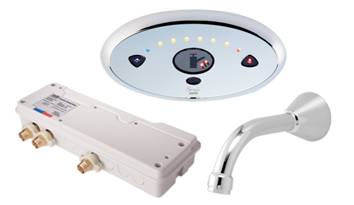

Concealed digital mixing valve with wall-mounted spout and throw.
Application
For washbasins.
Description
A digital mixing valve with wall mounted spout and 150 mm throw, supplied with a 5 litres/ minute flow regulator.
Features and benefits:
- supplied complete with programmable software, power supply, check valves and strainers.
- No-touch on/ off and temperature control.
- Programmable flow times and temperatures.
- Programmable 'duty flushing'.
- Thermal disinfection with data logging.
- Valve information and usage data.
- Incorporates T-logic™ digital intelligence.
- A Pocket PC is required to adjust factory settings, retrieve data, configure duty flush and disinfection cycles. The programmer software supplied is designed to run on Microsoft Pocket PC 2002 and Microsoft Windows Mobile (for pocket PC's).
General information
Color | Silver Chrome control panel cover. |
Finish | Control panel cover |
Material | Brass (DZR) Integral components Acrylonitrile butadiene styrene (ABS) Control panel cover and Mixing unit enclosure |
WarrantyDescriptionTwo-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only. | - |
Uniclass |
Product range |
Specification data - Thermostatic mixing valves
Load (maximum) | 20 W at 12 V d.c. |
NominalSupplyVoltage | 100–240 V RMS 50–60Hz. |
Ingress protection (IP) rating | IP47, IP24, IP45. Control panel: IP47; Overall valve enclosure: IP24; Electronics compartment: IP45; PSU: IP45. |
RelativeHumidity | 95% non-condensing. maximum |
Ambient temperature | 1–40°C. |
Maximum temperature | 65ºC. 85ºC during disinfection |
Environmental information
Country of product manufacture | United Kingdom |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 AECOsim | - | 1.0 | 1.0 |
 IFC | - | 1 | 1.3 |
 Revit | Revit 2016 | 1 | 1.3 |
Literature
Rada Healthcare Product Selector
Rada Product Selector - Commercial Washroom Controls
Third party certifications
- BEAB approved
- BS 7942 : For high and low pressure wash basins
- BS EN 1111
- BS EN 1287
- Buildcert: Certificate - BC 100/0205 : Buildcert TMV3 Thermostatic Mixing Valve Scheme approved
- Buildcert: Certificate - BC 101/0205 : Buildcert TMV2 Thermostatic Mixing Valve Scheme approved
- Designed to IEC 61508
- Water Regulations Advisory Scheme (WRAS) approved
