Rada Sense - Bath Shower T3

Third party certifications:

QA Certificate
Certificate type
BSI Kitemark
Certificate type

Concealed digital mixing valve for bath/shower.

Jump to:

Description

A digital mixing valve offering programmable, maximum, minimum and default temperatures, duty flush and thermal disinfection with data logging capabilities.

General information

Finish	Chrome
Size	19
Features	ƒNo-touch on/off and temperature control, programmable flow times and temperatures, programmable ‘duty flushing’, ƒƒthermal disinfection with data logging, valve information and usage data, ƒƒincorporates T-logic™ digital intelligence
WarrantyDescription	Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only
Uniclass 2015	Pr_65_54_95_88 Thermostatic mixing valvesPrimary

Specification data - Thermostatic mixing valves

Product Reference	Rada Bath-Shower T3 (1.1653.030)

Standard product features

Bath / Shower T3:

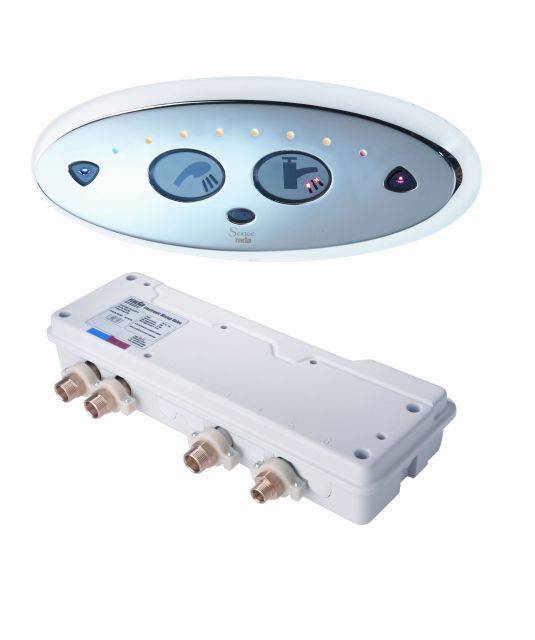

A concealed digital mixing valve for bath/shower applications, supplied complete with programmable software, power supply, check valves and strainers.
The system incorporates a wall mounted control panel offering infra-red 'no-touch' controls for flow and temperature adjustment and programmable timed flow control.
Operation:
Temperature selector: Full 'no-touch' temperature control.
Flow control: No-touch on/off.
A Pocket PC is required to adjust factory settings, retrieve data, configure duty flush and disinfection cycles. The programmer software supplied is designed to run on Microsoft Pocket PC 2002 and Microsoft Windows Mobile (for pocket PC's).
Materials:
Control panel cover: Chrome plated ABS.
Mixing unit enclosure: PC/ABS.
Integral components: DZR brass, stainless steel and engineering plastic.
Temperature range:
Factory pre-set bath minimum temperature: 30°C.
Factory pre-set bath maximum temperature: 44°C.
Default bath temperature: 40°C.
Factory pre-set shower minimum temperature: 30°C.
Factory pre-set shower maximum temperature: 41°C.
Default shower temperature: 38°C.
Minimum blend temperature differential from hot supply: 2°C.
Optimum thermostatic control range: 30°C to 50°C.
Cold water range: 1°C to 20°C.
Hot water range: 50°C to 65°C (85°C during disinfection).
Programmable temperature range:
Minimum temperature: 30°C to 47°C.
Maximum temperature: 33°C to 50°C.
Default temperature: 30°C to 50°C.
Pressure:
Minimum static pressure: 10 bar.
Minimum pressure loss: 0.2 bar.
Hot and cold pressure should be nominally equal. (Maximum differential either way 3:1).
Flow rate:
Minimum flow rate: 9 litres/minute.
Environment:
Ambient temperature: 1°C to 40°C.
Maximum relative humidity: 95% non-condensing.
IP rating:
Control panel: IP47.
Overall valve enclosure: IP24.
Electronics compartment: IP45.
PSU: IP45.
Electrical:
Supply voltage: 100-240V RMS 50-60Hz.
Maximum load: 20W at 12V DC.

Digital objects

Platform	Compatible	Version	Certified to
AECOsim	-	1.0
Revit	Revit 2016	4	1.3
IFC	-	4	1.3

Download now from NBS National BIM Library

Literature

Rada Healthcare Product Selector

Third party certifications

BEAB approved
BS 7942 : For high and low pressure washbasins
BS EN 1111
BS EN 1287
Buildcert: Certificate - BC 100/0205 : Buildcert TMV3 Thermostatic Mixing Valve Scheme approved
Buildcert: Certificate - BC 101/0205 : Buildcert TMV2 Thermostatic Mixing Valve Scheme approved
Designed to IEC 61508
Water Regulations Advisory Scheme (WRAS) approved
