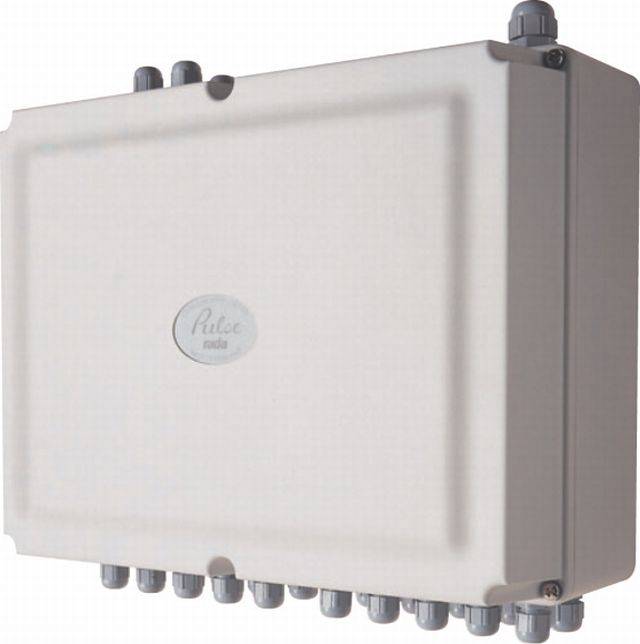

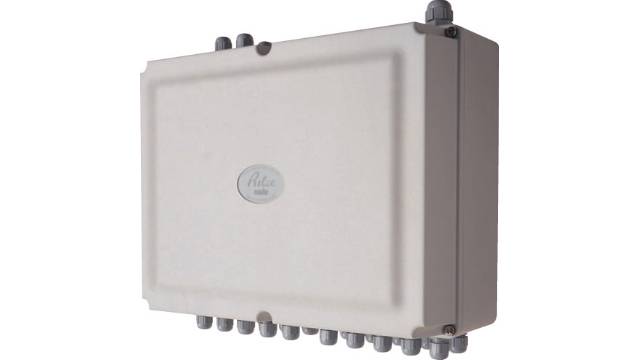

Rada Pulse Control Box

Rada Pulse Control Box

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Complete Washroom System Control Unit with integral 12V transformer capable of controlling up to 10 Rada Pulse operating systems.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

Description

A complete washroom system control unit equipped with a 12v transformer capable of controlling up to 10 Rada Pulse operating systems.

General information

Features

Provides central control for complete washroom system; Controls up to 10 individual showers, hand wash basins or urinals; Integral 12 volt transformer; Provides interface for auxiliary equipment e.g. pumps,, ventilation fans or light systems; Robust construction; Compatible with all Rada Pulse Operating systems, sensors and solenoids

Material

PC/ABS blended plastic

Shape

Circular

Size

300 x 117 x 230 mm

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

N13/375 Shower units

N13/40 Shower units

Specification data - Shower thermostatic water supply sets

Product Reference

Rada Pulse Control Box (2.1.093.79.3)

Accessories

Rada Pulse 120 Operating System

Rada Pulse 122 Operating System

Rada Pulse 124 Operating System

Rada Pulse 125 Operating System

Rada Pulse 126 Operating System

Rada Pulse 129 Operating System

Standard product features

The control box will enable the precise control of showering, hand washing and urinal flushing.

A single control box will control up to 10 outlets in any configuration.

Each outlet is operated via a no-touch sensor and a universal solenoid valve, ensuring maximum hygiene in the washroom.

In addition, the control box will also provide a signal for up to 3 auxiliary functions, fans, lights and pumps.

The system is programmed remotely with a hand held programmer.

The programmer is plugged into the control box then used to either set up or adjust the flow settings of individual outlets.

Materials:

  • Control box: PC/ABS blended plastic, fire retardant.
  • Programmer: Tough ABS plastic with a 3 m extendable coiled cable and pin plug attachment.

Accessories:

  • Rada Pulse hand held programmer.
  • Rada Pulse 120 Operating System
  • Rada Pulse 122 Operating System
  • Rada Pulse 124 Operating System
  • Rada Pulse 125 Operating System
  • Rada Pulse 126 Operating System
  • Rada Pulse 129 Operating System

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
Download now from NBS National BIM Library

Third party certifications

  • Complies with all relevant directives for CE marking
