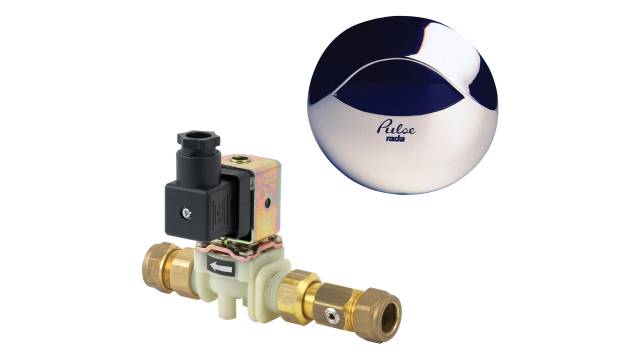

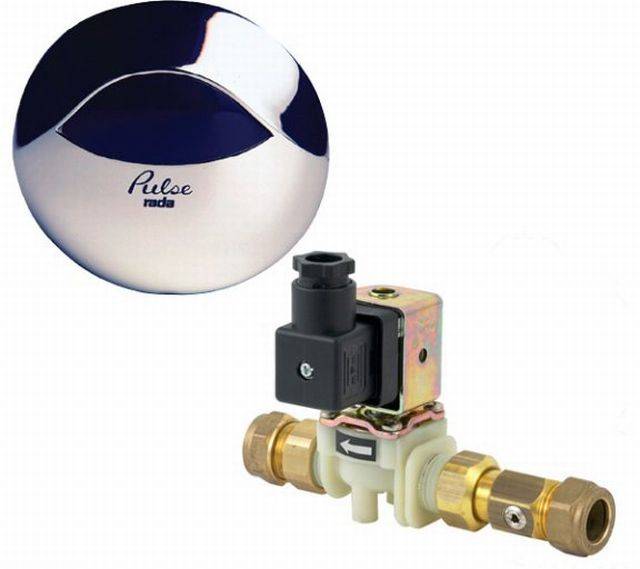

Rada Pulse 122 Operating System

Verified by manufacturer 6 days ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Water-control operating system.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For individual urinal flushing. To be used with Rada Pulse Control Box System.

Description

Water-control operating system.


Features and benefits:

  • Hygienic 'no-touch' infra red sensor.
  • Incorporates a solenoid valve.
  • The duration of the flow for each outlet can be individually pre-set, via the control box and programmer.
  • The solenoid valve is supplied complete with an integral isolator and filter.

General information

Color

Silver

Finish

Chrome

Material

Plastic

Polyamide

Length

22 mm

Width

84 mm

Height

84 mm

WarrantyDescription

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_75_50_76_58 Occupancy detectorsPrimary

Product range

Sports and Leisure
Education
Washrooms

Specification data - Occupancy detectors

Sensor type

Passive infrared.

Nominal voltage

12 V a.c. + 10% 50/60Hz.

Detection method

Presence.

Range

0–550 mm.

Remote setup/ override

By infrared controller.

Mounting

Surface mounted.

Ingress protection (minimum)

IP65.

Accessories

Not required.

Rada Pulse control box.

Rada Pulse hand held programmer.

Ambient temperature

0–40°C.

Bar

0.20–10 bar.

Solenoid valve.

Operation

Occupancy sensor.

  • When the sensor is activated, a signal is sent to the Rada Pulse control box, which may provide a pre-flush (where required).
  • The control box then waits for a period of inactivity before operating the solenoid valve, allowing water to flow to the outlet.
  • The duration of the flow for each outlet can be individually pre-set, via the control box and programmer.
  • The solenoid valve is supplied complete with an integral isolator and filter.


Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

  • CE approved
  • Water Regulations Advisory Scheme (WRAS) approved
